12a 12b, 13a 13b – Alumax W2 CW User Manual
Page 18
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
12a
12b
INSTRUCTION MANUAL
18

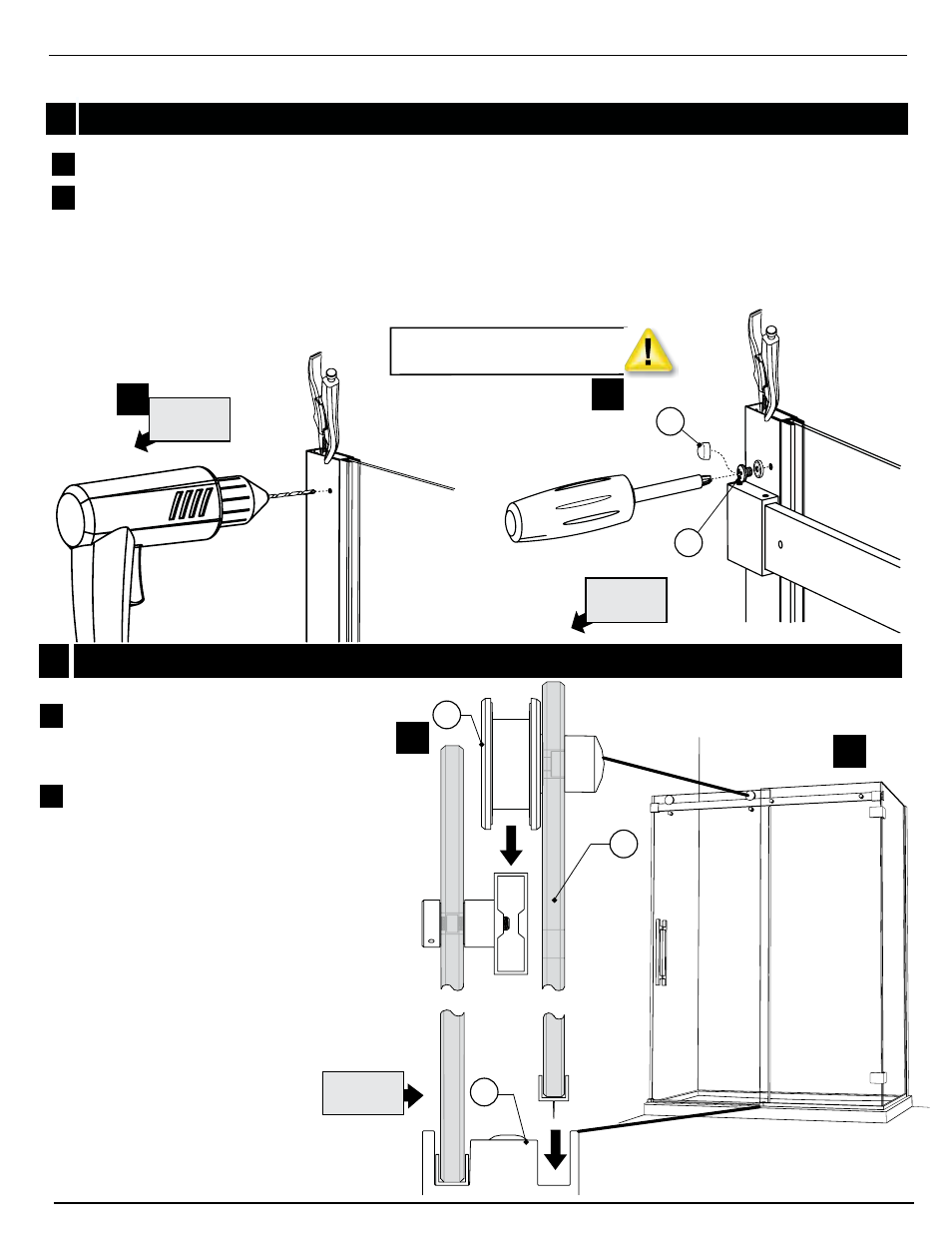

Drill through wall jamb holes with 1/8” drill bit, to perce through the expander. (x3)
Screw 3/4” screws (25) through holes to hold expander and wall jamb together in place (x3). Cover all screws with screw caps (28).
12 WALL JAMB AND EXPANDER
12a
12b
10
Install door panel (10) by aligning the rollers
(13) on running rail (14) and by aligning the
door panel (10) with the back channel of bot-
tom guide (21).
Slide door to insure a smooth stable glide.
DOOR PANEL INSTALLATION
21
13
13
13a
13b
INTERIOR
SHOWER SIDE
25
28
13a
13b
SAME PROCEDURE FOR RETURN PANEL WALL
JAMB AND EXPANDER
