Alumax W2 CW User Manual
Page 12
INTERIOR
SHOWER SIDE
6a
14
18
15
6b
16
6c
6d
INTERIOR
SHOWER SIDE
14
12
INSTRUCTION MANUAL
12
6

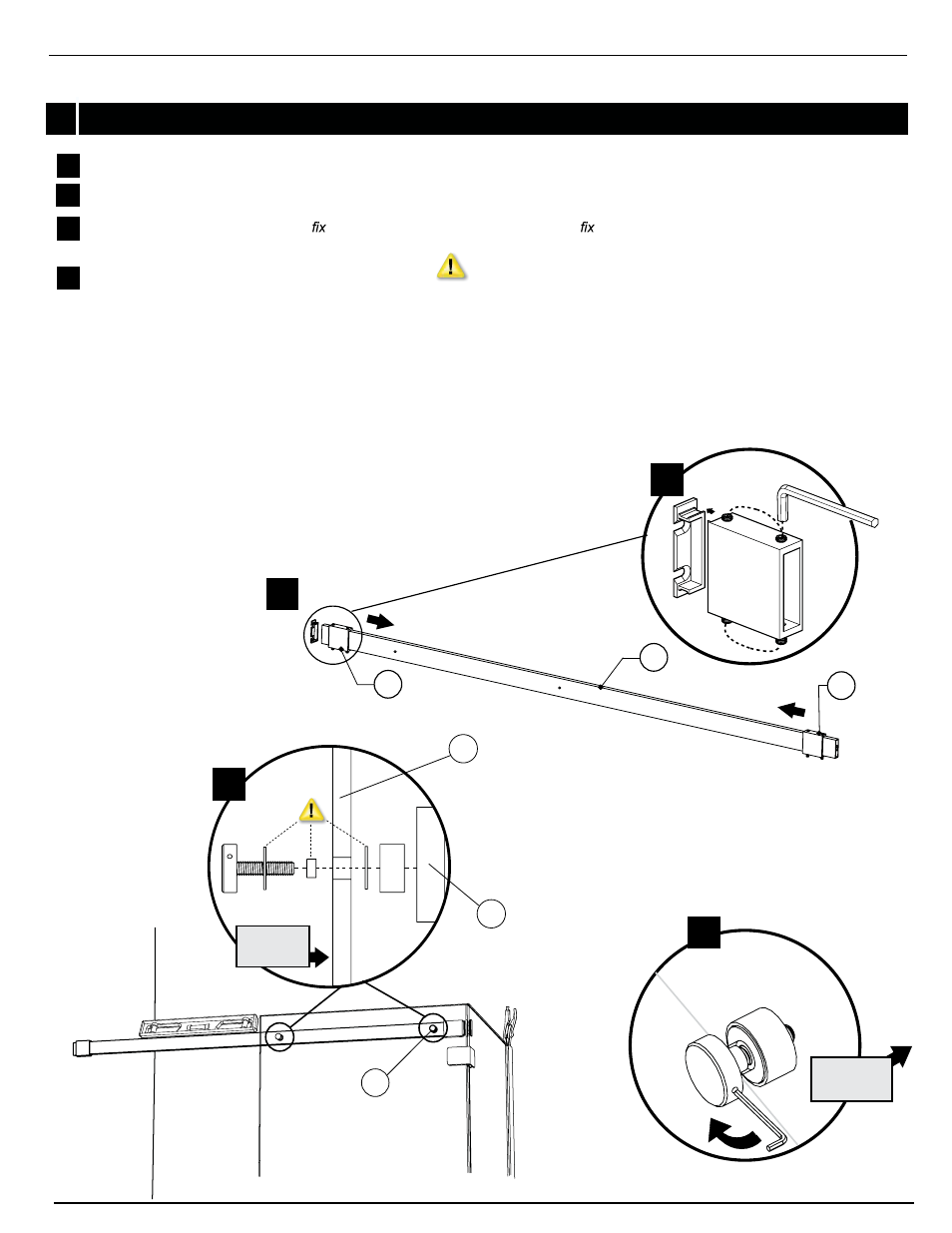

RUNNING RAIL INSTALALTION
Unfasten set screws (x4) from wall bracket (15). Then remove back plate from the wall bracket and set aside.
With back plates of the wall and glass brackets removed, slide the wall brackets away from the ends of the running rail (14)
Align running rail holes with holes in panel. Install glass fasteners (16) to join panel (12) and rail (14). Be sure to place
gaskets between all contact with glass and metal parts.
Fasten with hex 3mm key.
6a
6b
6c
6d
