16 DOOR RECEIVER INTALLATION

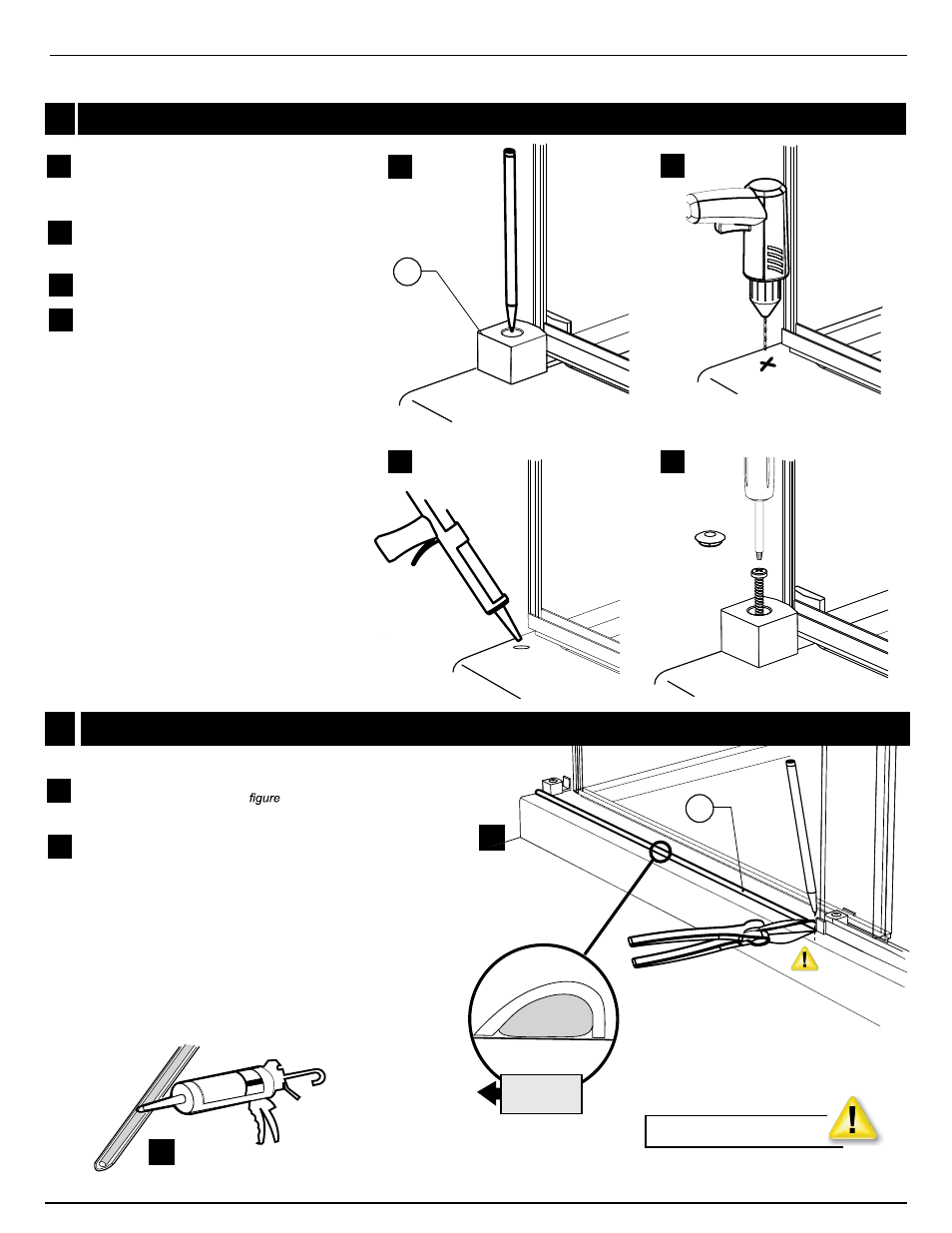

Place door receiver (22) against wall, place so
that the door panel slides smoothly into
receiver. Mark hole location.
Remove door receiver and drill in marked
location with 1/8” drill bit.
Insert one drop of silicone into hole.
Reposition and secure in place with provided
screw then cap with screw cap.
Place threshold (9) between return panel u-channel
and bottom guide as shown in 17a. Cut off any
excess length.
Apply silicon on the bottom of threshold as indicated
in 17b. Secure threshold in place.
