Alumax Transportation Latch User Manual
Installation instructions

EPH-N00-06084
1-11-99
INSTALLATION
INSTRUCTIONS
690/790 SERIES
TRANSPORTATION LATCH
Copyright © Alumax Bath Enclosures 1999. All rights reserved.
1

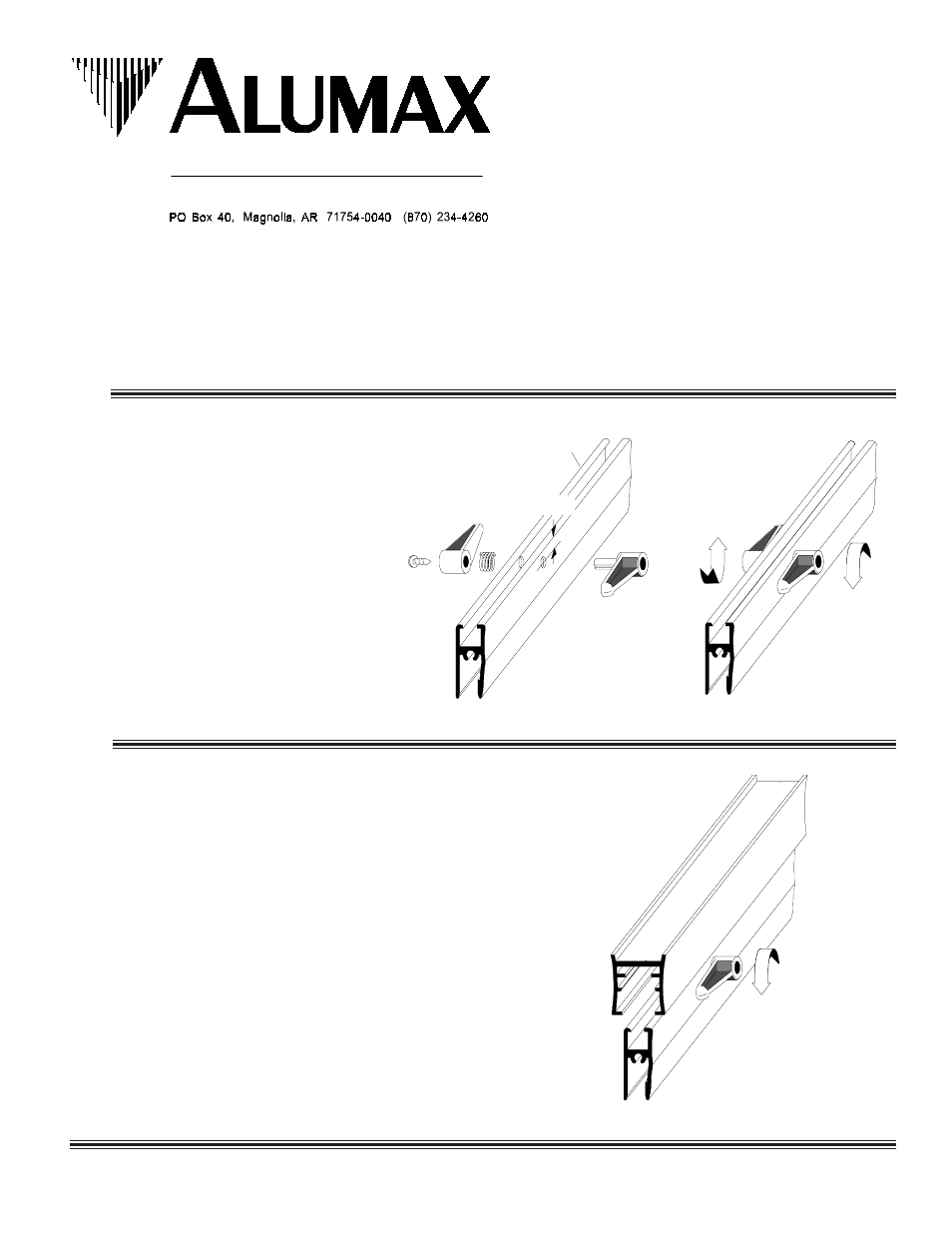

Open the door and drill a 1/4" hole
located horizontally in the center of the
top rail and vertically 3/16" from the
top edge. Insert the exterior handle
shaft into the 1/4" hole from the outside
of the shower door. Place the spring in
the cylindrical cavity on the interior
handle. Fit the interior handle on the
exterior handle shaft, rotated 180° in
the opposite direction (make sure the
ends of the handles point in opposite
directions). Secure with a #6 x 1/2" pan
head screw.
2
Close the door and rotate the exterior handle
90° downward causing the interior handle to
rotate 90° upward and contacting the inside header
surface. The interior handle will put pressure on
the inside of the header keeping the door closed
for transportation.
RO TATE 90
TO LO C K
°
B AT H E N C L O S U R E S
a p ro d u ct o f A lco a
DO O R PANEL
TO P RAIL
INTERIOR
EXTERIOR
3/16“
