Using TV without Audio/Video Input

Terminals (Australian Model)

Ru-100 Bsra

I Connection Rug

I Video Channel Selector

I TO TV Terminal

H FROM ANT. Terminal

Coaxial Cable with DIN-Connectors aaasa

g male

H female

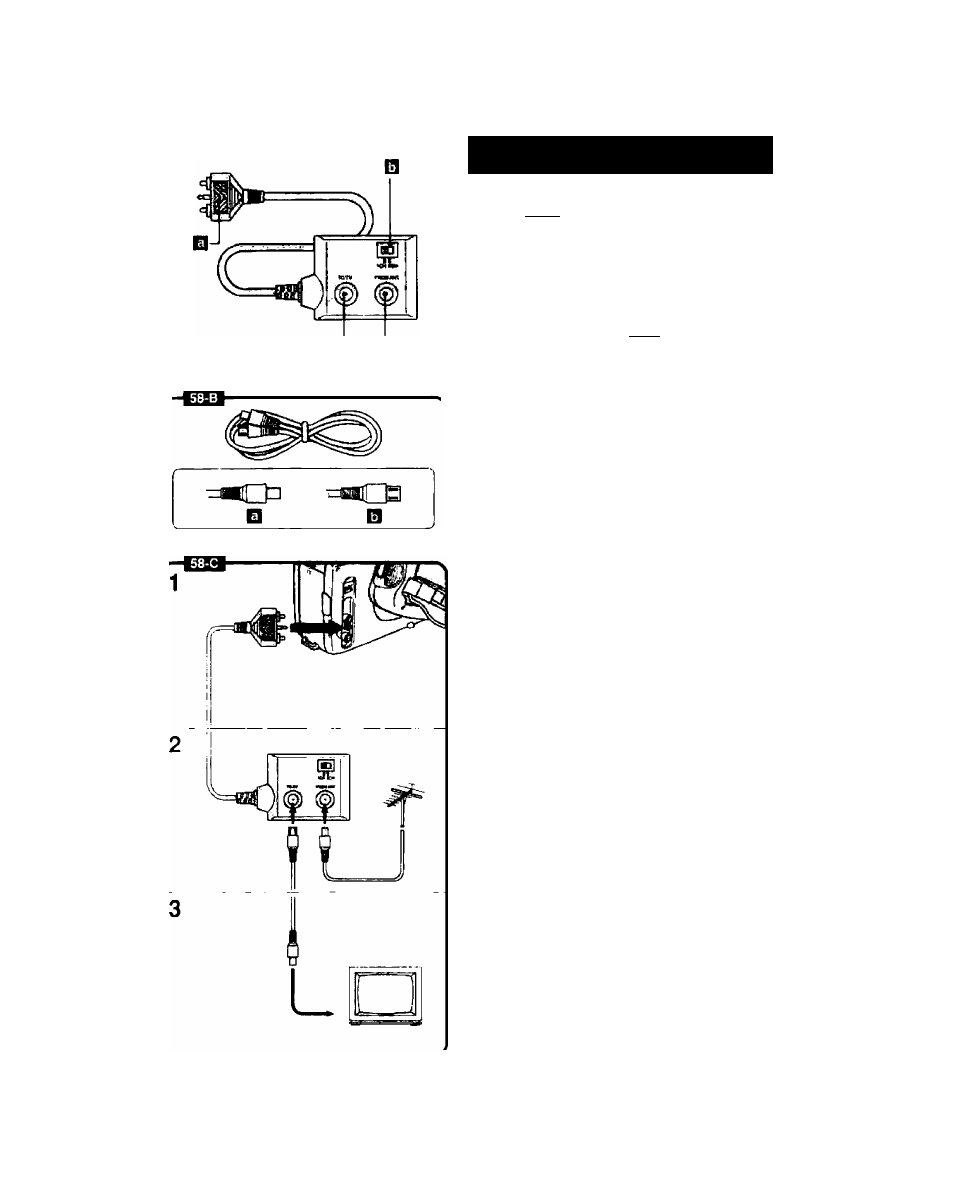

Connection Procedure

1. Connect RF Unit to camera.

2. Attach aerial cable to FROM ANT.

terminal, and connect female
connector to TO TV terminal of RF

unit.

• Please note the difference between 'male'

and lemale’ type DIN-connectors on coaxial

cable.

3. Connect male connector to aerial

input terminal of TV.

To View a Regular TV Programme

The RU-100 RF Unit has an automatic signal

selector which selects the signal from the video

camera whenever the camera is connected to the

RF unit and the power is turned on. To view a

regular TV programme, turn the camera off or

disconnect it from the RF unit.
