The RU-100 RF Unit is required in order to view
recorded video cassettes on a TV which does not
have audio/video input terminals. There are two
models of RU-100, one for Europe and one for
Australia. The connection and setting procedures
for the two models differ.
Using TV without AudioA^ideo Input
Terminals (European Model)

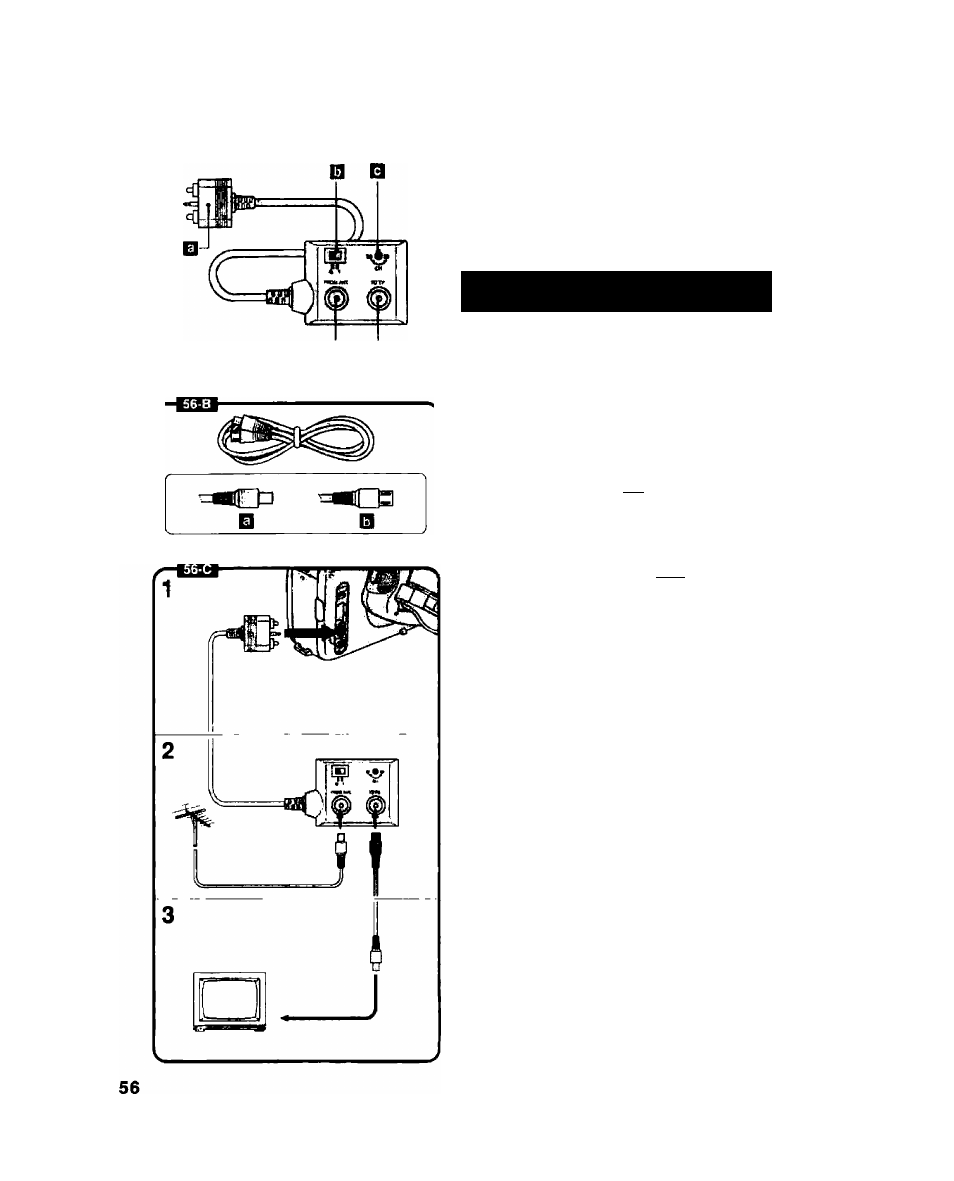

RU-100
B Connection Plug
B G/l Selector
H Video Channel Selector
O FROM ANT. Terminal
B TO TV Terminal
Coaxial Cable with DIN-Connectors aaija
B
male
B
female
Connection Procedure i^ia
1. Connect RF Unit to camera.
2. Attach aerial cable to FROM ANT.
terminal, and connect female
connector to TO TV terminal of RF
unit.
• Please note the difference between ‘male’
and female’ type DIN-connectors on coaxial
cable.
3. Connect male connector to aerial
input terminal of TV.
To View a Regular TV Programme
The RU-100 RF Unit has an automatic signal
selector which selects the signal from the video
camera whenever the camera is connected to the
RF unit and the power is turned on. To view a
regular TV programme, turn the camera off or
disconnect it from the RF unit.
