Playback Connection

• For connecting accessories supplied with your

camera see page 3.

To piay back a video cassette on a TV, use the

DOIOO DC Coupler together with the CA-100

Compact Power Adapter (or the optionai CB-110

Car Battery Adapter) or the BP-E^ Battery

Pack as a power source.

• Playback connection depends on whether or

not the TV is equipped audio/video input

terminals or SCAOT terminal.

Using TV with Audio/Video Input

Terminals

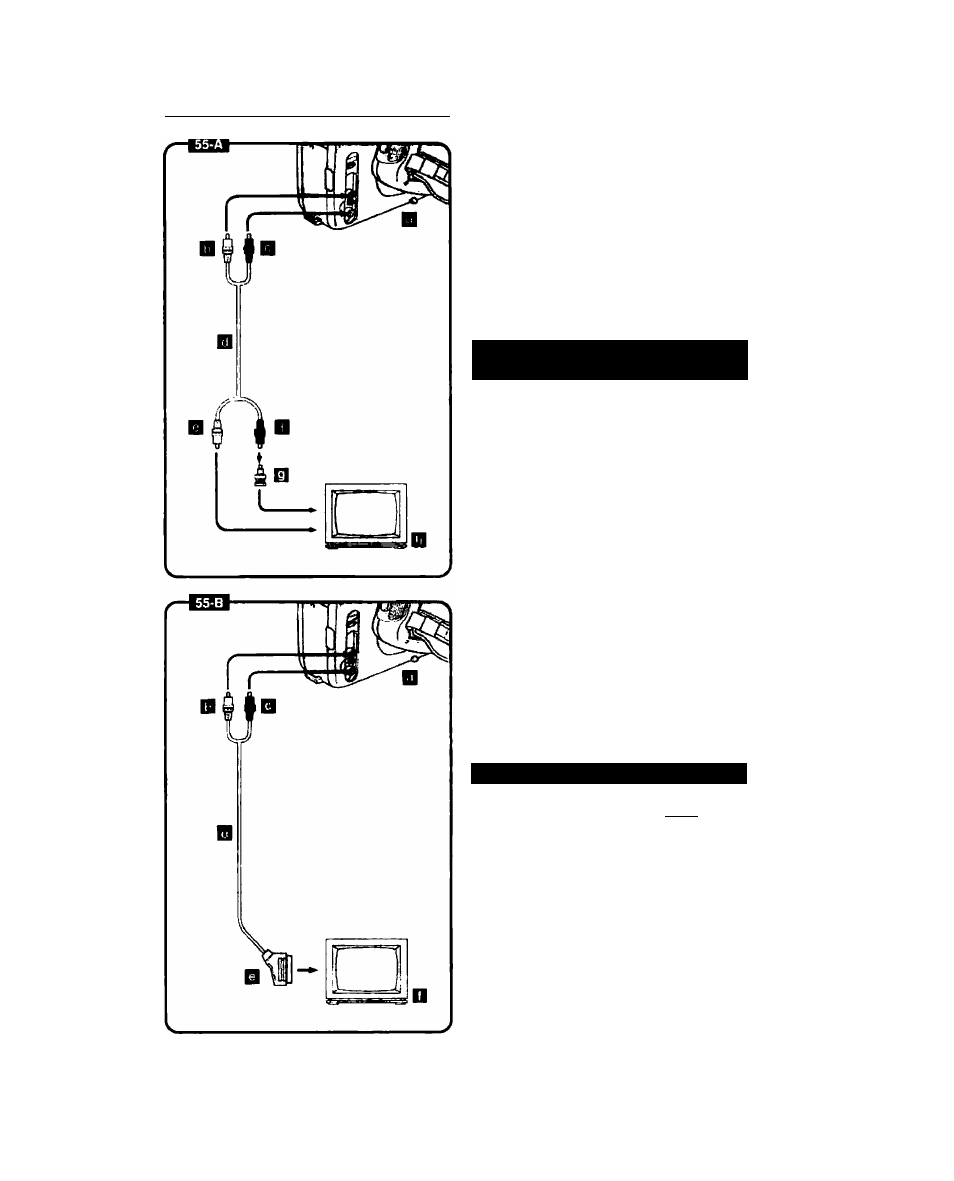

Connection Procedure

You need the C-150 AV Cable and a power

source for playback on a TV that has audio/video

input tenninals.

• You can also use a TV connected to a VTR

with audio/video input terminals.

Ц Press GRIP UNLOCK button and rotate the grip |

upward.

To Audk) Output Temtlnal (black)

To Video Output Terminal (yellow)

C-150 (video=yalk>w, audio=white)

В To Audio Input Terminal

I To Video Input Terminal

Ц BNC Adapter*

■ TV: Set TV/VIDEO selector to VIDEO

For TV or VTR which has a BNC-type video input,

use a commercially available BNC plug adapter for

connection.

Using TV with SCART Terminal

Connection Procedure Rgil

You need the PC-150 SCART Cable and a power

source for playback on a TV that has SCART

terminal.

I Press GRIP UNLOCK button and rotate the grip

upward.

I To Audio Output Terminal (black)

H To Video Output Terminal (yellow)

■

PC-150 SCART Cable

I To SCART Terminal

■
