KTM DC CONVERSION HARNESS
INSTALLATION
INSTALLATION CONTINUED:
STEP 10: Zip-Tie the harness to the frame as needed using the remaining ties.
010-ELV-43
KTM DC HARNESS
Tech Support: 360-687-4530
[email protected]
STEP 11: Install the stator, flywheel, and regulator/rectfier according the instructions provided with the stator kit.
STEP 12: When the stator, flywheel, and reg/rec are installed, connect the positive(+) battery wire and test the system. Once the
installation is verified, re-install the left air box cover, gas tank, head light or number plate, and seat.

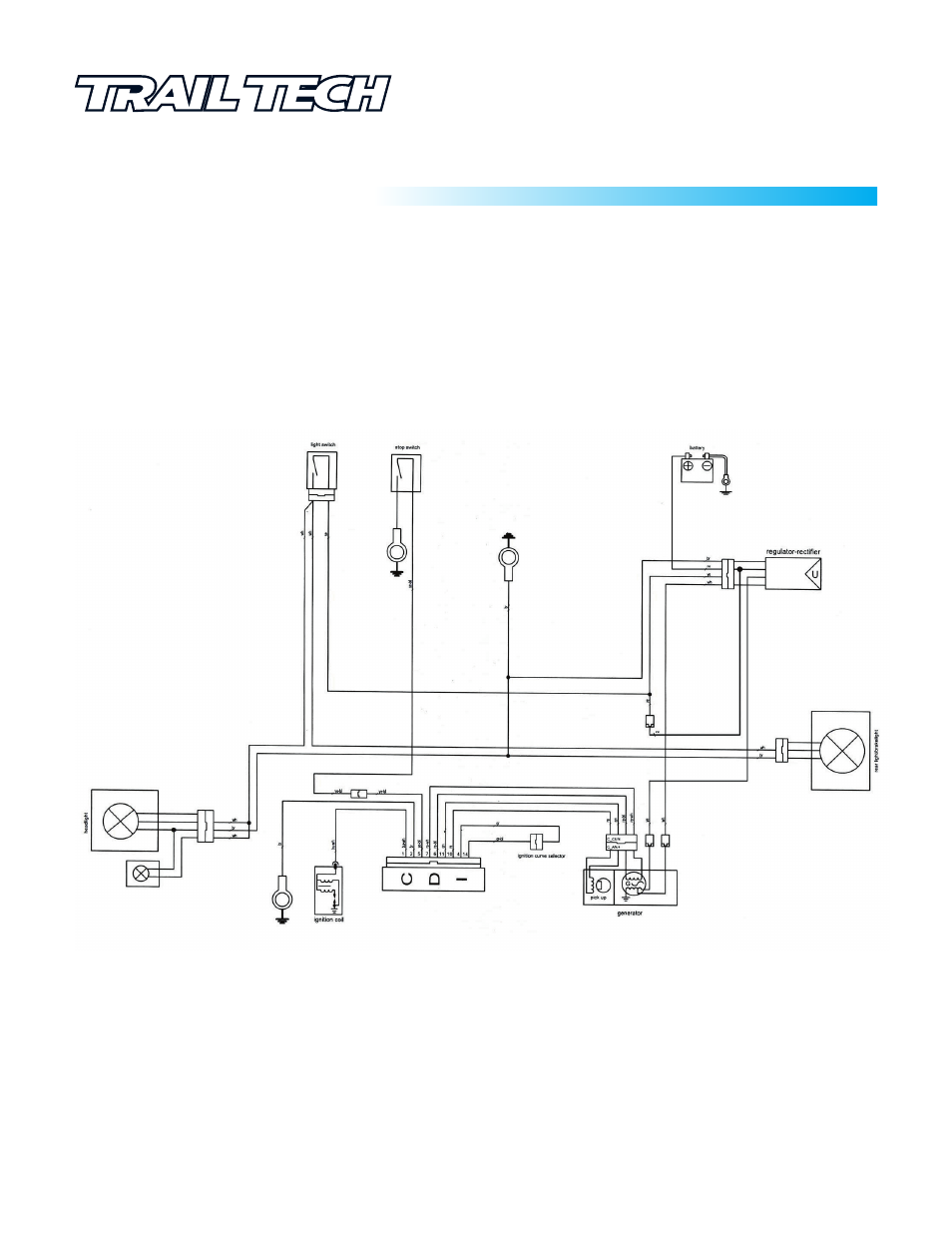

Wiring Diagram
Finished.
