Trail Tech KICKSTAND 5104-00 - Manual

5102-00/5103-00 KICKSTAND INSTALLATION
2007-2015 HONDA CRF150R/RB
010-ELV-135
TRAIL TECH KICKSTANDS
Tech Support: 360-687-4530
[email protected]
HONDA CRF150R/RB 2007-2015
5102-PK CONTENTS:
A. M8x30mm BCHS.

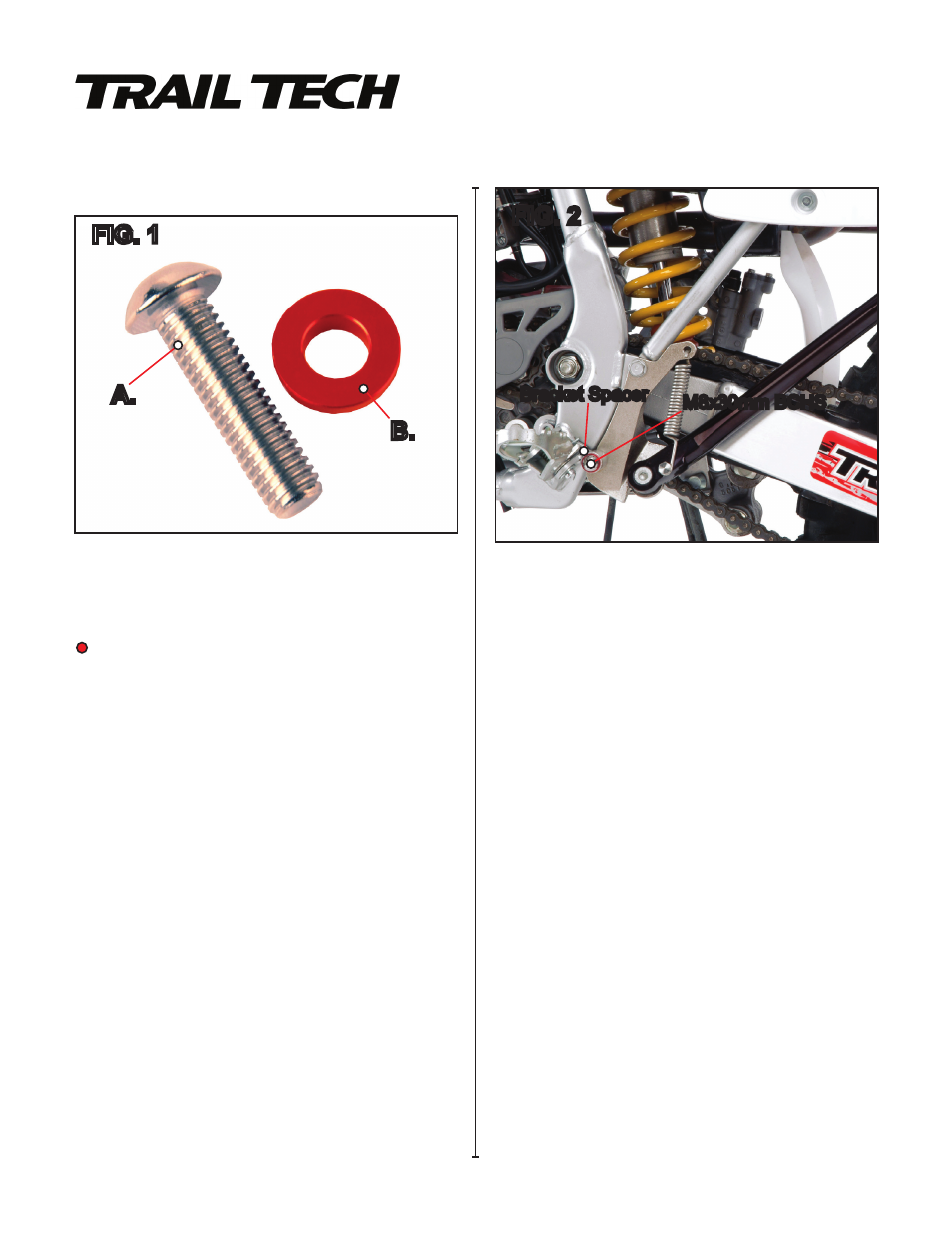

FIG. 1
B.
A.
Kickstand Installed
FIG. 2
M8x30mm BCHS
Bracket Spacer
1. Remove stock sub-frame fastener on shifter side of
the bike.
2. Insert provided bracket spacer (Fig. 1B) into the
front side of kickstand bracket as shown in Fig. 2.
3. Re-install stock subframe fastener through provided
Trail Tech kickstand bracket.
4. Insert provided M8x30mm (Fig. 1A) BHCS through
provided shoulder bracket spacer & Trail Tech
kickstand bracket.
Note: Tighten both fasteners to manufacturer torque
specification.
LIMITED WARRANTY
TRAIL TECH INC. WARRANTS TRAIL TECH KICKSTAND PRODUCTS TO BE FREE
FROM DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USE AND IF
PROPERLY INSTALLED FOR A PERIOD OF SIX MONTHS FROM DATE OF PURCHASE.
IF FOUND TO BE DEFECTIVE AS MENTIONED ABOVE, IT WILL BE REPLACED OR
REPAIRED. THIS SHALL CONSTITUTE THE SOLE REMEDY OF THE PURCHASER
AND THE SOLE LIABILITY OF TRAIL TECH INC. TO THE EXTENT PERMITTED BY
LAW, THE FOREGOING IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OR
REPRESENTATIONS WHETHER EXPRESSED OR IMPLIED, INCLUDED ANY LIMITED
WARRANTY OF MERCHANTABILITY OR FITNESS. IN NO EVENT SHALL TRAIL TECH
INC. BE LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES.
IMPORTANT: WEAR EYE
PROTECTION WHEN HANGING
SPRINGS!
Note: After every ride it is important to check your kickstand
thoroughly for the following:
• Loose or damaged bolts
• Bent or damaged kickstand leg or bracket
• Damaged spring
Damaged or broken parts can result in serious injury! If any part of
your stand has become damaged do not ride the machine! Contact a
factory trained technician or Trail Tech directly for service or repairs.
5102-PK Parts Kit
HONDA INSTALLATION:
