Step 1 step 2 step 3

KICKSTAND INSTALLATION

2012-2014 KTM 125/150/250 SX

2011-2014 KTM 250/350 SX-F 2013-2014 KTM 450 SX-F

010-ELV-161

TRAIL TECH KICKSTANDS

Tech Support: 360-687-4530

STEP 1

STEP 2

STEP 3

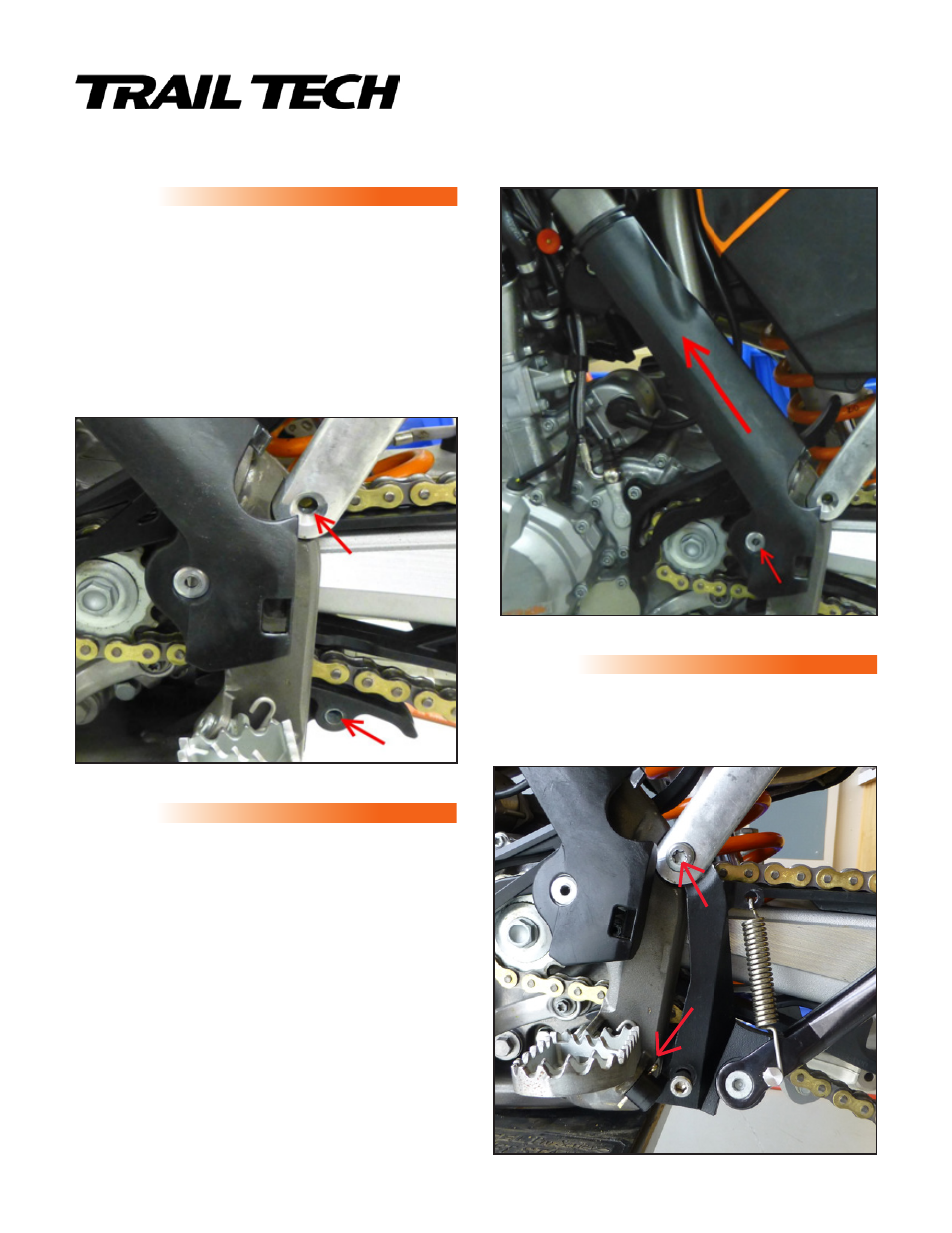

Remove cotter pin and washer from left foot

peg pin. Rotate foot peg pin so cotter pin hole is

aligned vertically. If bike has plastic frame guard,

unbolt guard and slide upward out of the way.

(Figure 1)

Remove bolt from front lower chain guide. Leave

chain guide in place. Remove bolt from upper sub-

frame arm. (Figure 2)

1. Slide kickstand bracket ear between sub-frame

arm and bike frame. Slide kickstand bracket boss

onto foot peg pin.

2. Slide supplied cotter pin through small hole in

kickstand bracket boss and through foot peg pin

hole. Rotate foot peg pin as necessary to align

holes. (Figure 3)

Figure 1

Figure 2

Figure 3
