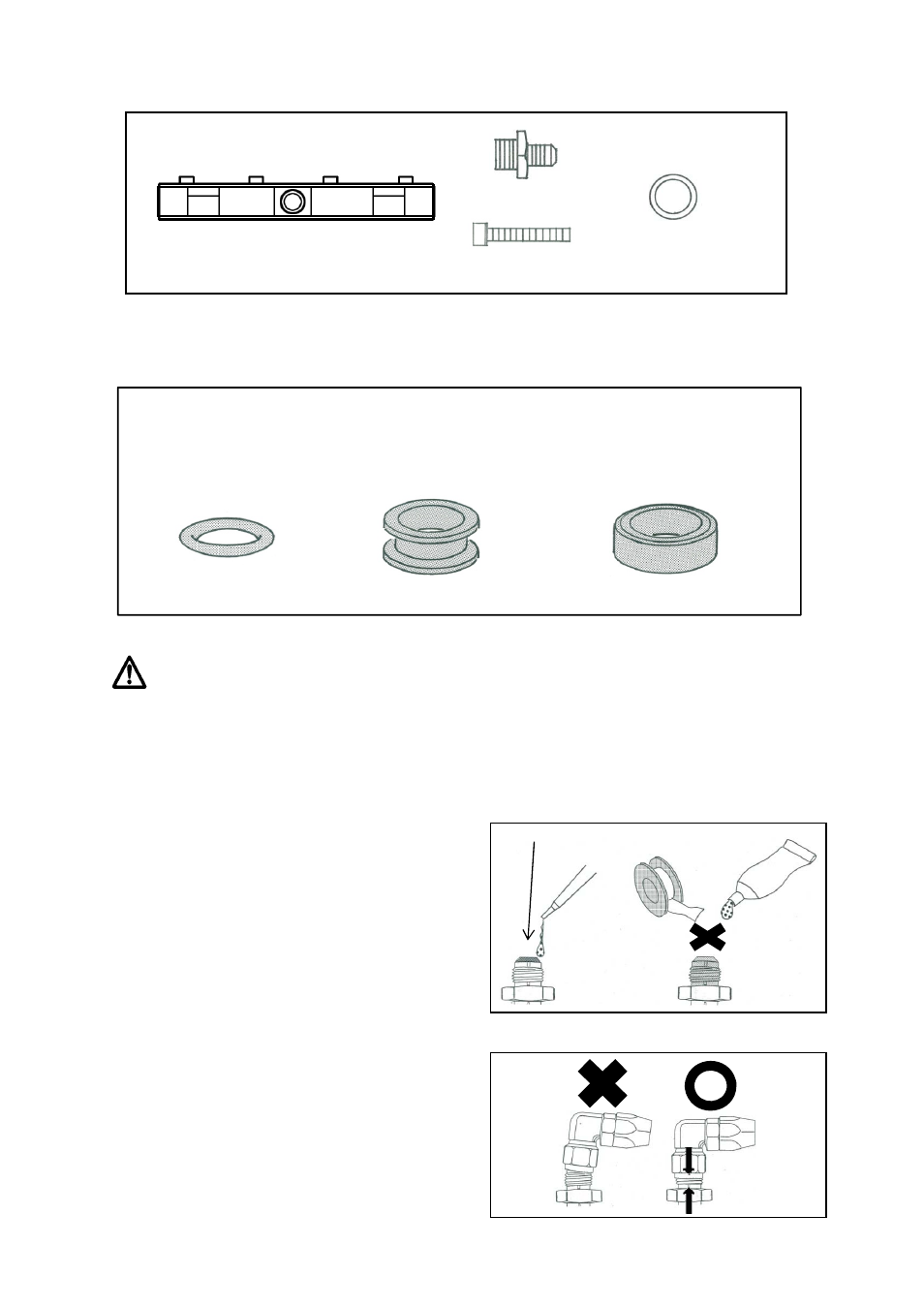

KIT CONTENTS
Below is the contents of this kit, with the quantity listed in the brackets ().
REQUIRED TOOLS
These tools are the bare minimum required for the job.
・General Engine Maintenance Tools ・Workshop Service Manual ・Sealing Tape
・Fuel Pressure Guage (PT1/8 Joint connector)・Torque Wrench ・Silicon Grease ・Fuel Line ※ ・Fuel Pump
・Adjustable Fuel Pressure Regulator
・ Injector rubber parts (6pcs)
O-Ring (MD614813) Seat (MD614805) Insulator (MD087060)
※ Use what is required to suit the positioning of your setup
Delivery Pipe (1)
Adapter (3)
8mm Bolt (2)
O-Ring (3)
9
※ Use what is required to suit the positioning of your setup.
CAUTION: FITTING INSTALLATION
The aluminum connectors can be easily damaged, take care when tighting the aluminum fittings.
■ The hose connection kits that are made of Aluminum, can be easily damaged, take care when tighting these parts.
tighting these parts.
■ The hose connection parts of the kit are standard AN screws.
※ Standard AN → normal Air Force / Navy
■ The surface of the AN screw tip is sealed.
Do not apply a sealant to the threaded portion
& the tapered surface, do not use sealing
tape. Take care not to scratch and get dirt
onto the tapered surface. These points can
cause a fuel leak.
■ Apply a small amount of engine oil to the
tapered surface, to help lubricate when
tightening the AN screw.
Without lubrication the tapered portion can
get scratched and cause fuel leaks.
■ Perform the following steps when tightening
the AN screws.
① Tighten all the way by hand.
② Use a tool for the final tightening.
Tighten the screw with the tool without
excessive force, to prevent damaging the
threaded portion.
Screw Tip
Engine Oil
Seal Tape
Sealant
