FUEL RAIL INSTALLATION
(1) Install the O-ring that comes with the adapter supplied assembled to the delivery pipe. (3 places)
In this case, install by applying a silicone grease to O-ring.
TORQUE: 24.5N・m (2.5kgf-m)
Coat the O-Rings with silicon grease. If not, the O-Rings would get damaged and then gasoline
would leak.

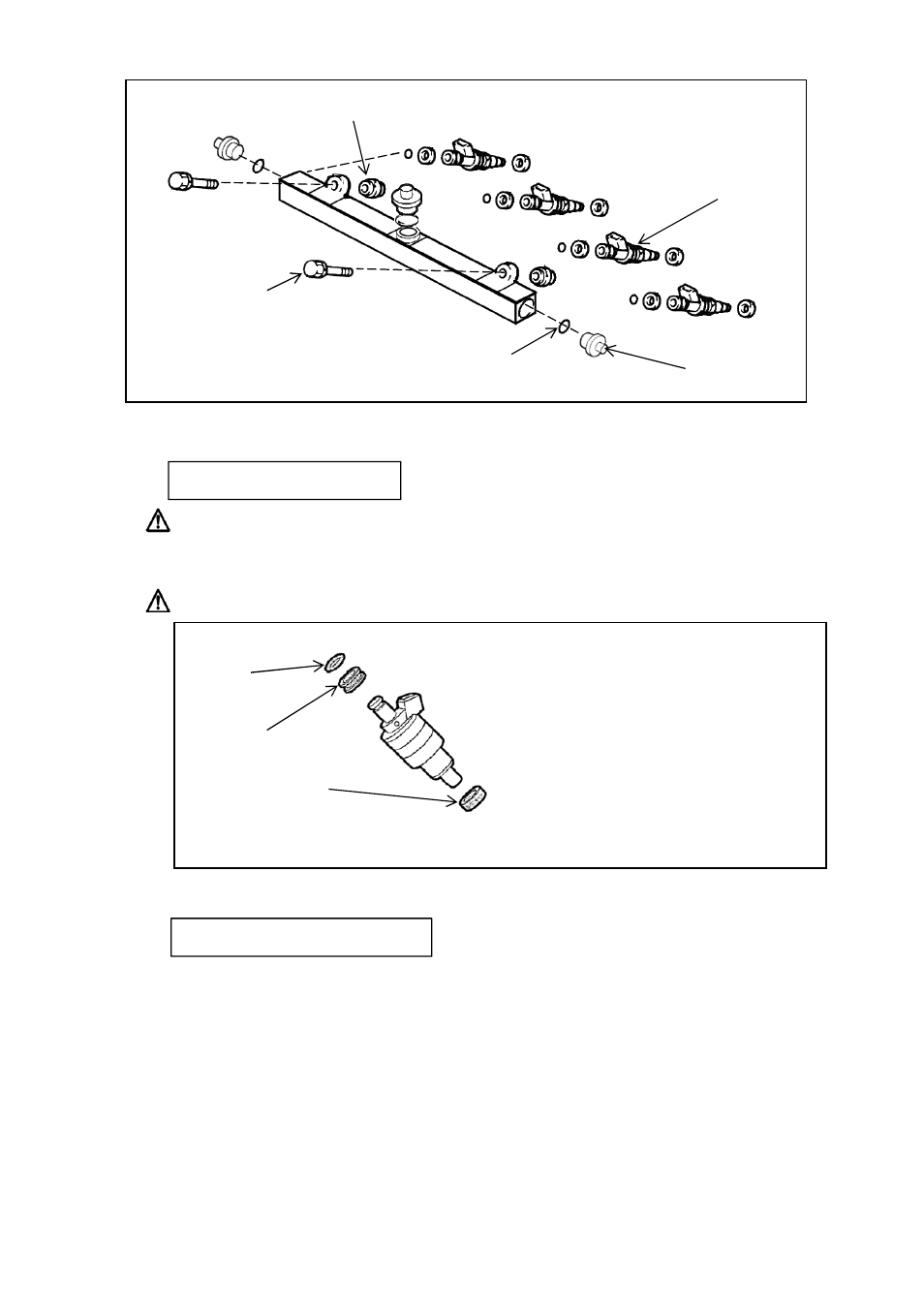

(2) Install the injectors onto the fuel rail.
Take care when fitting the Injectors to the Fuel Rail.
Spacer (Use Stock)
Bolt
O-Ring
Adapter
Injector
11
・ Replace everything, including the injectors,
replace with new parts.
・ Handle the O-rings with bare hands.
DO NOT use gloves that have lint, it can
cause fuel leaks.
・ Coat the O-Rings with silicone grease.
・ Insert into the mounting hole in a straight
motion, do not rotate the injectors after
fitting.
(3) Attach the Fuel Rail with the supplied bolts.
TORQUE: 16～21N・m (1.6～2.1kgf-m)
O-Ring
(MD614813)
Seat
(MD614805)
Insulator
(MD087060)
Connectors facing up
