3. INSTALLING THE TOMEI EXHAUST MANIFOLD

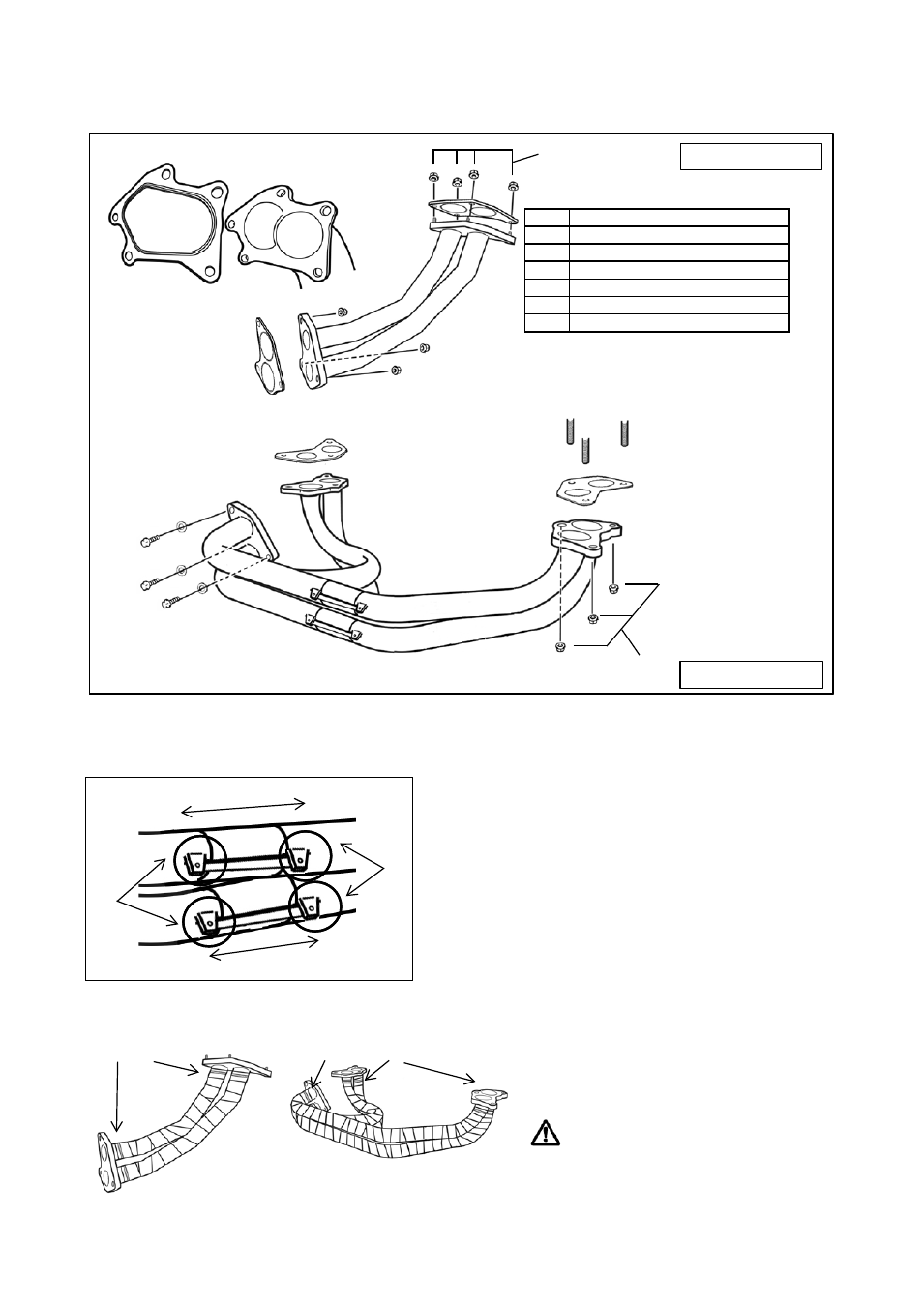

【Installation position chart of each bolt gasket】

The installation process of the supplied bolts and gaskets is shown as below.

【INSTALLATION PROCEDURE】

1. Adjust the position of the exhaust manifold.

The support pipe and the exhaust manifold are temporarily stopped

to the turbo-charger and the cylinder head respectively.

And, Adjust it in the middle insertion part of the manifold when

the manifold is not good each other.

・Loosen the bolt (left chart ①) in the middle of the manifold

there is an insertion part in four places.

・Adjust the insertion part (left chart ②) by the slide adjustment.

・Tighten the loosened bolt after it is adjusted.

(torque T=5.8 6.8N･m (0.6 0.7kgf-m))

・Check fitting once remove from vehicle.

2. Bandage the attachment by wrapping it around the Exhaust Manifold and Support pipe. Secure it on by using the

Bandage-band supplied in the kit.

【REFERENCE】

・Wet the bandage with water before rolling it,

& apply it after squeezing the water out.

Cuts any unnecessary length
off with nippers etc. when

there is an excess length

after securing the bandage

bands. Please excersize

caution to prevent any cuts

and/or injuries.

Nut (normal use)

T=35N・m (3.6kgf-m)

* Spread bolt smooth paste on the
the threads to prevent seizures.

Nut (normal use)

T=30N・m (3.1kgf-m)

⑤

②

①

④

②

⑥

①

②

Bandage Band

④

③※

※

③※

①

Support Pipe Ｔ/C Gasket

②

Manifold Support Pipe Gasket

②

Header Manifold Gasket

③

Bolt M10 x 1.5

④

Washer

⑤

Nut

⑥

T/C- Gasket for the Cat
