1. REMOVING THE STOCK ASSEMBLY.
This manual only provides the simple instructions. For more details please refer to the vehicles
official service manual.
1. Disconnect the battery's negative terminal.
2. Remove the center exhaust pipe.
3. Remove the strut tower bar.
4. Remove the undercover protector.
5. Remove the lower steering shaft.
※Use a paint pen to mark the correct location so as to prevent misalignment later when you reconnect it.
6. Remove the exhaust manifold.
2．TOMEI EXHAUST SYSTEM INSTALLATION

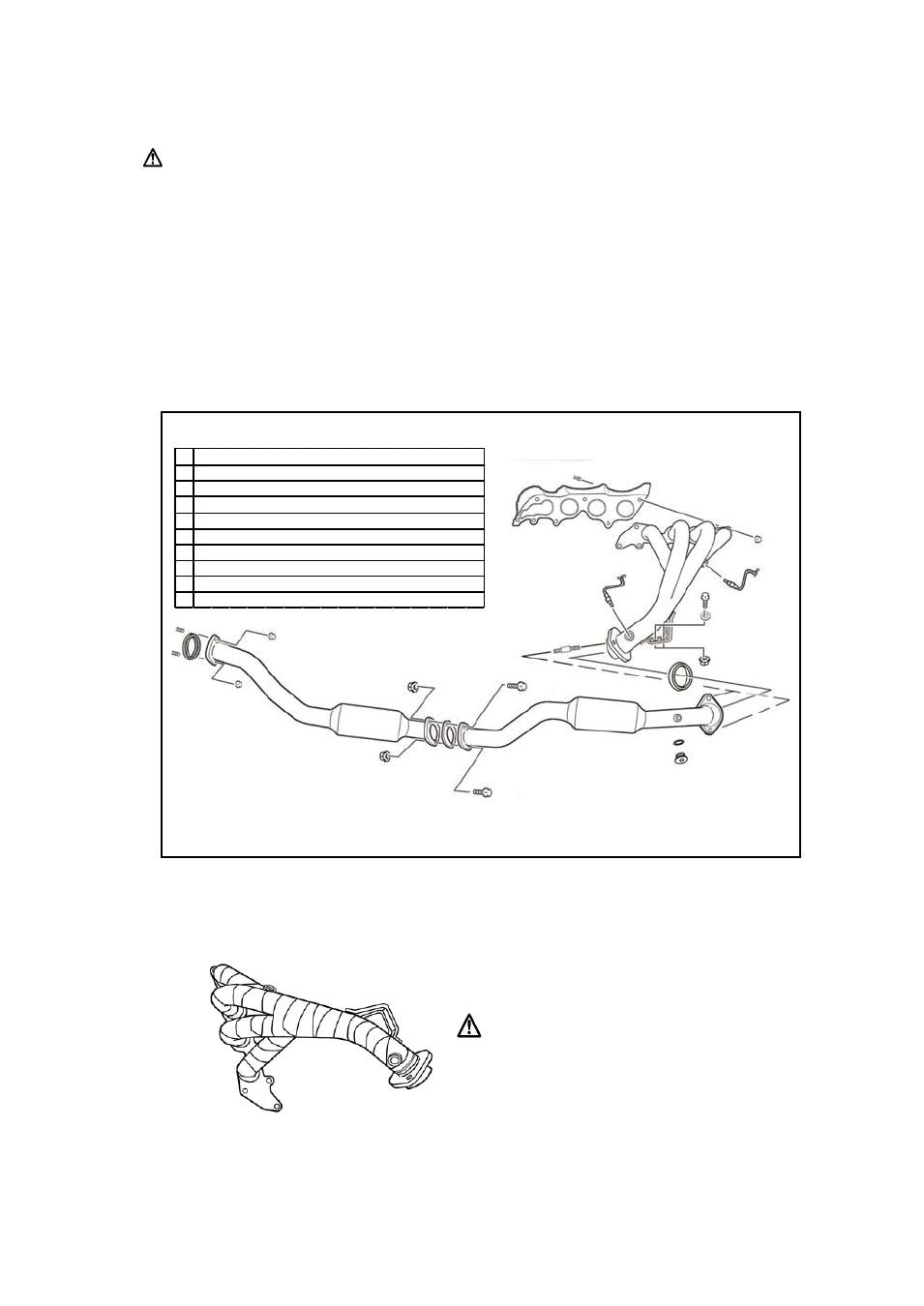

【Illustration of the mounting position of each item】
The installation of each part are shown below with the torques specs as well.
(Nuts, Bolts and the stock gaskets are not specified.)
※ These items are for the Metal Catalyzer only
※Torque Specs : T=35N・m (3.6kgf-m).
Apply the bolt smooth paste to prevent the parts sticking to each other.
【INSTALLATION PROCEDURE】
1. If you want to use the Thermal Bandage wrap, now is the time to use it.
Wrap your headers with the bandage as shown.
【REFERENCE】
・Soak the bandage in water to soften, then squeeze
excess water prior to wrapping the header.
After completely wrapping the header with the
bandage, cut off any unwanted excess with nippers.
Take care as to prevent any injuries.
7
①
※
⑩
⑩
O2 Sensor
O2 Sensor
⑥※
⑦
⑨
⑤
④
⑧※
⑧※
②
⑨
⑨
③ ※
※
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩ EXHAUST MANIFOLD GASKET
CATALYZER PIPE - BACK PIPE GASKET
BACK PIPE - MUFFLER GASKET
BLIND PLUG M18 (FOR THE CATALYZER KIT)
COPPER WASHER (FOR THE CATALYZER KIT)
CAP BOLT M10
Disc Springs M10
Flange Bolt M10
Flange Nut M10
Cable Tie
