Installation – Tomei Powered OIL PAN BAFFLE PLATE User Manual
Page 6

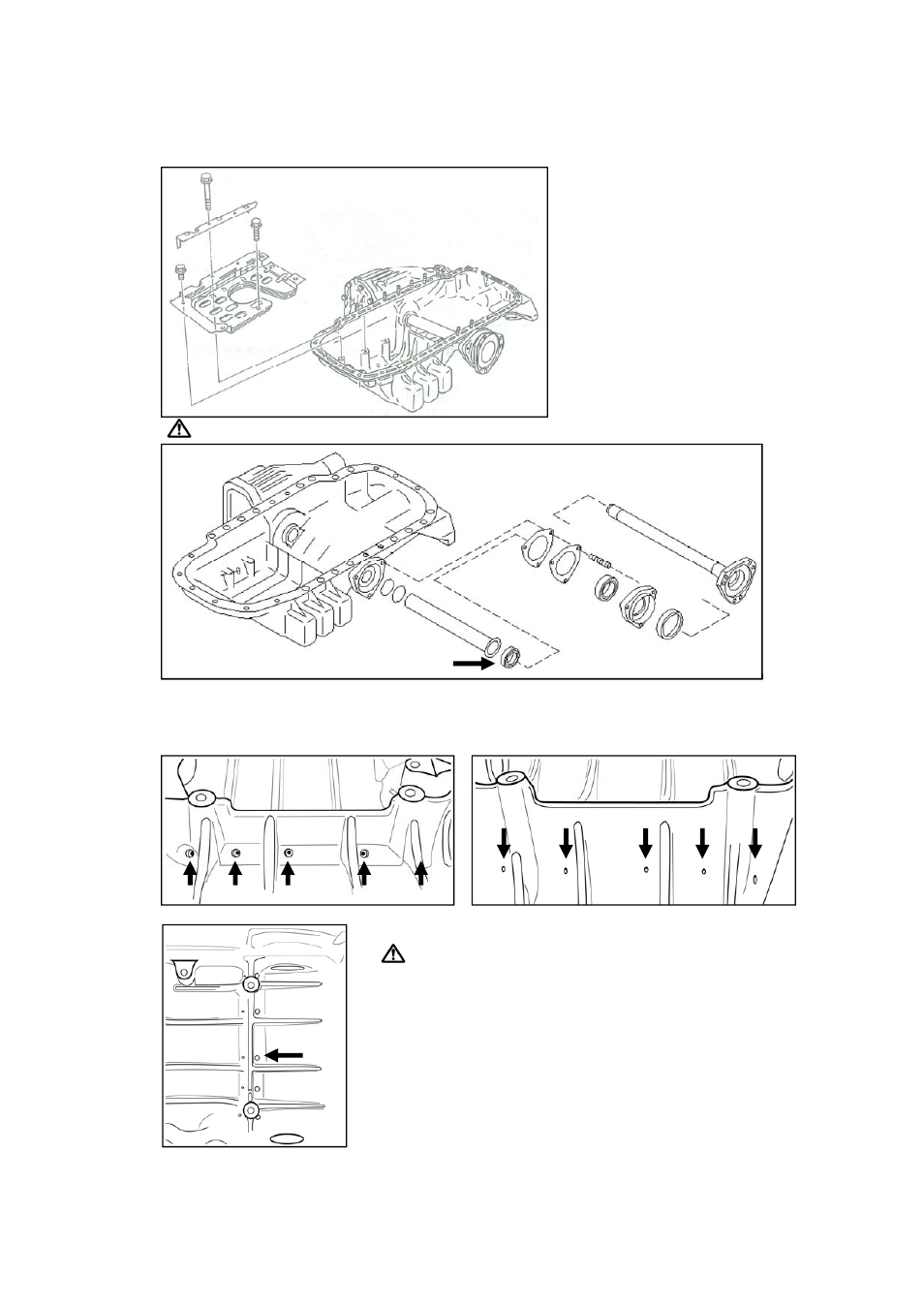

INSTALLATION
1. Remove the stock baffle plate.
Exchange the drive shaft oil seal.
Drive Shaft Oil Seal
6
2. Drill a 5mm hole in the oil passages in the stock oil pan, from the rear side to the front side.
This is the view from the oil passage side
This view is from the front of the oil passage side.
Once the work has been completed, please throughly clean the oil
of any unwanted material.
3. Install the upright baffle plates
Front Side
Rear Side
Drill direction
6
