Page 15

13
KRYOS
Line 3: Displays the temperature indicated by thermocouple #1 and #2. If either
thermocouple is disabled by the user through the menu system, it is no longer
displayed on the front panel. If both thermocouples are disabled by the user,
line 3 is blank.
Line 4: Used to annotate (or label) the soft-key buttons and to provide information
about the valve and the lid status. In the center of the line, a rotating “baton”
provides a visual indication that the control is running and functioning
properly.

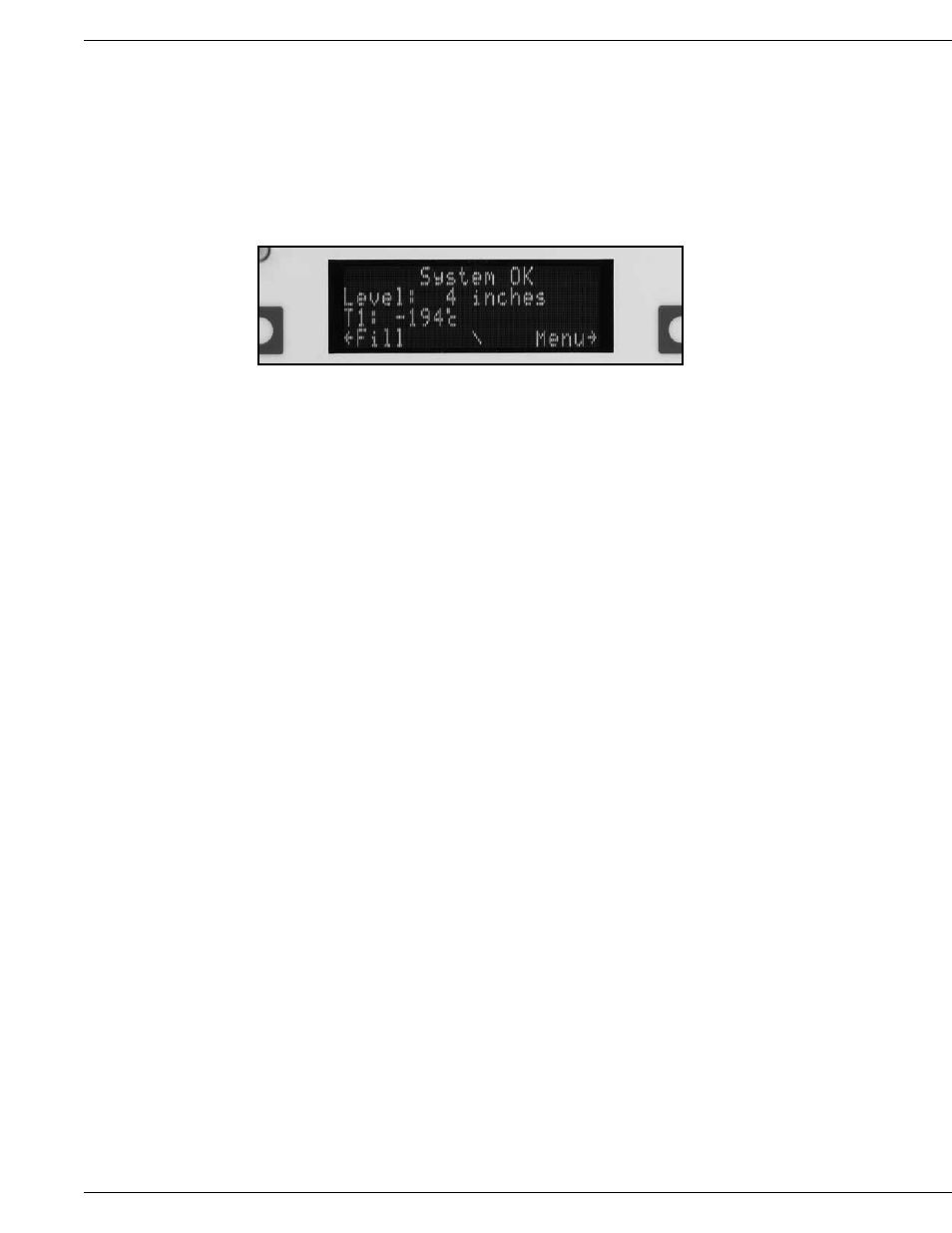

Figure 6.0 Main Display Screen
The Menu System
Pressing the soft-key labeled MENU on the front right side of the control will access
the menu system. Choose a menu option by pressing the appropriate number of
your menu choice. If more menu choices are available than will fit on one screen
(more than 4 choices in this menu section), the left-hand soft-key button will give the
“More” choice. Pressing this button will give the user the additional menu choices.
A shortcut is available to get to the proper menu choice by pressing the appropriate
number button. The menu choice need not be visible on the screen to select it.
When the menu is accessed, all control functions cease until the control returns to
the main status screen. Therefore, if a fill is occurring and the menu is accessed,
the solenoid valve will close until the menu system is exited and the control is again
displaying the main screen. If the menu system is accessed but not interacted with
for 3 minutes, it will automatically revert to the main screen and all functions will
resume.
Please note that the menu system can vary slightly depending on the configuration
of the control. Menu choices will be included or excluded depending on the selected
features in the control. This is illustrated in the menu system when the 4-sensor or
the 8-sensor probe assembly is being used. The START FILL and STOP FILL sensor
must be physically set when the 4-sensor probe is in use, so the START FILL level and
STOP FILL level menu items are not displayed. When the control is operated with the
8-sensor assembly, the user can assign the START FILL and STOP FILL levels with the
control key pad without physical intervention to the sensors in the storage chamber
unless you want to change from vapor phase storage to liquid phase storage.
(See Menu Table 1.0 on page 14 of this manual.)
