Qmark SSHO Smart Series - High Out-Put Digital Wall Heater - Manual (Page 7)

7
1
2
8
11
15
9
10 13

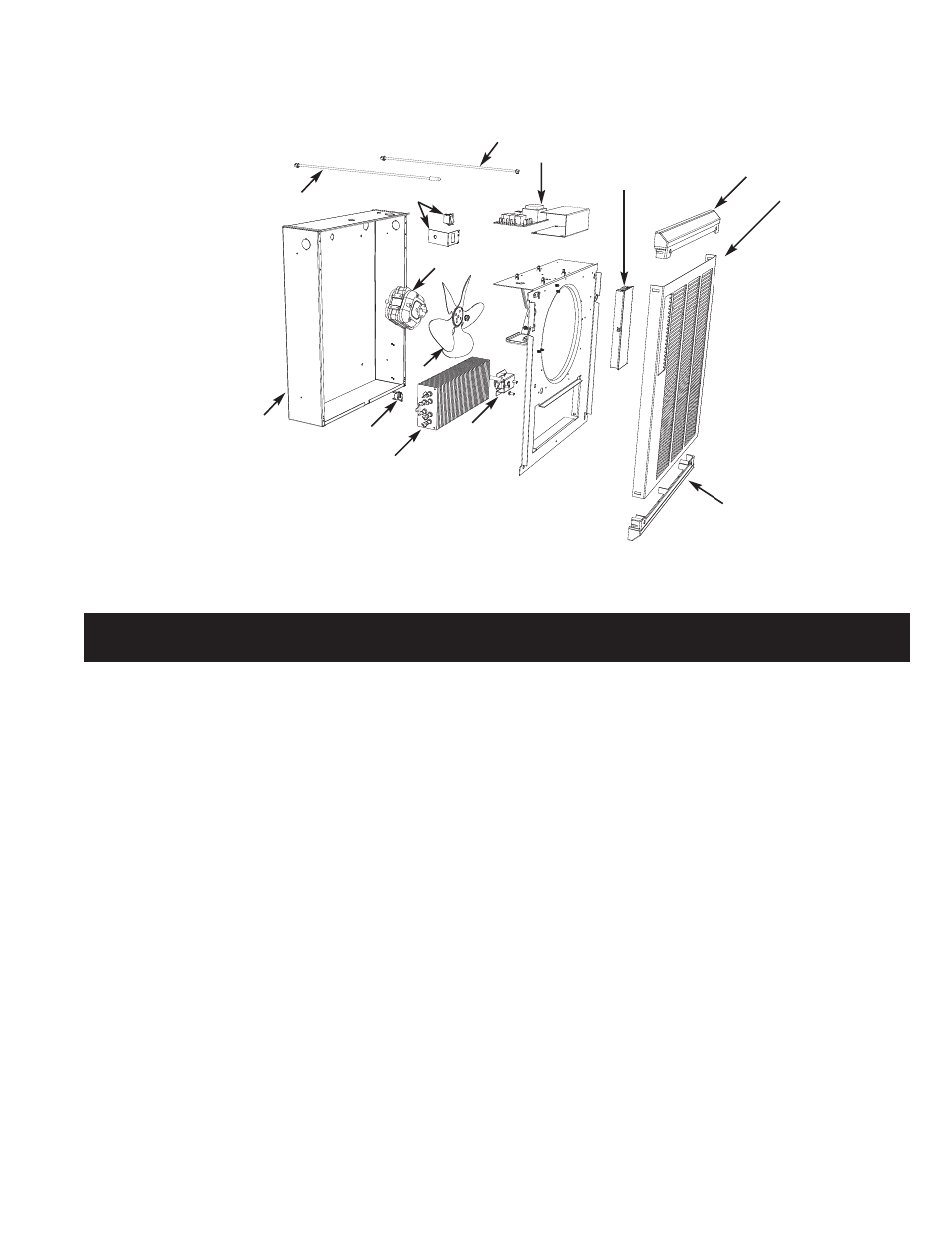

REPAIR PARTS
Repair Parts List
8
12
5
6
7
Part Number
Ref HTWH4008 HTWH4004 HTWH4007
No. Description 208V 4000W 240V 4000W 277V 4000W Quantity
1 Painted Grille
Northern White 2501-11022-000 2501-11022-000 2501-11022-000 1
Statuary Bronze 2501-11022-001 2501-11022-001 2501-11022-001 1
Navajo White 2501-11022-002 2501-11022-002 2501-11022-002 1
2 Back Box Assembly 1203-2015-000 1203-2015-000 1203-2015-000 1
3 Parts Bag (not shown) 1205-2020-002 1205-2020-002 1205-2020-002 1
4 Data Cable 1426-11010-001 1426-11010-001 1426-11010-001 1
5 Control Board (power board) 1414-11043-000 1414-11043-000 1414-11043-001 1
6 Thermistor 5262-11006-000 5262-11006-000 5262-11006-000 1
7 Touch Pad / Bezel Assembly 1016-11199-000 1016-11199-000 1016-11199-000 1
8 Plastic Cover (top and bottom identical)
Northern White 1402-2120-002 1402-2120-002 1402-2120-002 1
Statuary Bronze 1402-2120-001 1402-2120-001 1402-2120-001 1
Navajo White 1402-2120-000 1402-2120-000 1402-2120-000 1
9 Element Assembly 1802-11005-000 1802-11005-001 1802-11005-002 1
10 Safety Limit - Manual 4520-2027-000 4520-2027-000 4520-2027-000 1
11 Fan Motor 3900-2002-522 3900-2002-522 3900-2002-523 1
12 Fan Blade 490030103 490030103 490030103 1
13 Fan Delay 410074000 410074000 410074000 1
14 Indicator Light (not shown) 3510-2017-005 3510-2017-005 3510-2017-005 1
15 ON/OFF Assembly 5216-2008-000 5216-2008-000 5216-2008-000 1
4
