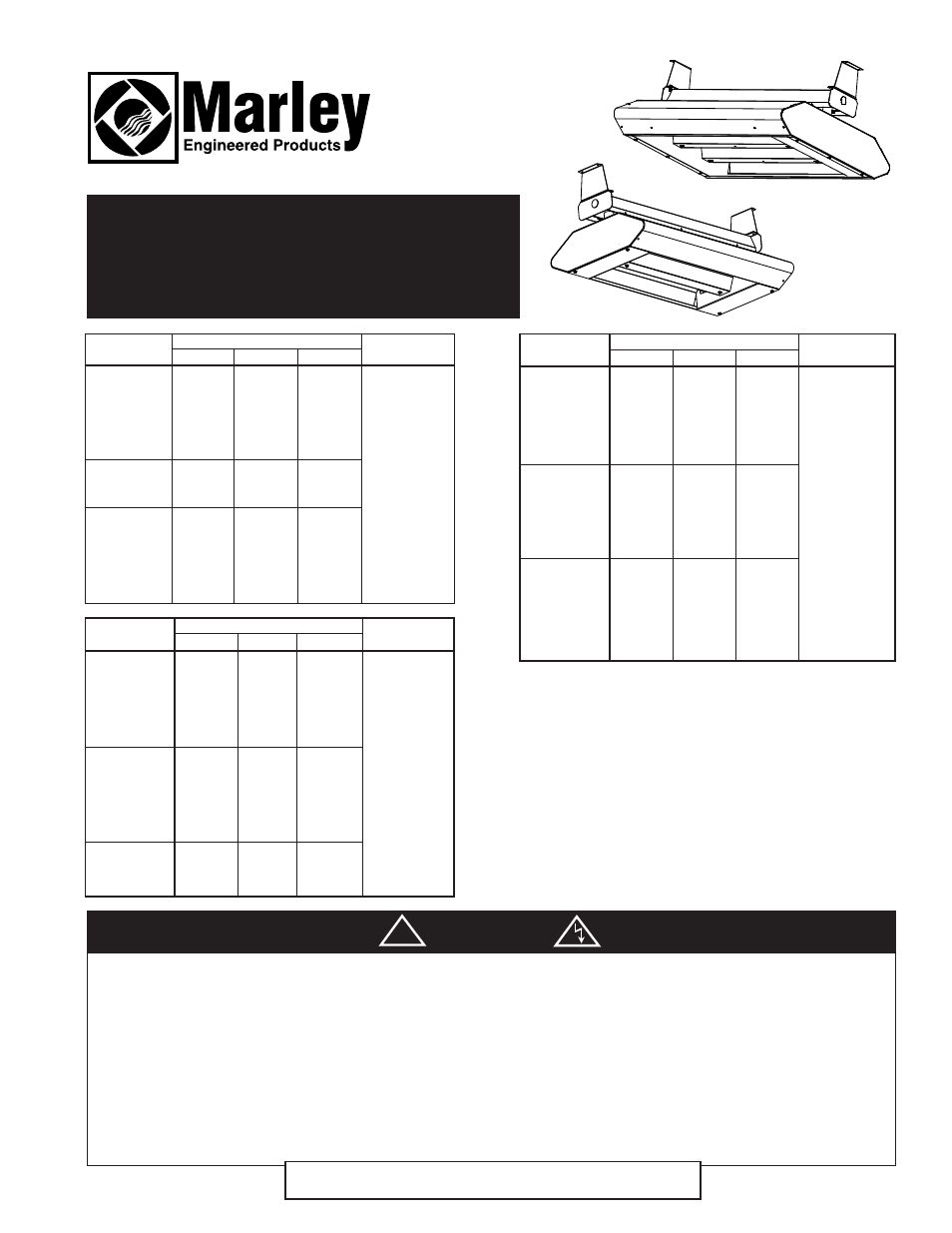

Infrared Heater
Elements
Read Carefully -
This instruction sheet contains vital infor-
mation for the proper installation, use, and efficient operation
of the heater component described. Carefully read this manu-
al before installation, cleaning, or operation of the heater.
Failure to adhere to the instructions could result in fire, electri-
cal shock, death, serious personal injury, or property damage.
Save these instructions and review frequently for continuing
safe operation and instructing future users.
1. Disconnect all power coming to heater at main service
panel before attempting to disassemble heater or install
elements.
2. All wiring must be in accordance with local and National
Electrical Codes and the heater must be grounded as a pre-
caution against possible electric shock.
3. Verify the power supply voltage coming to the heater
matches the rating printed on the heater nameplate before
energizing.
4. For quartz lamp elements, cut away excess lead wire after
installation into heater to prevent a possible electric shock
or short circuit.
5. Do not handle quartz lamp or quartz tube with bare hands,
as salt in perspiration may deteriorate the quartz.
6. Ceramic parts are easily broken. Use care when working
with ceramic parts.
SAVE THESE INSTRUCTIONS
WARNING
!
ELEMENT
USED WITH
MODEL NO. TYPE
VOLTS WATTS
FIXTURE
2-MS-08-208
208
2-MS-08-240
240
2-MS-08-277 Metal
277
850
2-MS-08-347 Sheath
347
2-MS-08-480
480
2-MS-08-600
600
RP22
2-QT-10-208 Quartz
208
RS22
2-QT-10-240 Tube
240
1000
RP32
2-QT-10-277
277
RS32
2-QL-16-208
208
2-QL-16-240
240
2-QL-16-277 Quartz
277
1600
2-QL-16-347 Lamp
347
2-QL-16-480
480
2-QL-16-600
600
ELEMENT
USED WITH
MODEL NO. TYPE
VOLTS WATTS
FIXTURE
3-MS-15-208
208
3-MS-15-240
240
3-MS-15-277 Metal
277
1500
3-MS-15-347 Sheath
347
3-MS-15-480
480
3-MS-15-600
600
RP23
3-QT-15-208
208
RS23
3-QT-15-240
240
RP33
3-QT-15-277 Quartz
277
1500
RS33
3-QT-15-347
Tube
347
3-QT-15-480
480
3-QT-15-600
600
3-QL-25-208
208
3-QL-25-240
240
3-QL-25-277 Quartz
277
2500
3-QL-25-347 Lamp
347
3-QL-25-480
480
3-QL-25-600
600
ELEMENT
USED WITH
MODEL NO.
TYPE VOLTS WATTS
FIXTURE
4-MS-20-208
208
4-MS-20-240
240
4-MS-20-277 Metal
277
2000
4-MS-20-347 Sheath
347
4-MS-20-480
480
4-MS-20-600
600
RP24
4-QT-20-208
208
RS24
4-QT-20-240
240
RP34
4-QT-20-277 Quartz
277
2000
RS34
4-QT-20-347
Tube
347
4-QT-20-480
480
4-QT-20-600
600
4-QL-36-347 Quartz
347
3650
4-QL-36-480
Lamp
480
4-QL-36-600
600
