Your Dell Precision™ 670 Computer: Dell Precision Workstation 470 and 670 Computers User's Guide
file:///T|/htdocs/systems/ws670/EN/ug_en/abtmetro.htm[3/20/2013 9:31:44 AM]
CD/DVD drive Orange pull-tab
I/O panel Yellow pull-tab

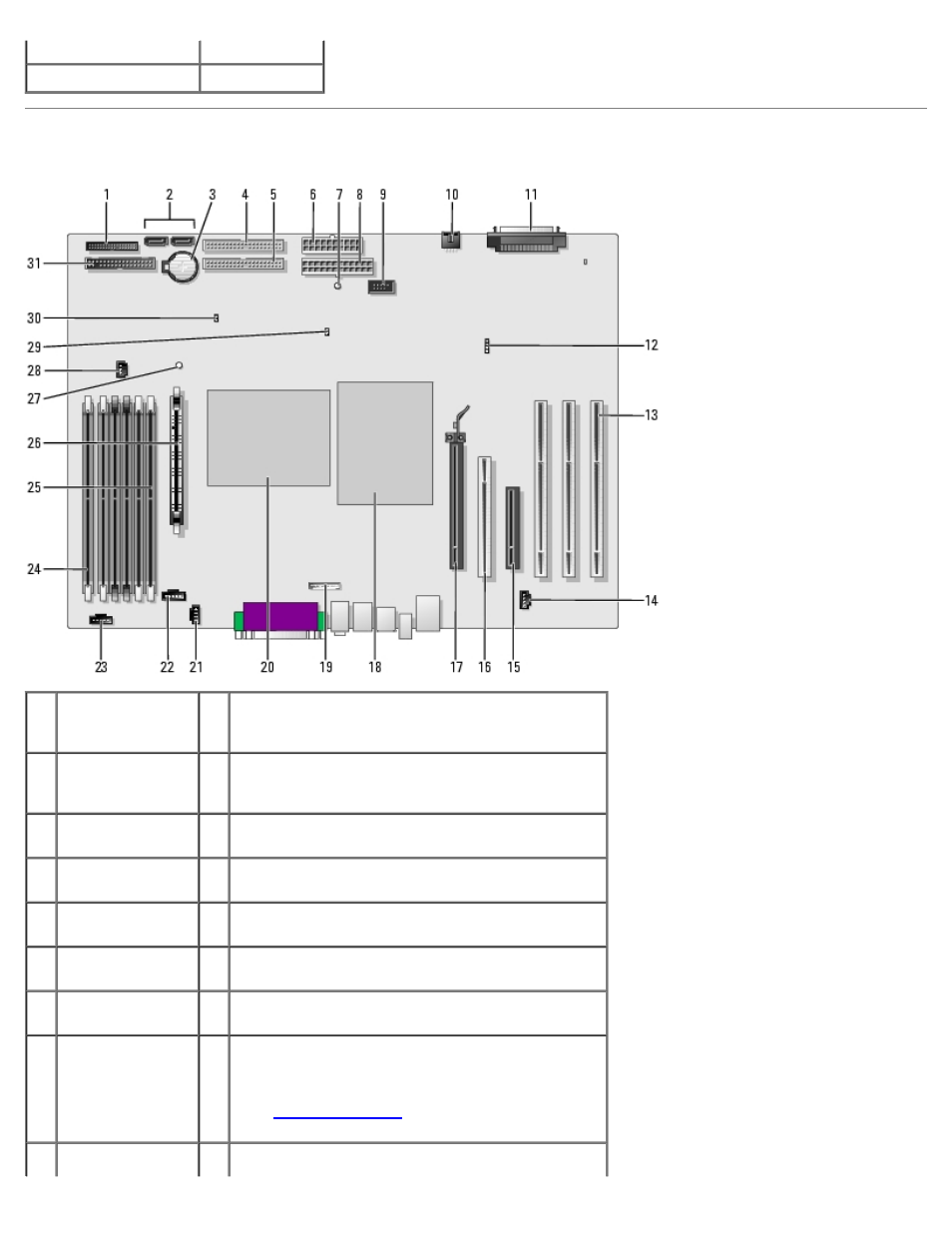

System Board Components
1 front-panel
connector
(PANEL)
17 PCI Express x16 connector
2 SATA connectors
(2) (SATA_0 and
SATA_1)
18 processor (CPU_0)
3 battery socket
(BATTERY)
19 front-panel audio cable connector (FRONTAUDIO)
4 CD/DVD drive
connector (IDE1)
20 processor (CPU_1)
5 CD/DVD drive
connector (IDE2)
21 CD-drive audio cable connector (CD_IN)
6 power connector
(POWER_2)
22 processor fan connector (FAN_P0)
7 standby power
light (AUX_PWR)
23 processor fan connector (FAN_P1)
8 power connector
(POWER_1)
24 memory module connector (DIMM _1)
The connectors are labeled DIMM_1 through
DIMM_6 with DIMM_1 at the edge of the board.
See " Memory Overview " for instructions on
installing memory.
9 IEEE 1394a 25 memory module connector (DIMM_6)
