Dell Dimension 5150C User Manual
Page 17
Removing and Installing Parts: Dell Dimension 5150C Service Manual
file:///T|/htdocs/systems/dim5150C/en/sm/parts1.htm[10/31/2012 8:21:07 AM]
NOTE:

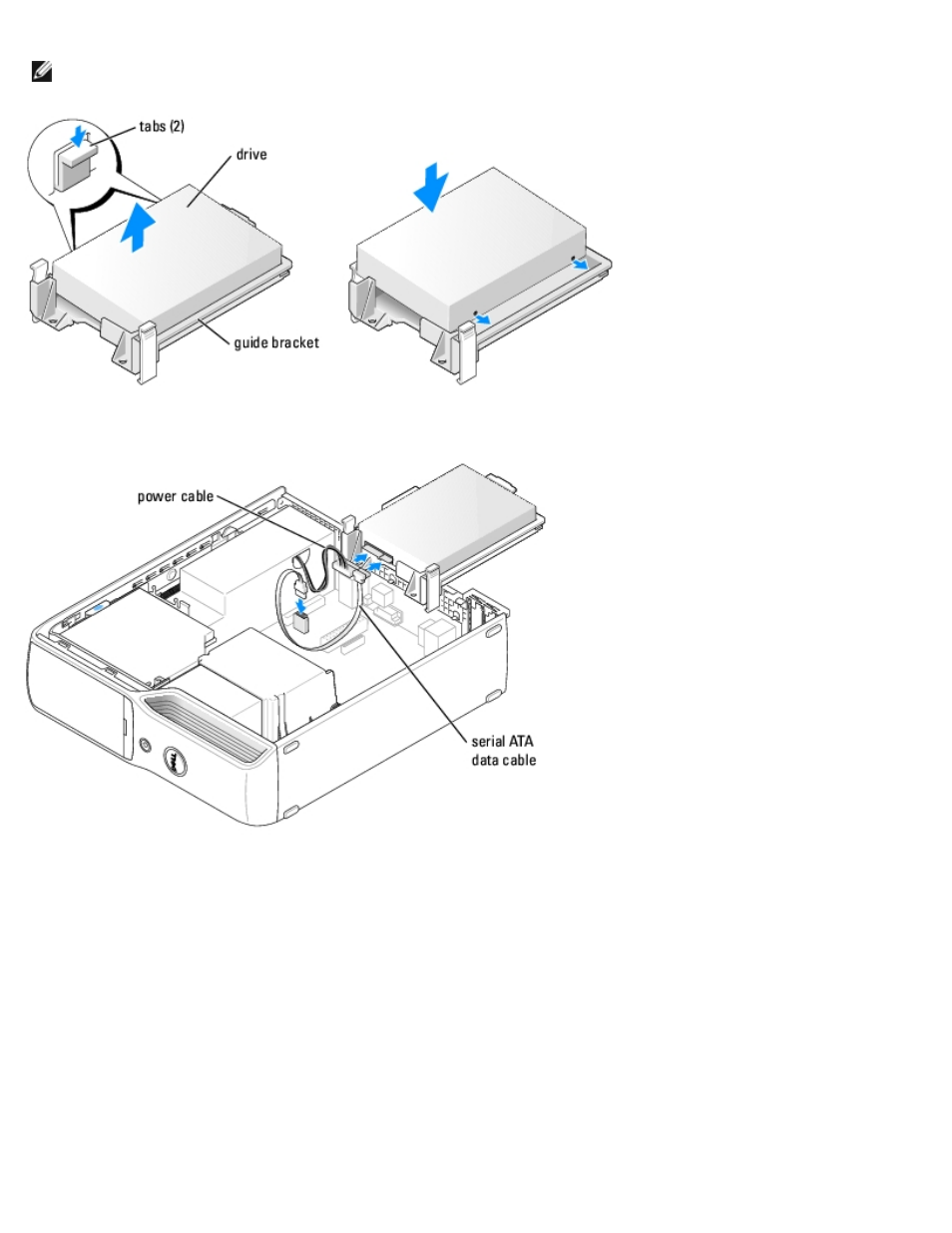

If your replacement hard drive does not have the plastic guide bracket attached, remove the bracket from the
old drive by unsnapping it from the drive. Snap the bracket onto the new drive.
4. Connect the power cable and the serial ATA data cable to the drive.
5. Ensure that all connectors are properly cabled and firmly seated.
6. Slide the drive into place until you feel a click or feel the drive securely installed.
