A Tour of Your Computer

21

CAUTION:

The AC adapter works with electrical outlets worldwide. However, power connectors and power

strips vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip
or electrical outlet may cause fire or equipment damage.

NOTICE:

When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself,

and pull firmly but gently to avoid damaging the cable.

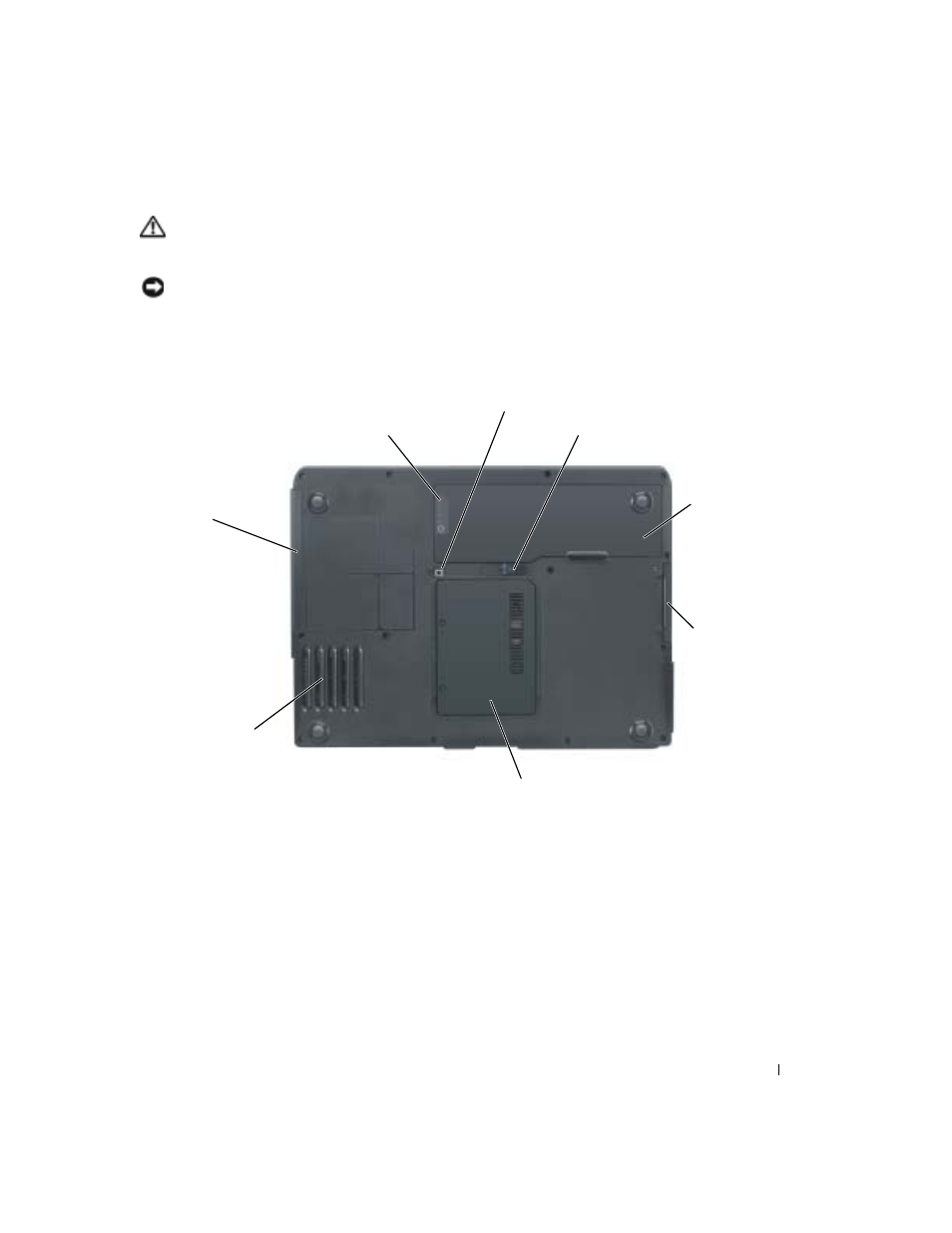

Bottom View

OPTICAL

DRIVE

LOCKING

SCREW

Secures the optical drive in the optical drive bay. For more information,

see "Optical Drive" on page 88.

BATTERY

-

BAY

LATCH

RELEASE

Releases the battery from the battery bay. See "Removing a Battery" on page 30.

BATTERY

When a battery is installed, you can use the computer without connecting the computer to an

electrical outlet. For more information, see "Using a Battery" on page 27.

memory/modem cover

hard drive

fan

battery

battery charge gauge

battery-bay latch release

optical drive
bay

optical drive locking screw
