Optical Drive
Alienware M18x Service Manual
Removing the Optical Drive
1.
Follow the instructions in
Before You Begin
.
2.
Remove the battery pack (see
Removing the Battery Pack
).
3.
Remove the base cover (see
Removing the Base Cover
).
4.
Remove the center control cover (see
Removing the Center Control Cover
).
5.
Remove the keyboard (see
Removing the Keyboard
).
6.
Remove the macro keyboard (see
Removing the Macro Keyboard
).
7.
Remove the power-button board (see
Removing the Power-Button Board
).
8.
Remove the display assembly (see
Removing the Display Assembly
).
9.
Follow the instructions from
step 10
to
step 16
in
Removing the Palm Rest
.
10.
Remove the I/O board (see
Removing the I/O Board
).
11.
Lift the connector latch on the connector on the system board and disconnect the optical-drive cable from the connector on the system board, and then
gently peel off the optical-drive cable from the computer base.
12.
Remove the three screws that secure the optical-drive assembly to the computer base.
13.
Lift the optical-drive assembly off the computer base.
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Battery Pack
) before working inside the
computer.

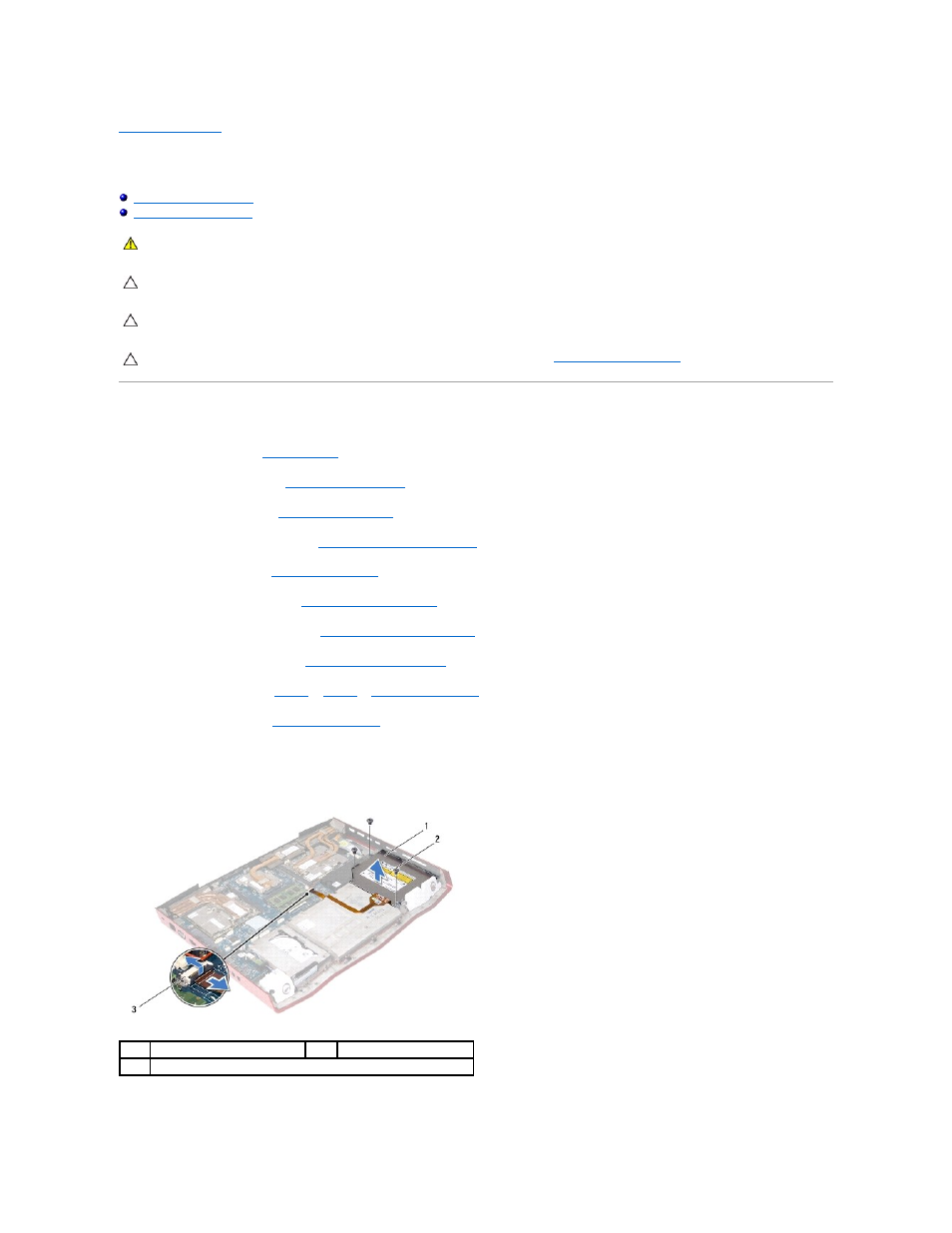

1
optical-drive
2
screws (3)
3
optical-drive cable connector
