Keyboard
Alienware M18x Service Manual
Removing the Keyboard
1.
Follow the instructions in
Before You Begin
.
2.
Remove the battery pack (see
Removing the Battery Pack
).
3.
Remove the base cover (see
Removing the Base Cover
).
4.
Remove the center control cover (see
Removing the Center Control Cover
).
5.

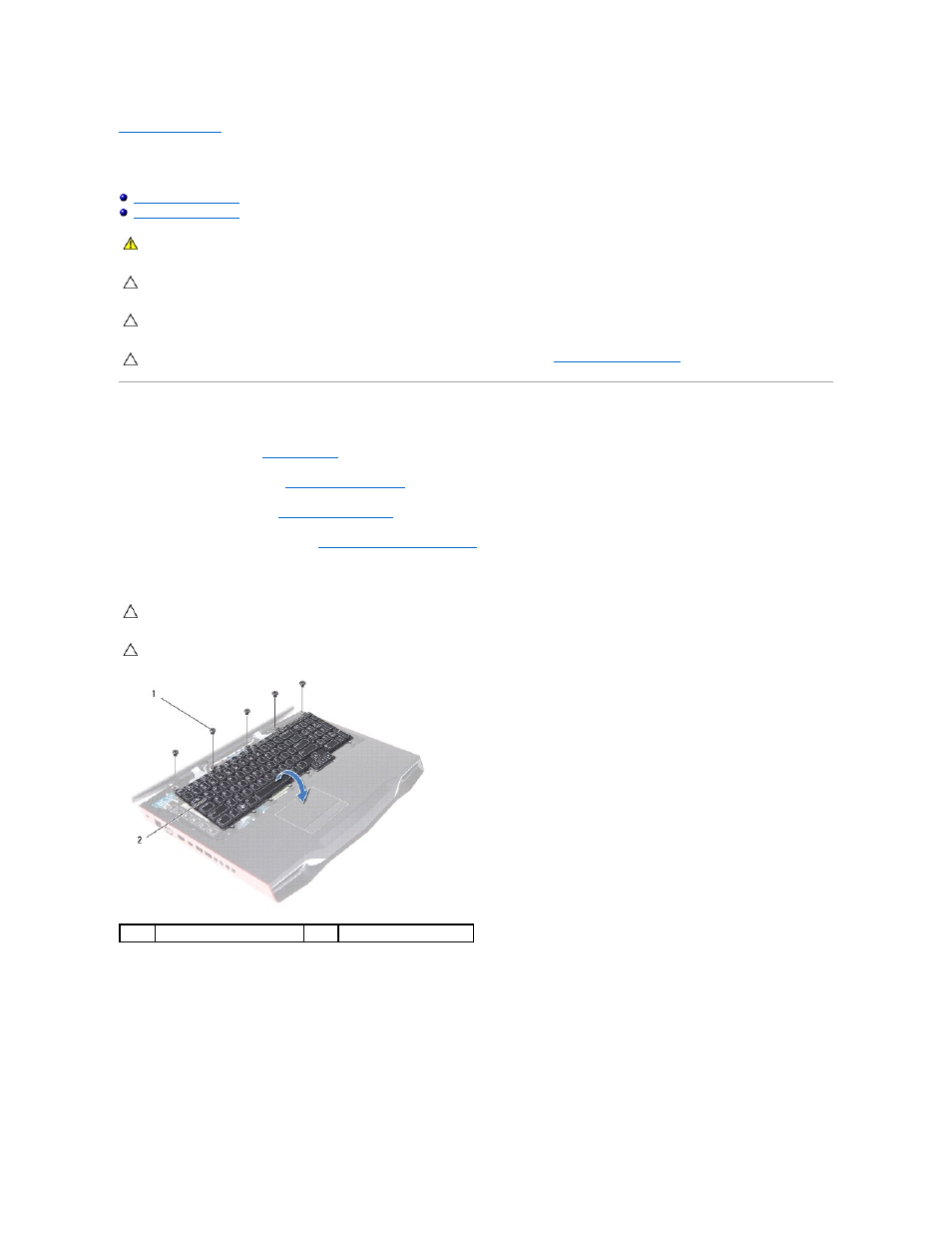

Remove the five screws that secure the keyboard to the computer base.
6.
Lift the keyboard and slide the keyboard tabs out of the slots on the palm-rest assembly.
7.
Turn the keyboard over and place it on the palm-rest assembly.
8.
Lift the connector latches on the connectors on the system board and pull the pull-tab to disconnect the keyboard cable and keyboard-backlight cable.
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
CAUTION:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal
surface (such as a connector on your computer).
CAUTION:
Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is
not covered by your warranty.
CAUTION:
To help prevent damage to the system board, remove the main battery (see
Removing the Battery Pack
) before working inside the
computer.
CAUTION:
The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the
keyboard.
CAUTION:
Be extremely careful when removing and handling the keyboard. Failure to do so could result in scratching the display panel.
1
screws (5)
2
keyboard
