11.

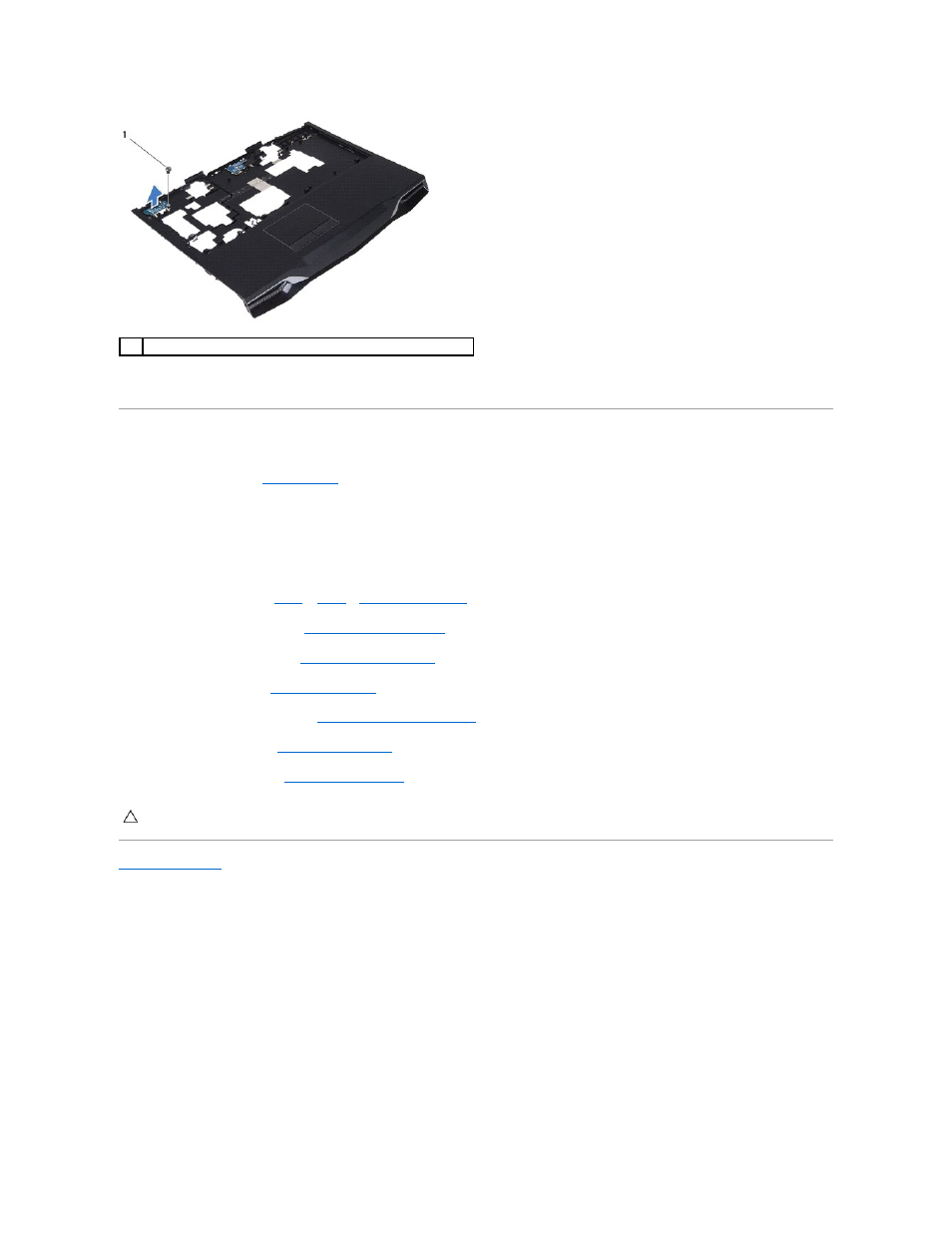

Lift the status-light board off the palm-rest assembly.
Replacing the Status-Light Board
1.
Follow the instructions in
Before You Begin
.
2.
Align the slots on the status-light board with the alignment posts on the palm-rest assembly and secure the status-light board in place.
3.
Replace the screw that secures the status-light board to the palm-rest assembly.
4.
Route the status-light board cable through the routing guides on the palm-rest assembly.
5.
Follow the instructions from
step 4
to
step 7
in
Replacing the Palm Rest
.
6.
Replace the display assembly (see
Replacing the Display Assembly
).
7.
Replace the macro keyboard (see
Replacing the Macro Keyboard
).
8.
Replace the keyboard (see
Replacing the Keyboard
).
9.
Replace the center control cover (see
Replacing the Center Control Cover
).
10.
Replace the base cover (see
Replacing the Base Cover
).
11.
Replace the battery pack (see
Replacing the Battery Pack
).
Back to Contents Page
1
screw
CAUTION:
Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may
result in damage to the computer.
