Installing System Components
69
Front Bezel
A lock on the bezel restricts access to the power button, optical drive, and
hard drive(s). A control panel LCD located on the front panel and accessible
through the front bezel displays the system’s status. See Figure 3-2.

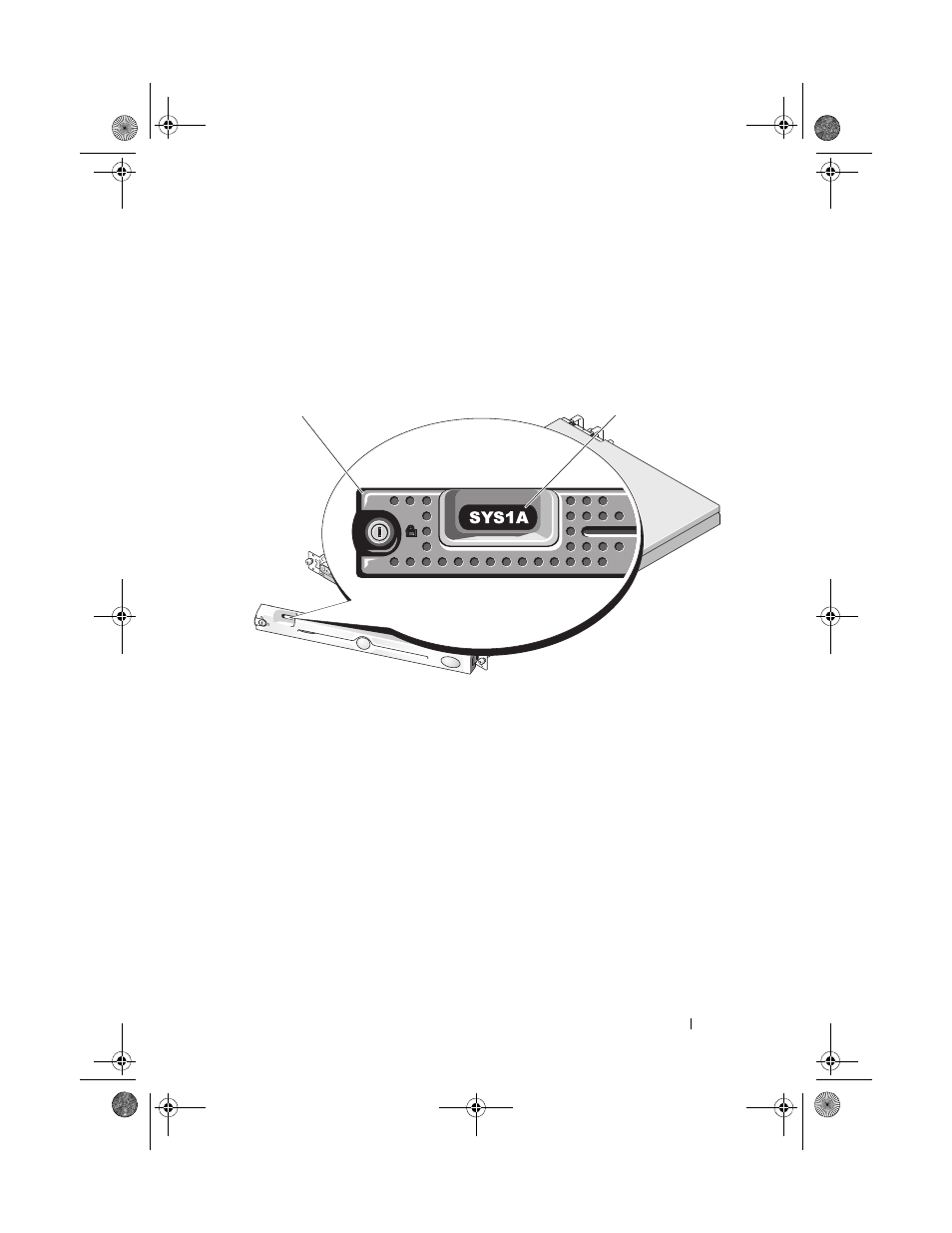

Figure 3-2. Control Panel LCD With Bezel Installed
Removing the Front Bezel
1 Using the system key, unlock the bezel.
2 Press the tab at the left end of the bezel.
3 Rotate the left end of the bezel away from the system to release the right
end of the bezel.
4 Pull the bezel away from the system. See Figure 3-3.
1 bezel 2 control panel LCD
