About Your System
13
Front-Panel Features and Indicators
Figure 1-1 shows the controls, indicators, connectors, and features on the
system front panel behind the optional bezel. (To remove the bezel, press the
latch at the left end of the bezel. See "Opening and Closing the System" on
page 70.) Table 1-2 provides component descriptions.

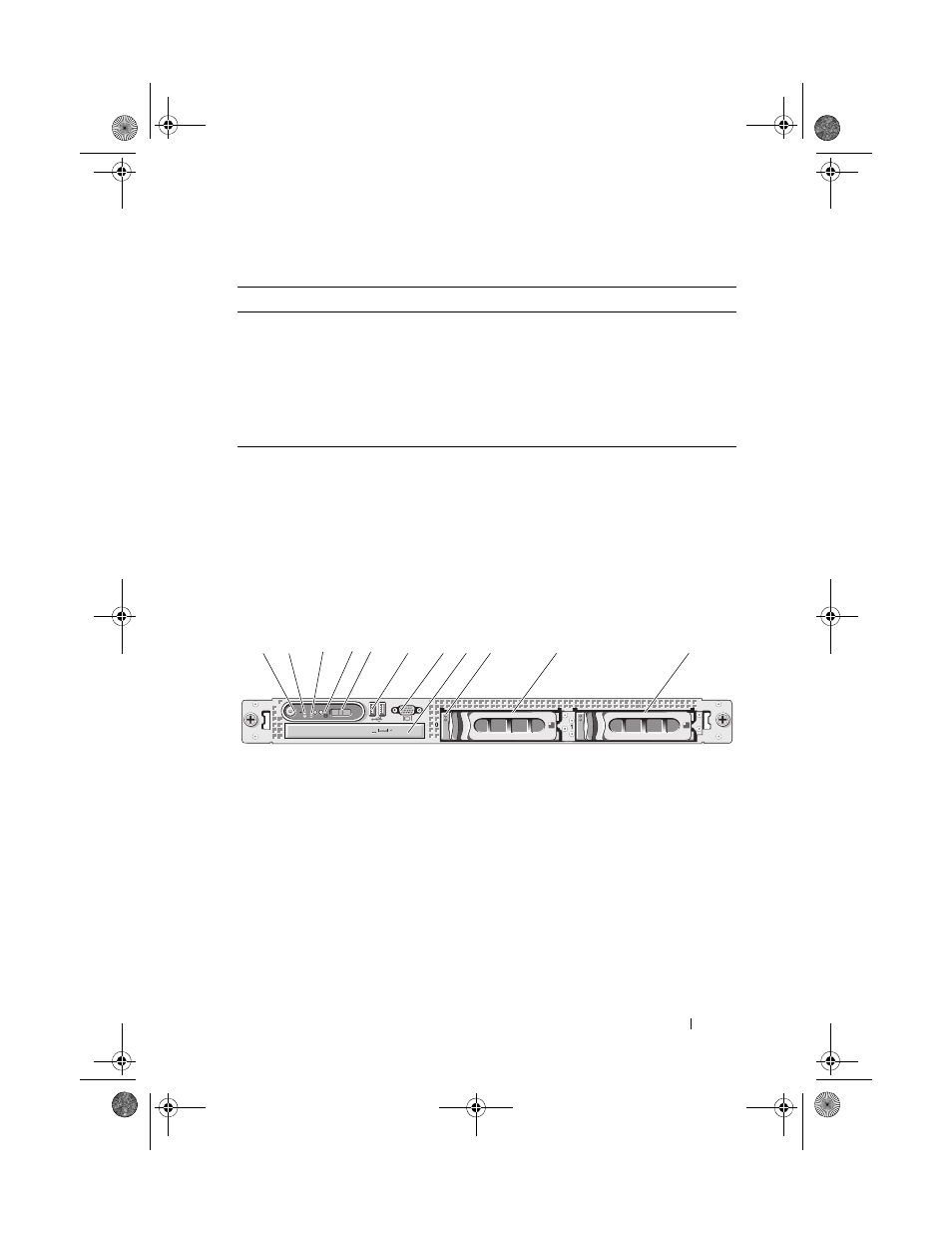

Figure 1-1. Front-Panel Features and Indicators
If you have the optional battery-cached SAS RAID controller, this
keystroke enters the RAID configuration utility. For more information,
see the documentation for your SAS controller card.
If you have PXE support enabled through the System Setup Program
(see "Integrated Devices Screen" on page 53), this keystroke allows you
to configure NIC settings for PXE boot. For more information, see the
documentation for your integrated NIC.
Table 1-1. Keystrokes for Accessing System Features (continued)
Keystroke Description
1 2 3 5 6 7 10 8 9 11 4
