Removing and Installing Parts

Replacing the Drive-Panel Insert

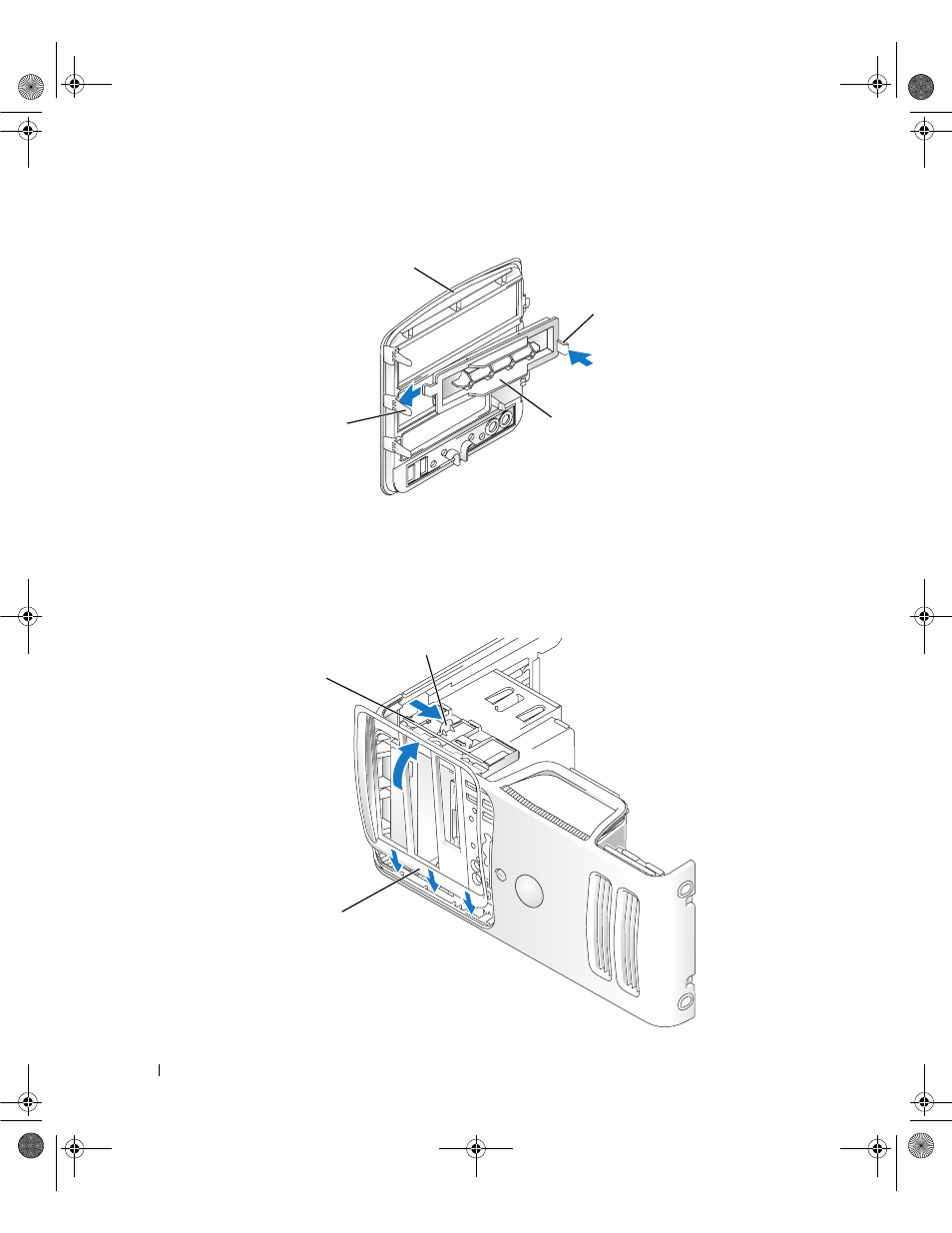

1 Slide the tab on the left side of the drive-panel insert under the center drive panel tab.
2 Rotate the drive panel insert into place and snap the drive-panel insert tab over the corresponding tab

on the drive panel.

Replacing the Drive Panel.

1 Follow the procedures in "Before You Begin" on page 59.

center drive
panel tab

drive panel
insert tab

drive panel

drive panel insert

drive panel

sliding plate

sliding plate lever
