Page 86

82
Installing System Components

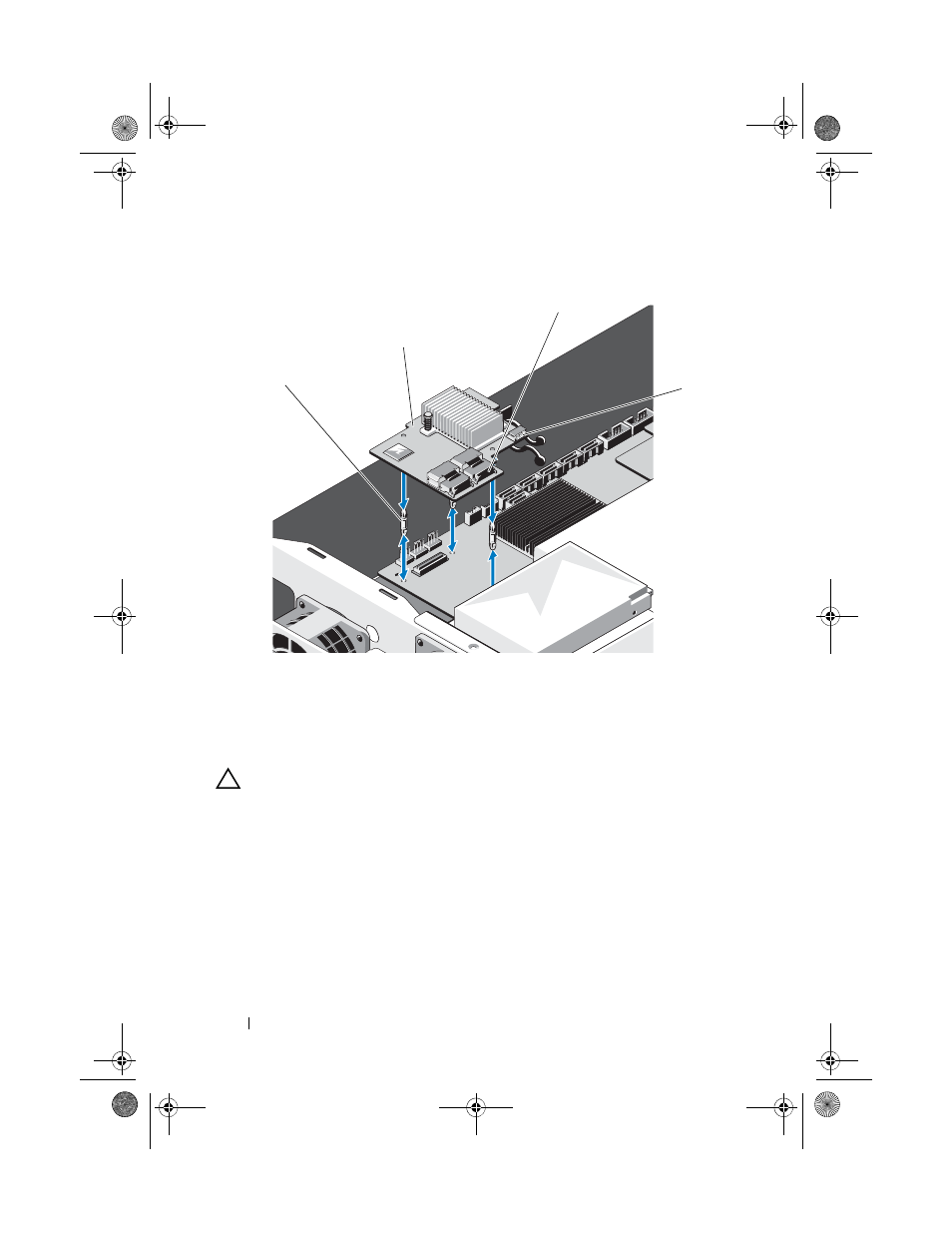

Figure 3-15. Removing and Installing the Integrated Storage Controller Card
Installing the Integrated Storage Controller Card
CAUTION:
Many repairs may only be done by a certified service technician.
You should only perform troubleshooting and simple repairs as authorized in
your product documentation, or as directed by the online or telephone service
and support team. Damage due to servicing that is not authorized by Dell is not
covered by your warranty. Read and follow the safety instructions that came
with the product.
1 Turn off the system, including any attached peripherals, and disconnect
the system from its electrical outlet.
2 Open the system. See "Opening the System" on page 58.
3 Place the three spacer pins on the system board. See Figure 3-15.
1
spacer pins (3)
2
integrated storage controller card
3
SAS cable connector
4
RAID battery connector
2
1
4
3
book.book Page 82 Friday, November 8, 2013 11:29 AM
