2 Insert the two tabs on the metal foot into the slots on the side of the system.
3 Rotate the metal foot down and over the hole in each corner and secure the foot with a hex-
head Phillips screw that came with the metal foot kit. See Figure 1-18.
Repeat this step for the other three metal feet.

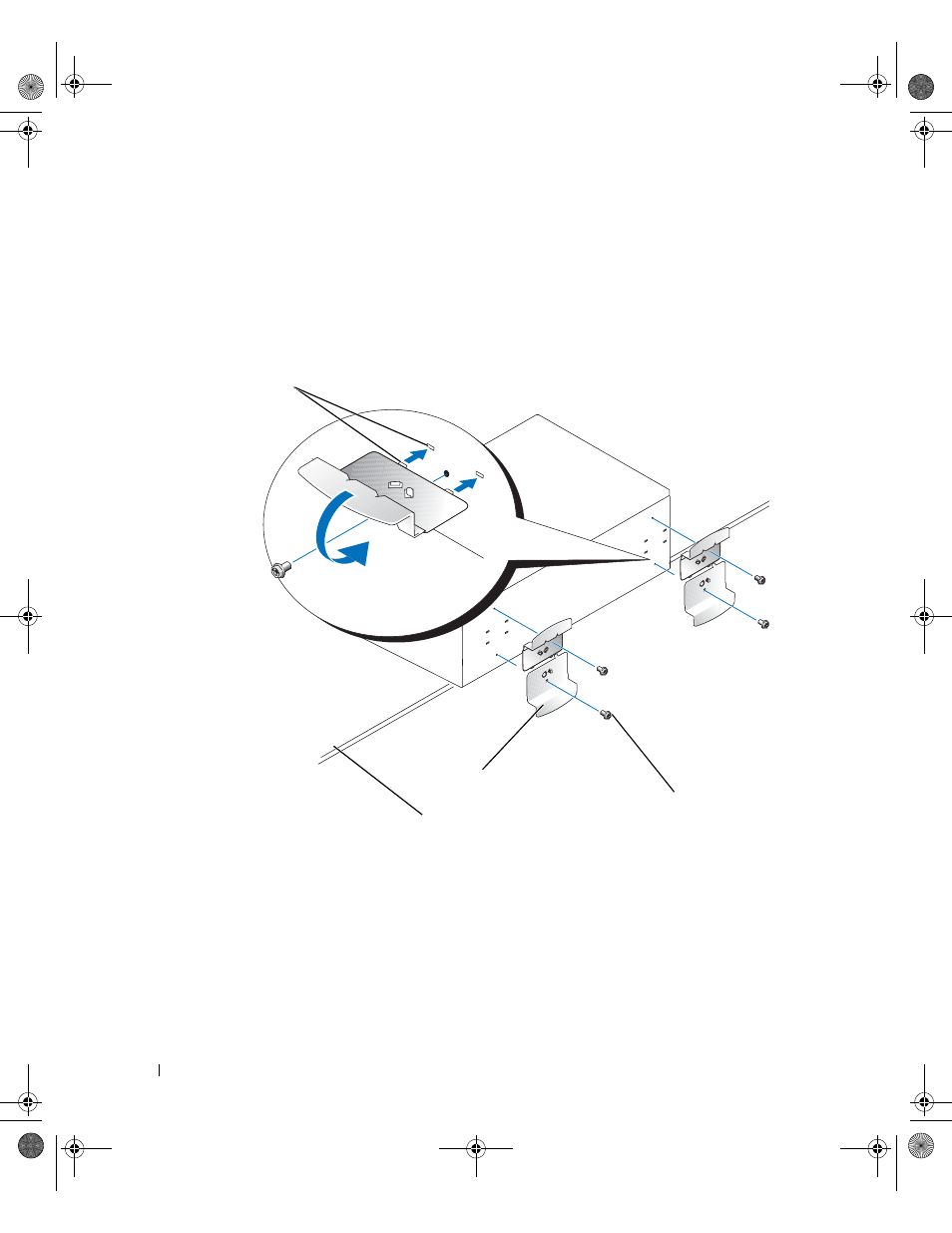

Figure 1-18. Installing the Metal Feet
4 Orient the system as shown in Figure 1-19.
5 If applicable, install the optional tower bezel (see Figure 1-19):
To install the bezel hook the left end of the bezel onto the chassis, then fit the free end of the
bezel onto the system. Secure the bezel with the keylock.
hex-head Phillips
screws (4)
metal feet (4)
flat working surface
metal foot tabs
and slots (2)
