Removing the Trim Panel
1 Remove the trim panel.
a Lay the system on its cover as shown in Figure 1-7.
b Using a #2 Phillips screwdriver or 1/4-inch nut driver, remove the three screws from the
side of the trim panel. See Figure 1-7.
c Using a #2 Phillips screwdriver or 1/4-inch nut driver, remove the two screws from the
back of the system.
d Slide the trim panel backward and then remove the trim panel from the chassis.

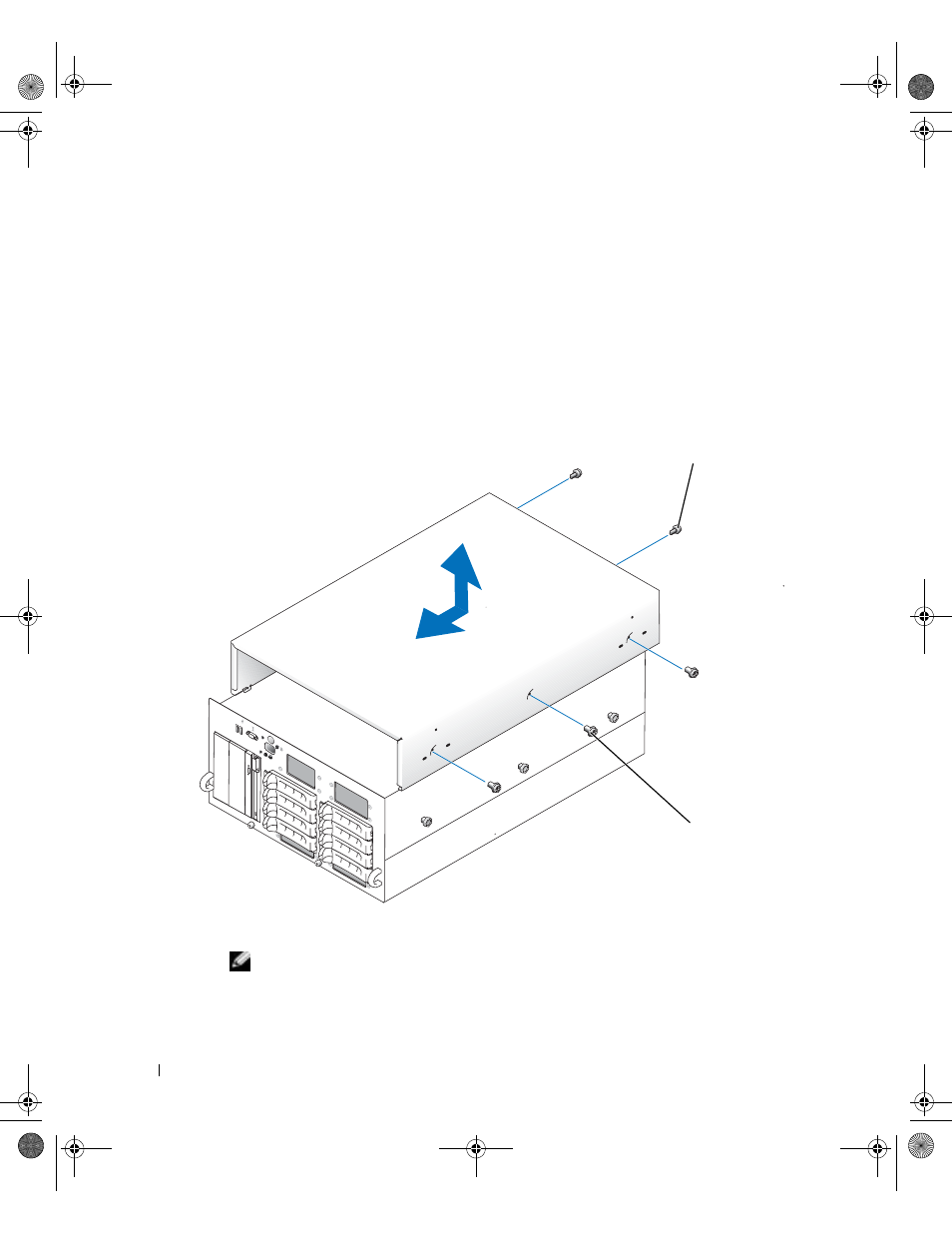

Figure 1-7. Removing the Trim Panel
2 Install the six shoulder nuts as shown in Figure 1-8.
NOTE:
Ensure that the shoulder nuts are tightened so that the shoulder of the nut is tight against
the side.
The system is ready to install in the rack.
hex-head Phillips
screws (3)
hex-head Phillips
screws (2)
