28
Tower-to-Rack and Rack-to-Tower Conversion Guide
www
.dell.com | support.dell.com

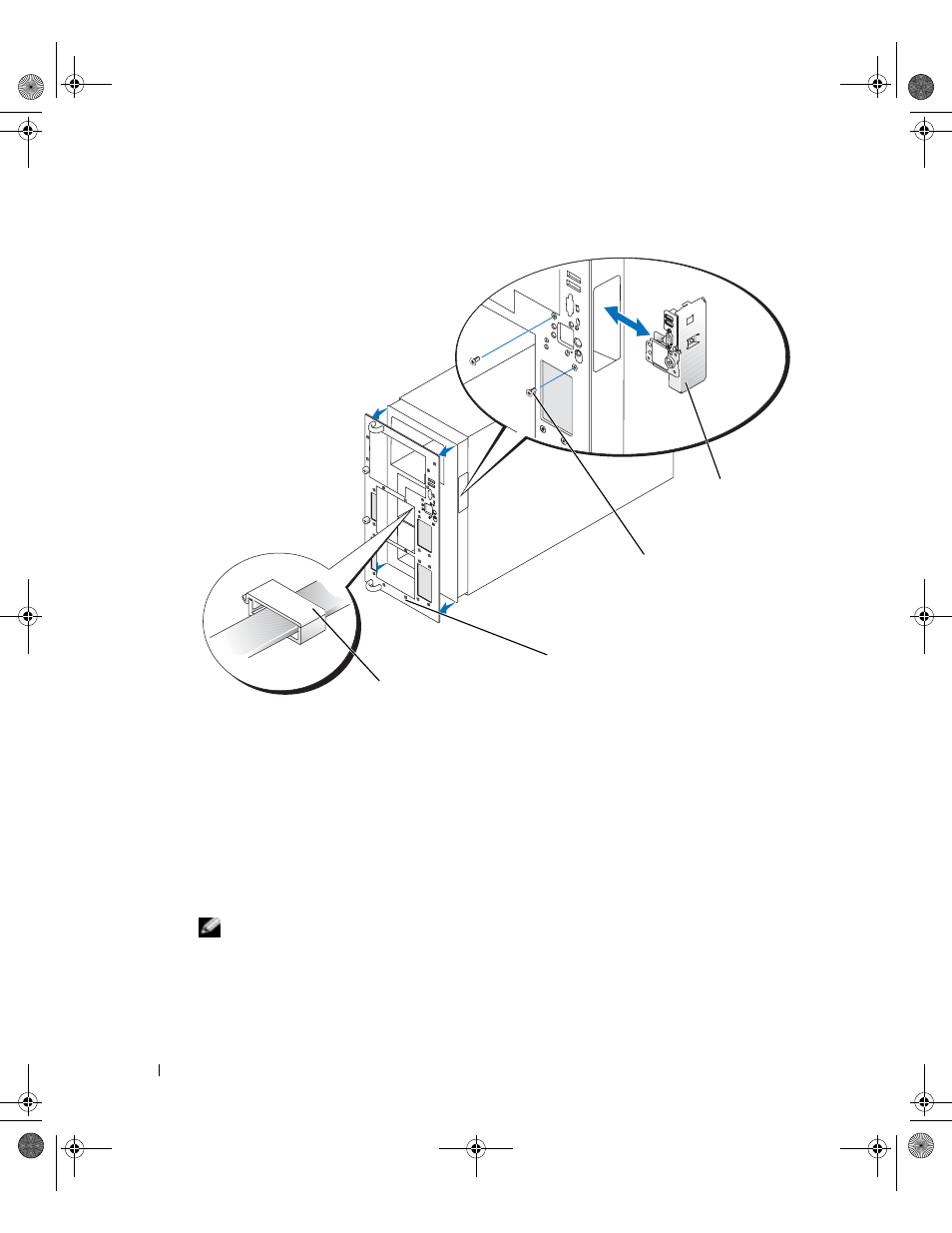

Figure 1-17. Removing the Rack Control Panel Assembly
3 Using a T-10 Torx driver, remove the 22 screws that secure the rack front panel to the drive
tray. See Figure 1-17
Installing the Tower Front Panel and Control Panel Assembly
1 Install the tower front panel. See Figure 1-17.
a Orient the system as shown in Figure 1-17.
b Using a T-10 Torx driver, install the 22 screws (that came in your kit) that secure the
tower front panel to the drive tray.
NOTE:
The control panel assembly’s LCD board and the I/O board are the same for both the tower and
rack systems. Only the carrier is different. When converting your rack system to a tower system, you must
remove the LCD board and the I/O board from the control panel assembly that you removed in step 2 of
"Removing the Control Panel Assembly and Rack Front Panel."
control panel
assembly
control panel
cable clamp
screws (2)
T-10 Torx
screws (22)
