5. Remove the front-panel insert for the empty drive bay. See " Front-Panel Inserts ."
6. Slide the drive into the drive bay until the tabs on the rails securely click into position.
7. Connect the power cable to the drive. See Figure 7 -10 .

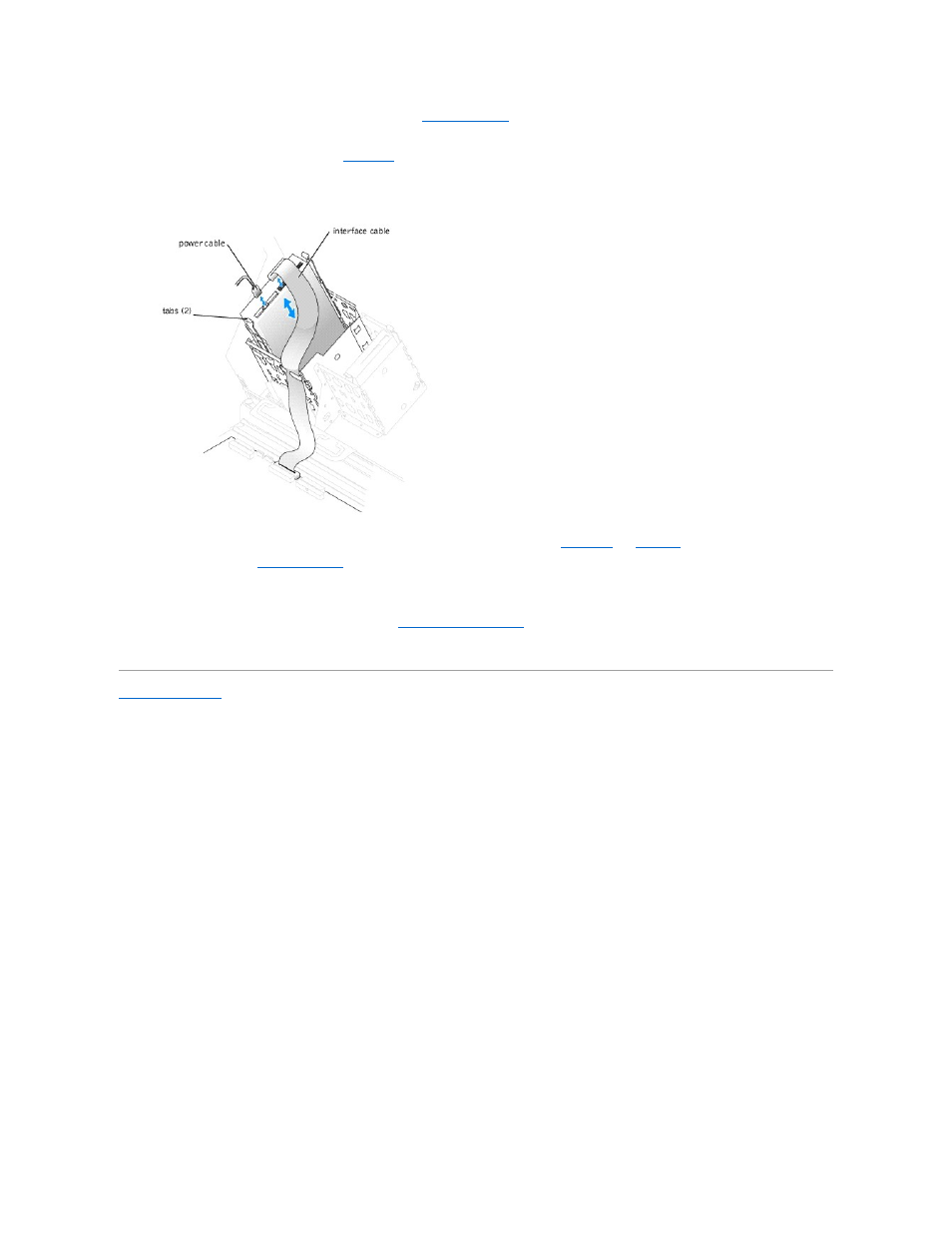

Figure 7-10. Installing a 5.25-Inch Drive
8. Connect the interface cable from the drive to the IDE2 connector on the system board. See Figure 7 -10 and Figure A -3 .
9. Close the system. See " Closing the System " in "Troubleshooting Your System."
10. Reconnect the system to the electrical outlet, and turn on the system and attached peripherals.
11. Enter the System Setup program and ensure that the drive's IDE controller is enabled. See "Using the System Setup Program" in the User's Guide.
12. Test the drive by running the system diagnostics. See " Running System Diagnostics ."
