Installing the Processor Cooling Shroud Blank
1.
Turn off the system and attached peripherals, and disconnect the system from the electrical outlet.
2.
Open the system. See "
Opening the System
" in "Troubleshooting Your System."
3.

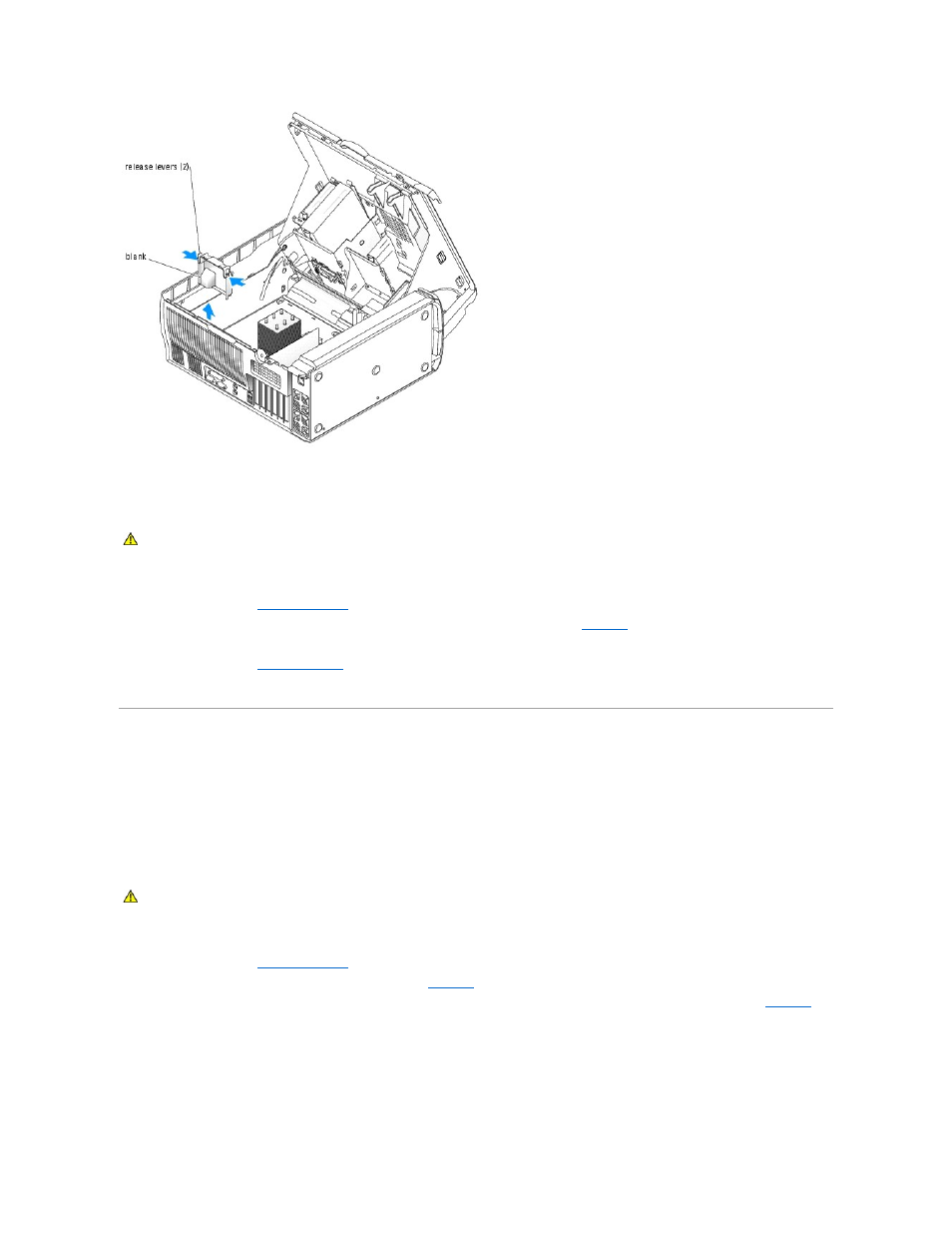

Align the processor cooling shroud blank with the securing slots on the back of the chassis. See
4.
Slide the blank down until it snaps into place.
5.
Close the system. See "
Closing the System
" in "Troubleshooting Your System."
6.
Reconnect the system to the electrical outlet, and turn on the system and attached peripherals.
Expansion Card Fan
The expansion card fan is part of the expansion card cooling shroud. The fan and shroud are replaced as a unit.
Removing the Expansion Card Fan
1.
Turn off the system and attached peripherals, and disconnect the system from the electrical outlet.
2.
Open the system. See "
Opening the System
" in "Troubleshooting Your System."
3.
Disconnect the fan's power cable from the system board. See
Figure A
-3
.
4.
While pressing on the expansion card cooling shroud release lever, slide the cooling shroud forward toward the front of the system. See
5.
Remove the cooling shroud from the system.
Figure 6-3. Removing and Installing the Expansion Card Cooling Shroud
CAUTION:
Only trained service technicians are authorized to open the system cover and access any of the components inside the system. See
your System Information Guide for complete information about safety precautions, working inside the computer, and protecting against
electrostatic discharge.
CAUTION:
Only trained service technicians are authorized to open the system cover and access any of the components inside the system. See
your System Information Guide for complete information about safety precautions, working inside the computer, and protecting against
electrostatic discharge.
