Microprocessor Thermal-Cooling Assembly
Dell™ XPS M140 Service Manual
Removing the Microprocessor Thermal-Cooling Assembly
Replacing the Microprocessor Thermal-Cooling Assembly
Removing the Microprocessor Thermal-Cooling Assembly
CAUTION: Before you perform any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as the back panel) on the computer.
1. Follow the instructions in Preparing to Work Inside the Computer .
2. Loosen the three captive screws securing the microprocessor module cover, then remove the cover and set it
aside.

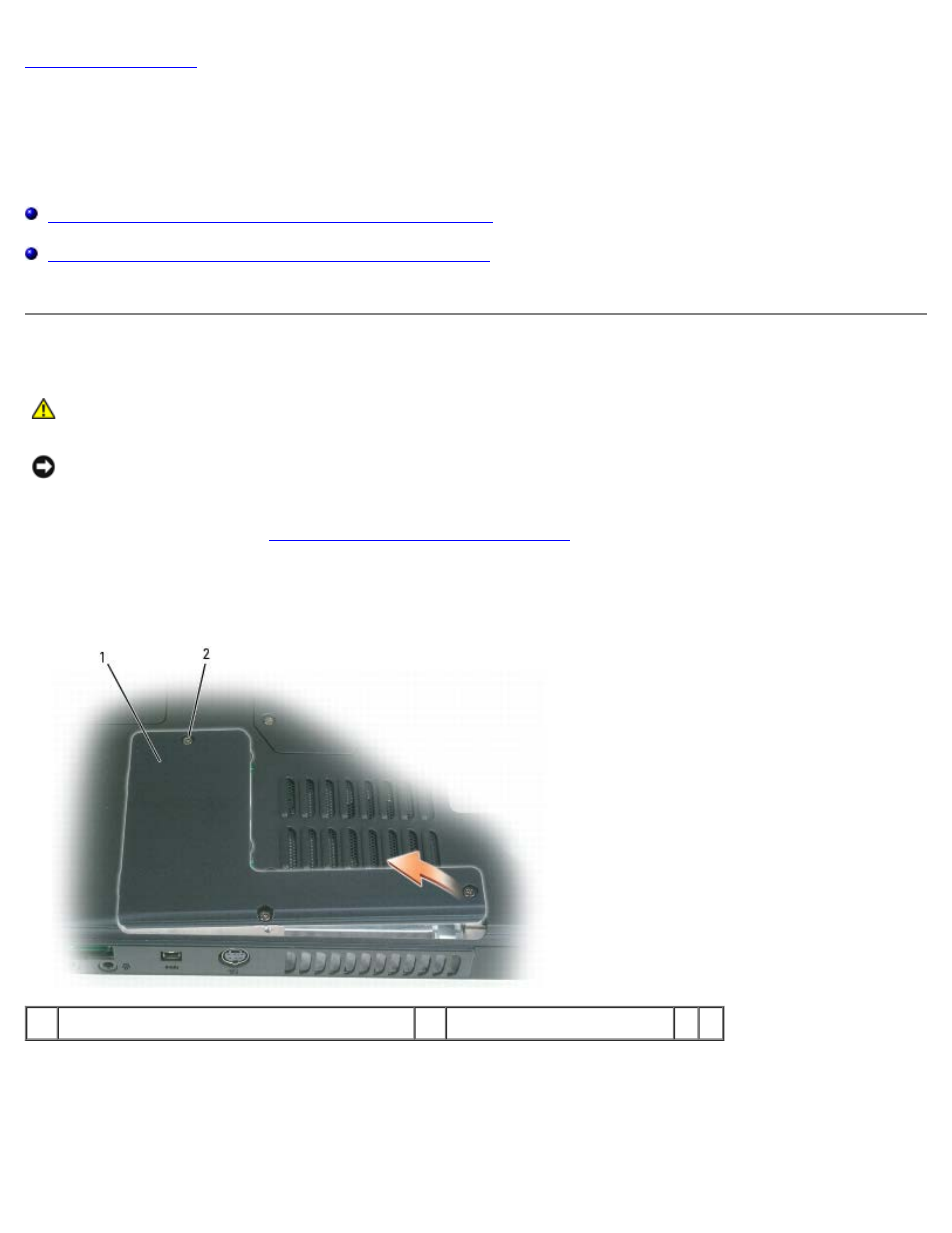

1 microprocessor module cover 2 captive screws (3)
3. Loosen the four captive screws securing the microprocessor thermal-cooling assembly to the system board, then
carefully lift the assembly straight out of the computer.
