connector.
10. Disconnect the touch pad cable.
Use a plastic scribe to release the locking clips on both sides of the system board connector, and then gently pull to
disconnect the touch pad connector from the system board connector.
11. Disconnect the LED board cable.
Use a plastic scribe to release the locking clips on both sides of the system board connector, and then gently pull to
disconnect the LED board connector from the system board connector.

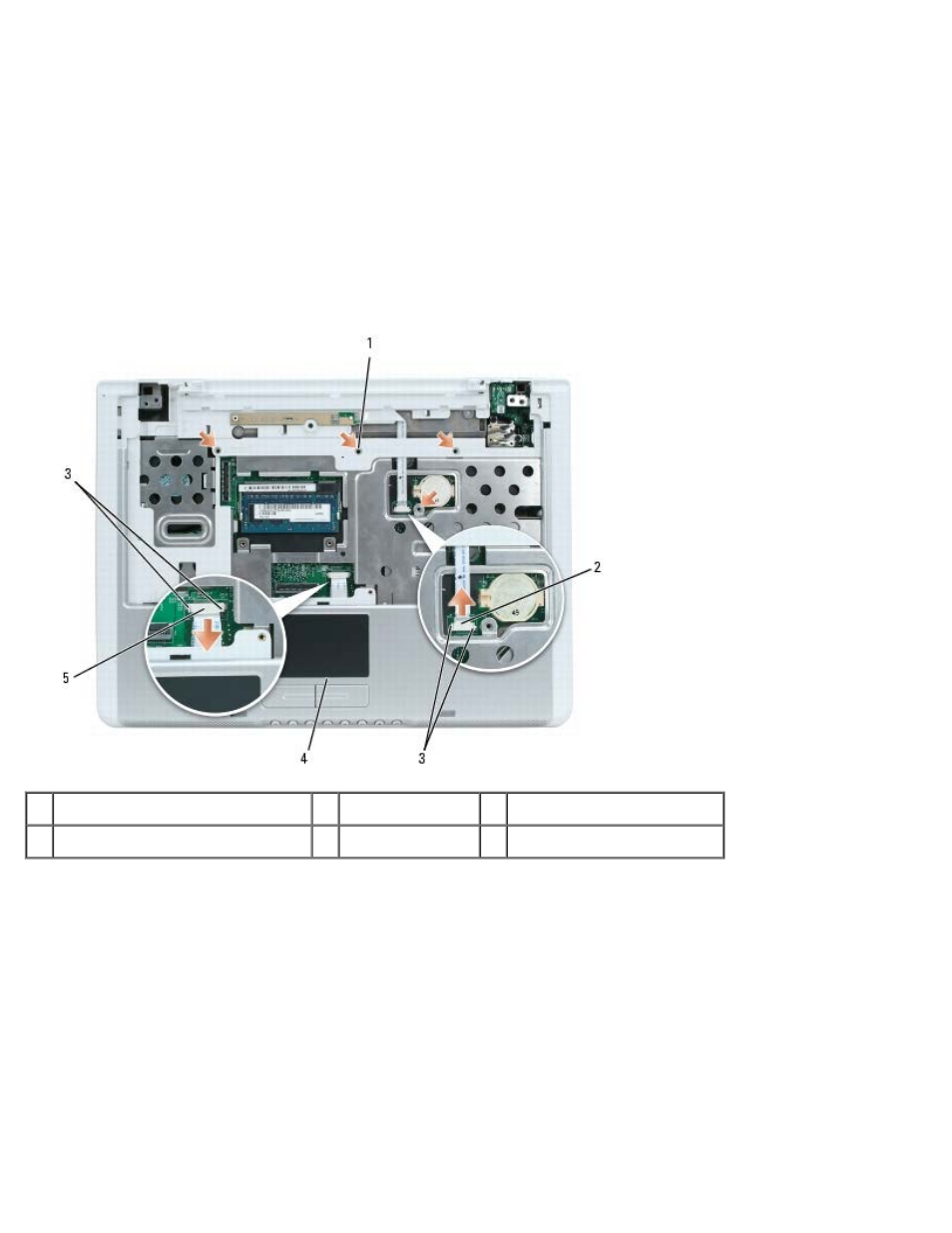

1 M2.5 x 5-mm screws (4) 3 locking clips 5 touch pad connector
2 LED board connector 4 palm rest
12. Moving from left to right, carefully lift the palm rest along the rear edge, near the hinge brackets, then rotate the
palmrest forward to remove it from the computer.
