73 UPS Maintenance |

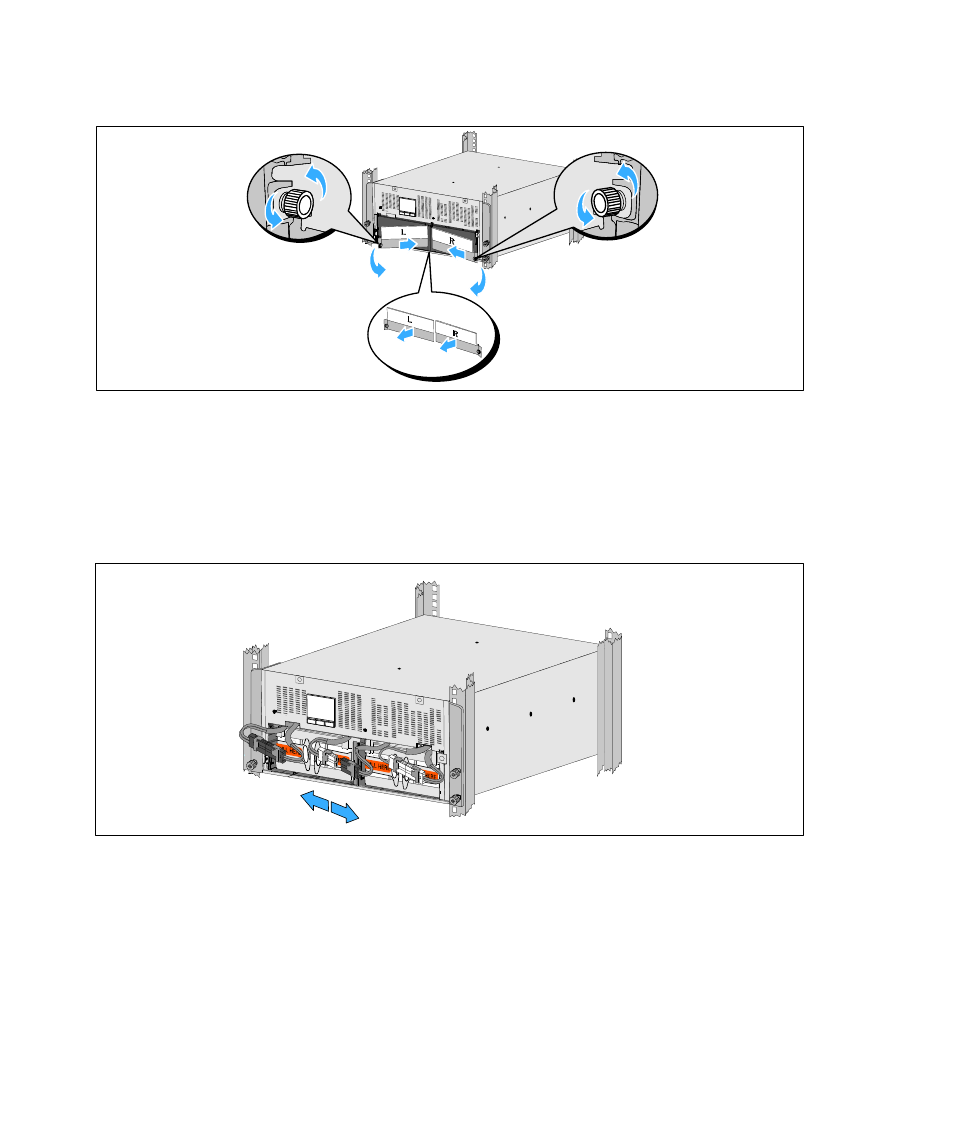

Figure 39. Removing the Battery Retaining Brackets
3 Disconnect the battery connectors (see Figure 40):
Locate the battery jumpers tucked into the small shelf at the top of the center post. Pull them off
the shelf and disconnect them.
Locate and disconnect the remaining battery connectors for the left and right battery trays.
Figure 40. Disconnecting the Battery Connectors
