Operation
Operating Modes
The UPS status summary screens provide operating notification information, including operating mode.

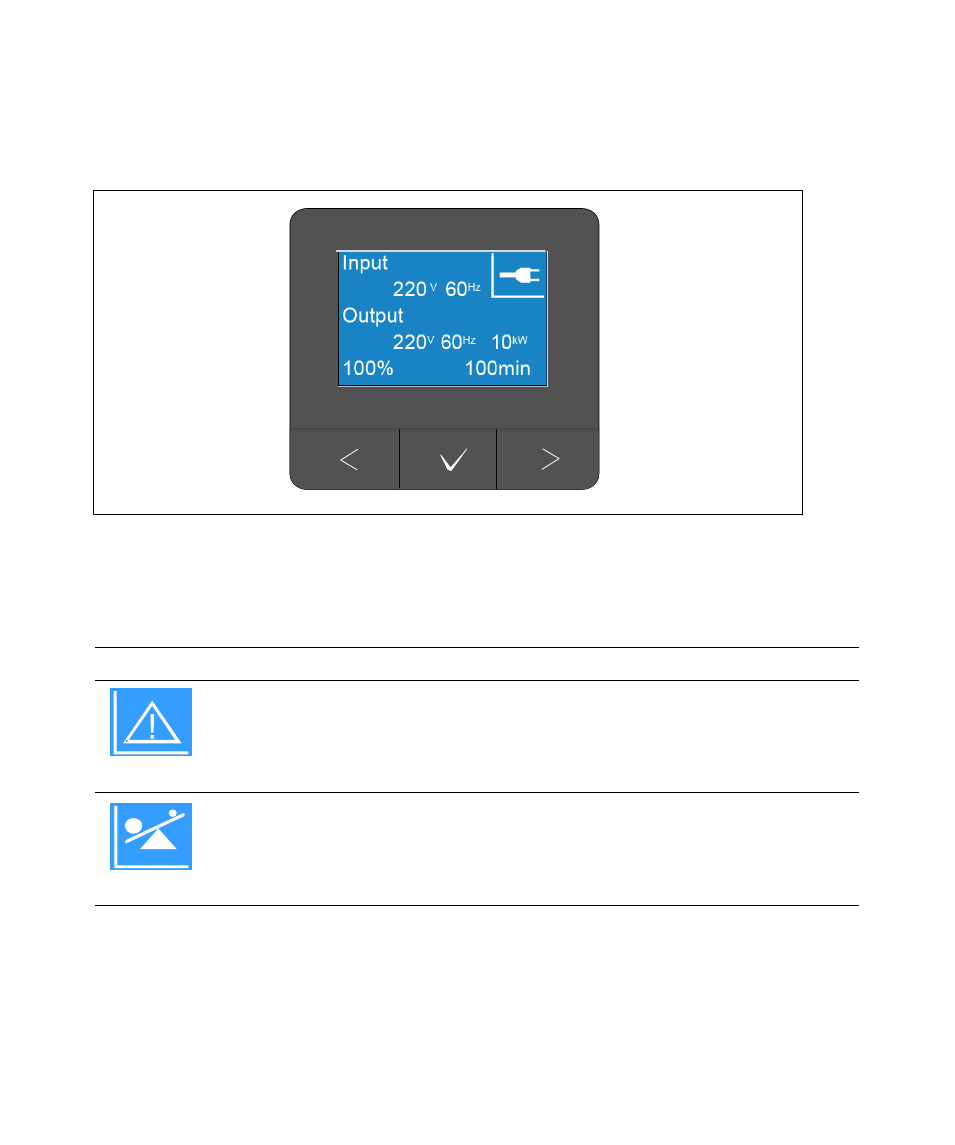

Figure 29. Example UPS Status Summary Screen (Normal Mode)
A unique status icon in the upper right corner of each status summary screen conveys the status of the
UPS. Basic operating modes are described in Table 4.
Table 4. Operating Mode Status Icons
Icon Mode Description
UPS Critical Failure
The UPS experienced a failure and is in Fault mode. Fault mode
is a fail-safe state to protect the unit and the user from unsafe
power output. There should be no power output.
The status icon and background of the icon are flashing by
inverting colors every second.
UPS in Overload Condition
The UPS is overloaded and is in fault mode. Fault mode is a
fail-safe state to protect the unit and the user from unsafe power
output. There should be no power output.
The status icon and background of the icon are flashing by
inverting colors every second.
