Carrier REFRIGERANT R-410A User Manual
Page 3
3

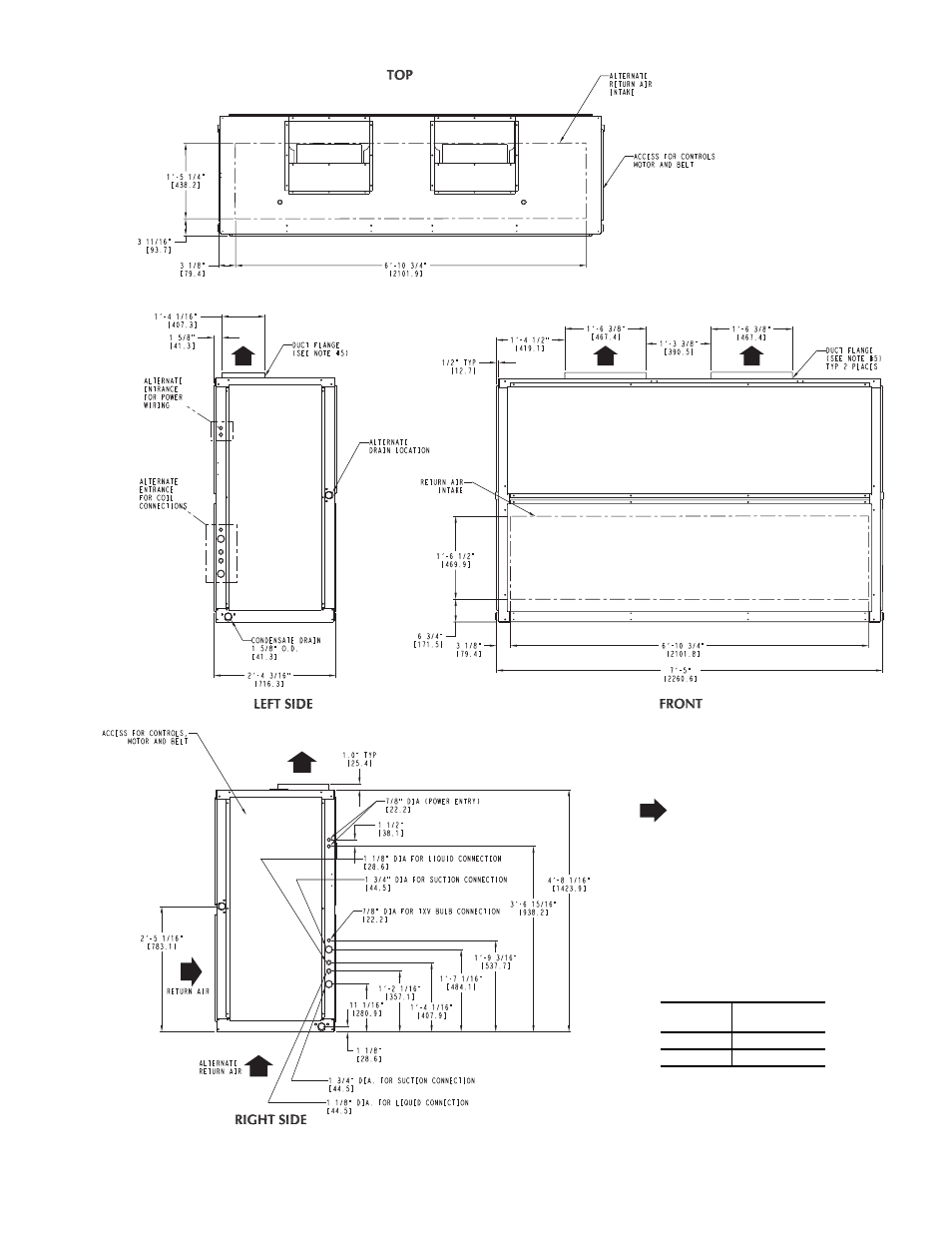

Fig. 2A — Dimensions – Size 25
LEGEND
TXV — Thermostatic Expansion Valve
NOTES:
1. Dimensions in [ ] are in millimeters.
2.
Direction of airflow.
3. Recommended clearance:
• Rear: 3 in. (76 mm)
• Front: 2 ft, 6 in. (762 mm)
• Right Side: 2 ft, 6 in. (762 mm)
• Left Side: 2 ft, 6 in. (762 mm)
• Local codes or jurisdiction may
prevail.
4. Liquid piping not supplied by Carrier.
5. Duct flange is factory-supplied and field-
installed.
UNIT
UNIT WEIGHT
lb (kg)
40RUA*25
730 (331)
40RUS*25
683 (310)
