Replacing Filters — Filters can be removed and in-
stalled from either side of the unit. Install new filters in units
that have one fan as follows:
1. Remove the side access panel (retain screws).
2. Remove the filter retainer clip (see Fig. 25).
3. Remove old filters by lifting and tilting them out of the
filter track. See Fig. 15 and 26. Use the factory-supplied
filter hook to slide filters within reach for removal. The
filter hook is shipped inside the unit in the filter track
4. Reverse the procedure to install new filters.

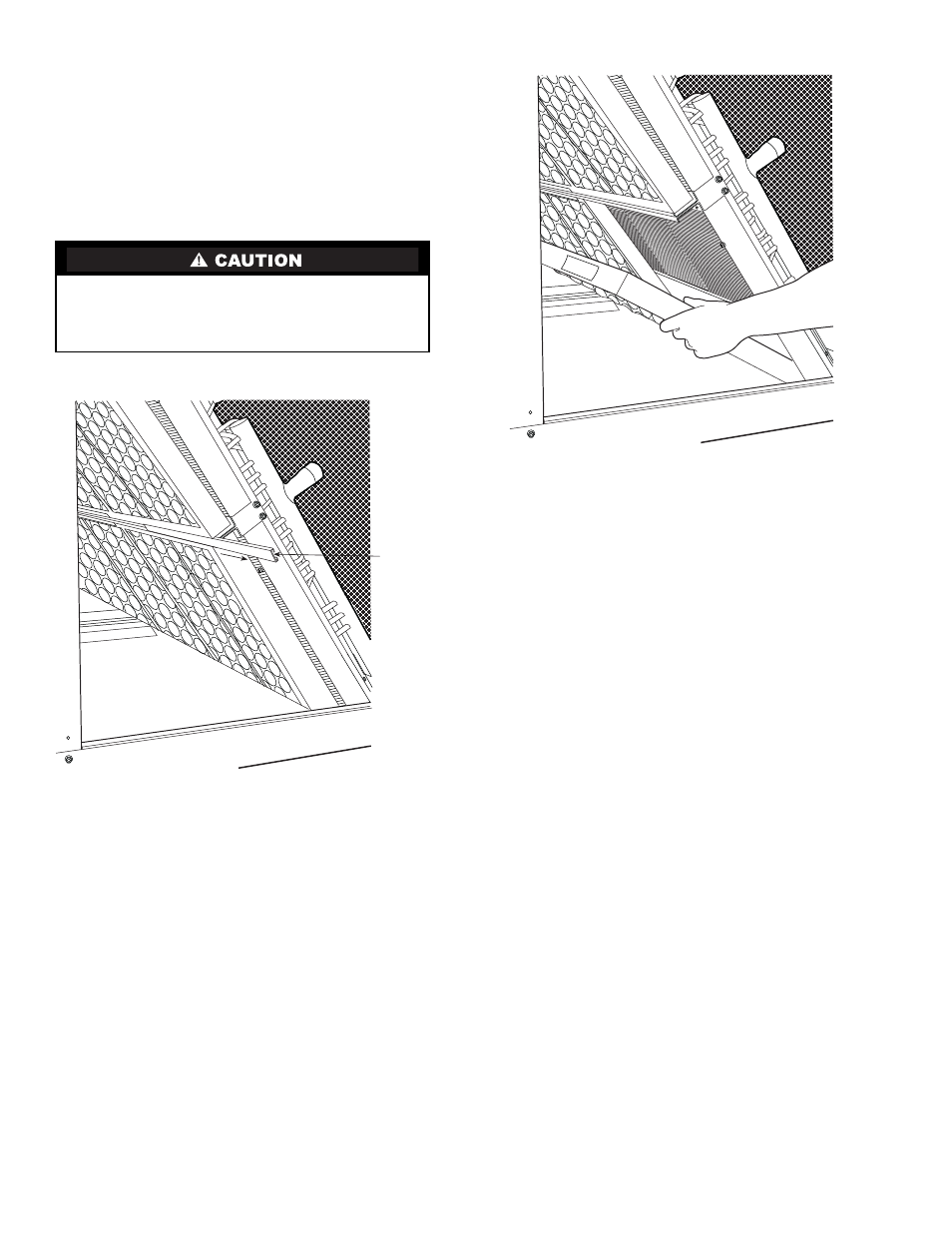

Fig. 25 — Remove Filter Retainer Clip
Fig. 26 — Filter Removal/Replacement
UNIT OPERATION HAZARD
Failure to follow this caution could cause equipment
damage.
Do not operate unit without air filters.
FILTER
RETAINE
CLIP
SLIDE
