Power Supply and Wiring —

Check the unit data

plate to ensure that available power supply matches electrical
characteristics of the unit. Provide a disconnect switch with an
integrated lock-out feature of size required to provide adequate
fan motor starting current. See Tables 4-6 for unit electrical
data.

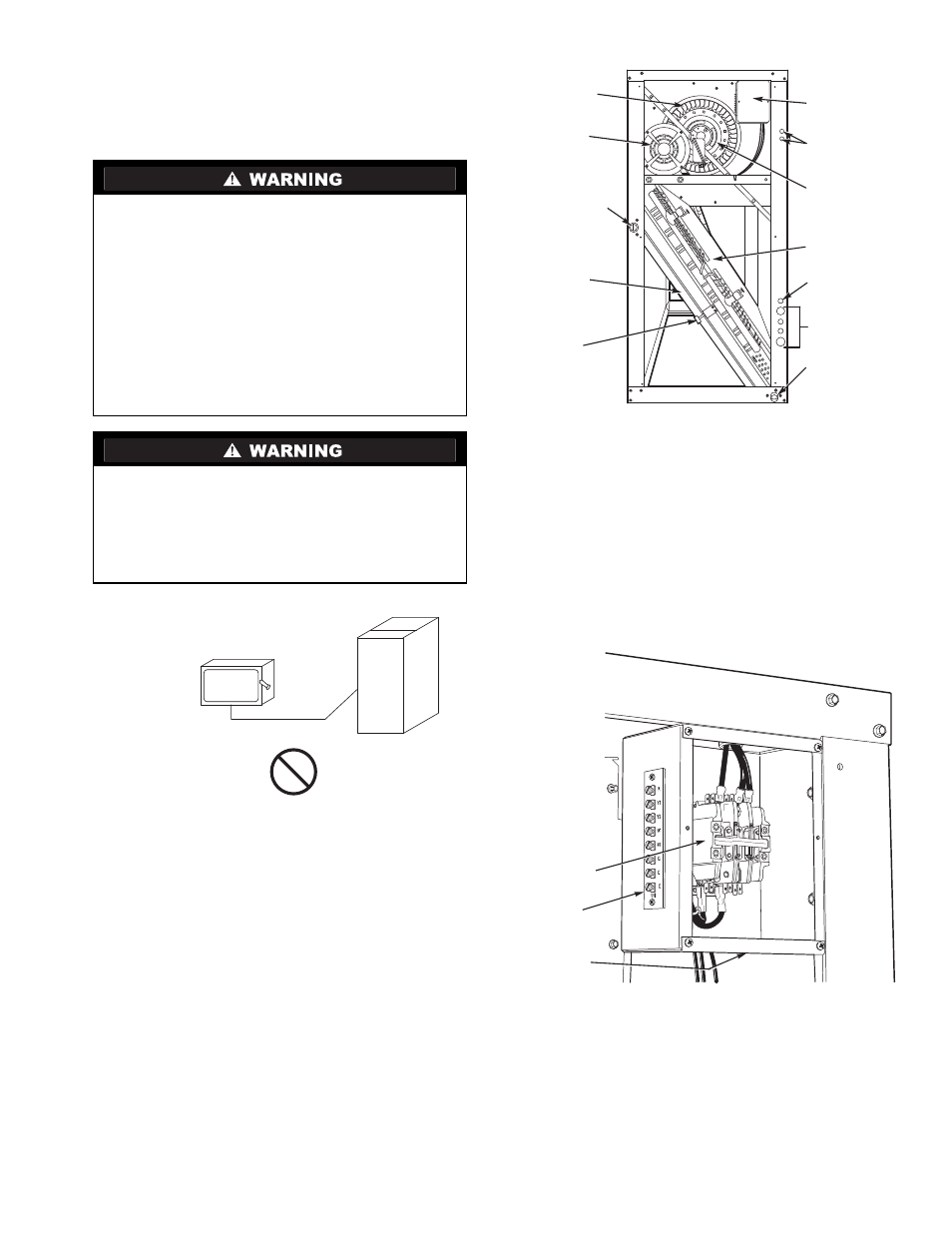

Fig. 14 — Disconnect Switch and Unit

Install disconnect switch and power wiring in accordance with
all applicable local codes. See Fig. 15-17 and the unit label
diagram. Connect power wiring with

-in. ring terminal.

Fig. 15 — Wiring and Service Access

(Side Panel Removed)

Fan motors are factory-installed on all units. Indoor-fan
contactors are located in the fan contactor box behind the side
access panel (see Fig. 15 and 16). Wire the thermostat to the
24-v control circuit terminal block located in the side of the fan
contactor control box, according to Fig. 17 or the unit label
diagram. If the air handler is part of a split system, complete the
wiring from the condensing unit to the thermostat shown in
Fig. 17.

Fig. 16 — Fan Contactor Box and Terminal Block

(Cover Removed) (Typical)
