PRELIMINARY CY14B101P
Document #: 001-44109 Rev. *B Page 4 of 32

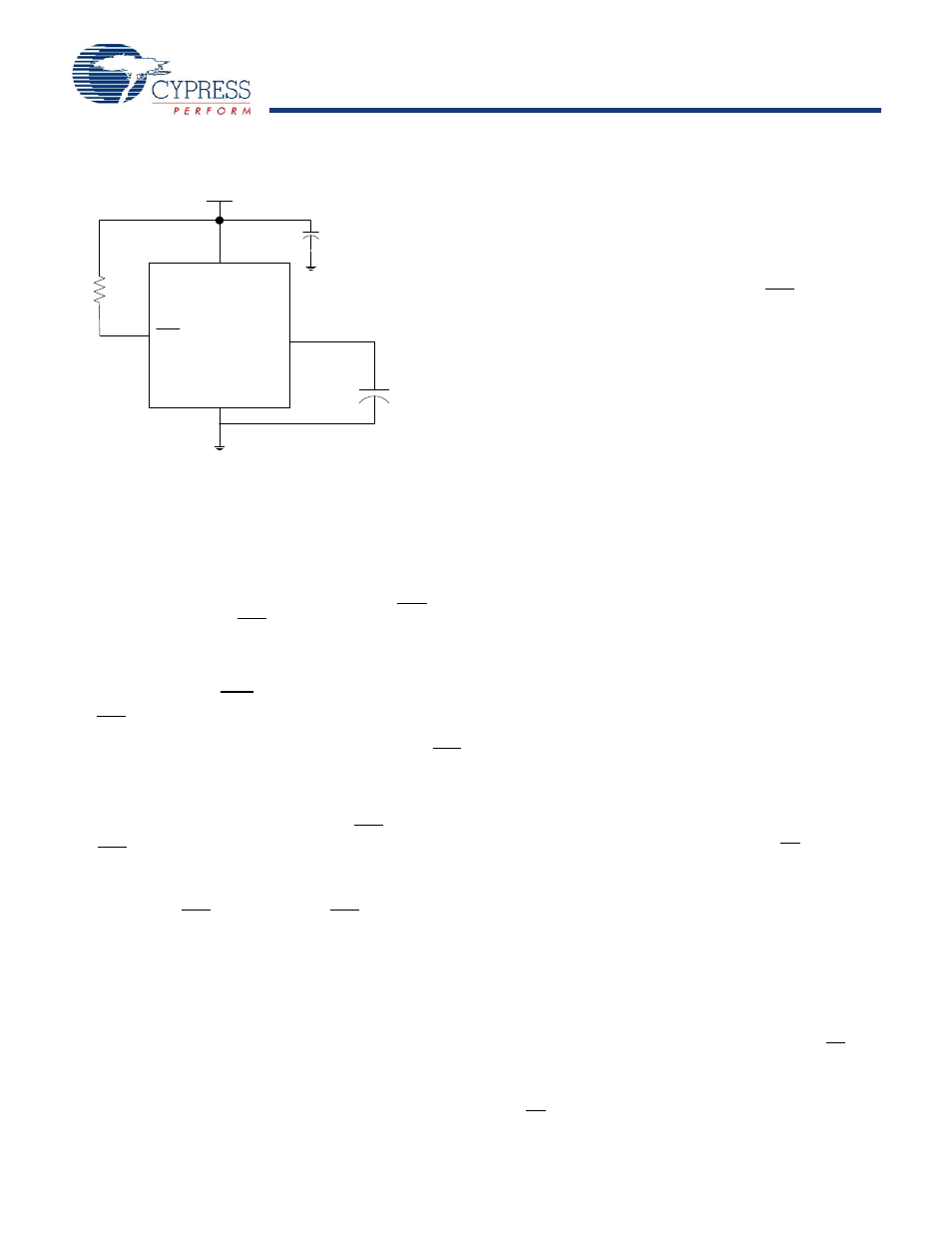

Figure 2. AutoStore Mode
Software Store Operation
Software Store allows the user to trigger a STORE operation
through a special SPI instruction. This operation is initiated
irrespective of whether a write has been performed since last nv
operation.
A STORE cycle takes t
STORE
time to complete, during which all
the memory accesses to nvSRAM are inhibited. The RDY bit of
the Status register or the HSB pin may be polled to find the
Ready/Busy status of the nvSRAM. After the t
STORE
cycle time
is completed, the SRAM is activated again for read and write
operations.
Hardware Store and HSB pin Operation
The HSB pin in CY14B101P is used to control and acknowledge
STORE operations. If no STORE/RECALL is in progress, this pin
can be used to request a Hardware Store cycle. When the HSB
pin is driven LOW, the CY14B101P conditionally initiates a
STORE operation after t
DELAY
duration. An actual STORE cycle
starts only if a write to the SRAM has been performed since the
last STORE or RECALL cycle. Reads and Writes to the memory
are inhibited for t
STORE
duration or as long as HSB pin is LOW.
The HSB pin also acts as an open drain driver that is internally
driven LOW to indicate a busy condition, when a STORE cycle
(initiated by any means) or Power up Recall is in progress. Upon
completion of the STORE operation, CY14B101P remains
disabled until the HSB
pin returns HIGH. HSB pin must be left
unconnected if not used.
RECALL Operation
A RECALL operation transfers the data stored in the nonvolatile
Quantum Trap elements to the SRAM. In CY14B101P, a
RECALL may be initiated in two ways: Hardware Recall, initiated
on power up; and Software Recall, initiated by a SPI RECALL
instruction.
Internally, RECALL is a two step procedure. First, the SRAM data
is cleared. Next, the nonvolatile information is transferred into the
SRAM cells. All memory accesses are inhibited while a RECALL
cycle is in progress. The RECALL operation in no way alters the
data in the nonvolatile elements.
Hardware Recall (Power Up)
During power up, when V
CC
crosses V
SWITCH
, an automatic
RECALL sequence is initiated which transfers the content of
nonvolatile memory on to the SRAM.
A Power Up Recall cycle takes t
FA
time to complete and the
memory access is disabled during this time. HSB pin is used to
detect the Ready status of the device.
Software Recall
Software Recall allows the user to initiate a RECALL operation
to restore the content of nonvolatile memory on to the SRAM. In
CY14B101P, this can be done by issuing a RECALL instruction
in SPI.
A Software Recall takes t
RECALL
to complete during which all
memory accesses to nvSRAM are inhibited. The controller must
provide sufficient delay for the RECALL operation to complete
before issuing any memory access instructions.
Disabling and Enabling AutoStore
If the application does not require the AutoStore feature, it can
be disabled in CY14B101P by using the ASDISB instruction. If
this is done, the nvSRAM does not perform a STORE operation
at power down.
AutoStore can be re-enabled by using the ASENB instruction.
However, these operations are not nonvolatile and if the user
needs this setting to survive power cycle, a STORE operation
must be performed following Autostore Disable or Enable
operation.
Note CY14B101P comes from the factory with AutoStore
Enabled.
Note If AutoStore is disabled and V
CAP
is not required, it is
recommended that the V
CAP
pin is left open. V
CAP
pin must
never be connected to GND. Power Up Recall operation cannot
be disabled in any case.
Serial Peripheral Interface
SPI Overview
The SPI is a four-pin interface with Chip Select (CS), Serial Input
(SI), Serial Output (SO), and Serial Clock (SCK) pins.
CY14B101P provides serial access to nvSRAM through SPI
interface. The SPI bus on CY14B101P can run at speeds up to
40 MHz for all instructions except RDRTC which runs at 25 MHz.
The SPI is a synchronous serial interface which uses clock and
data pins for memory access and supports multiple devices on
the data bus. A device on SPI bus is activated using the Chip
Select pin.
The relationship between chip select, clock, and data is dictated
by the SPI mode. CY14B101P supports SPI modes 0 and 3. In
both these modes, data is clocked into the nvSRAM on the rising
edge of SCK starting from the first rising edge after CS goes
active.
The SPI protocol is controlled by opcodes. These opcodes
specify the commands from the bus master to the slave device.
After CS is activated the first byte transferred from the bus
0.1uF
Vcc
10
kOh
m
V
CAP
Vcc
CS V
CAP
V
SS
