Rack Installation Guide
17
Attaching the Cable-Management Arm
To attach the cable-management arm:
1 Connect the top release latch on the cable-management arm to the tab on the cable tray
(see Figure 1-8).
2 Connect the bottom release latch on the cable-management arm to the tab on the outer slide assembly
(see Figure 1-8).

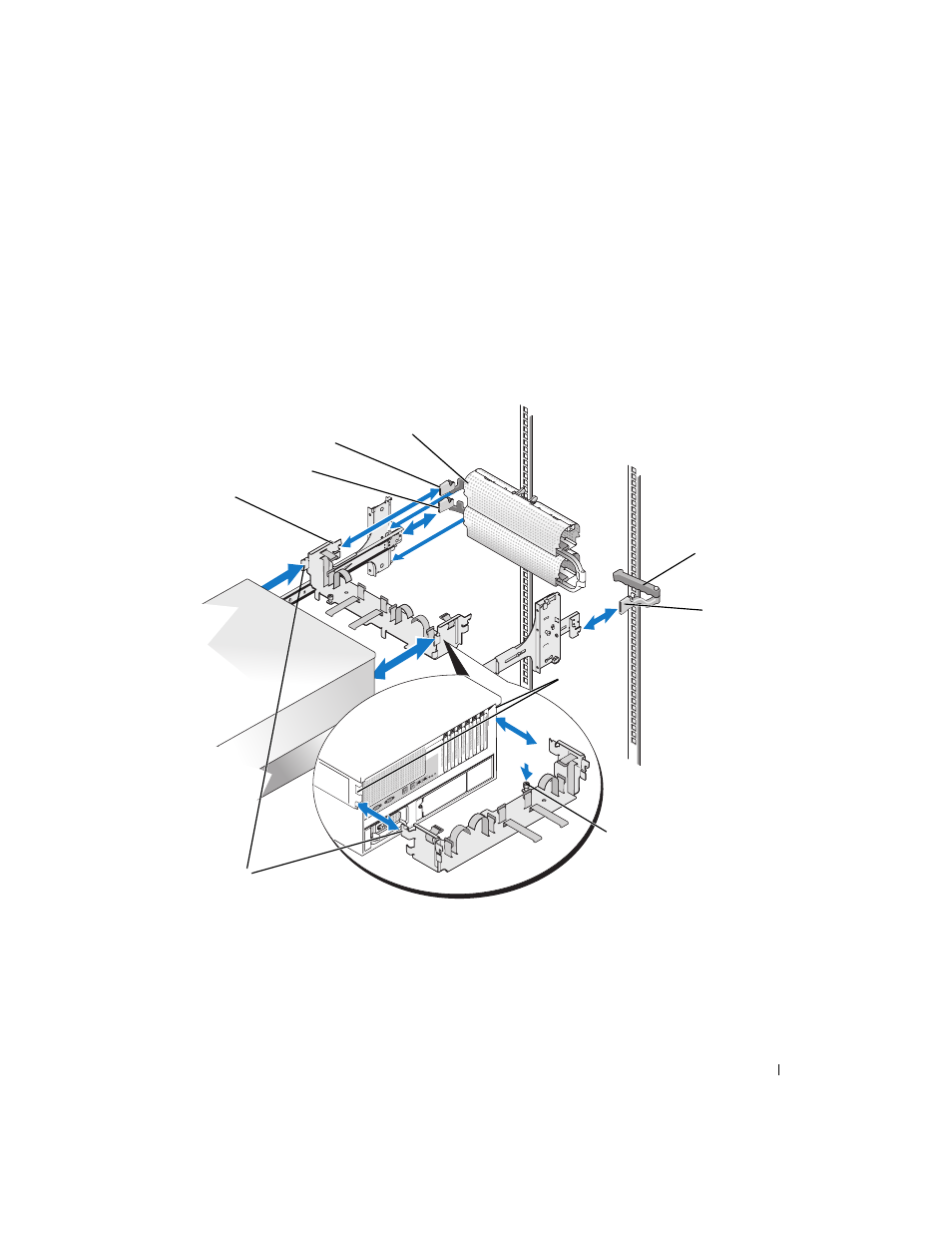

Figure 1-8. Cable Management
1 tab slots on system 2 metal tabs (attaches cable
tray to system) 3 captive thumbscrew
4 metal tabs (attaches cable tray
to cable-management arm) 5 bottom release latch on cable-
management arm 6 top release latch on cable-
management arm
7 cable-management arm 8 cable-management arm
retainer 9 release latch on cable-
management arm retainer
4
back of
system
1
7
back of rack
5
6
9
2
3
8
