Rack Installation Guide
13

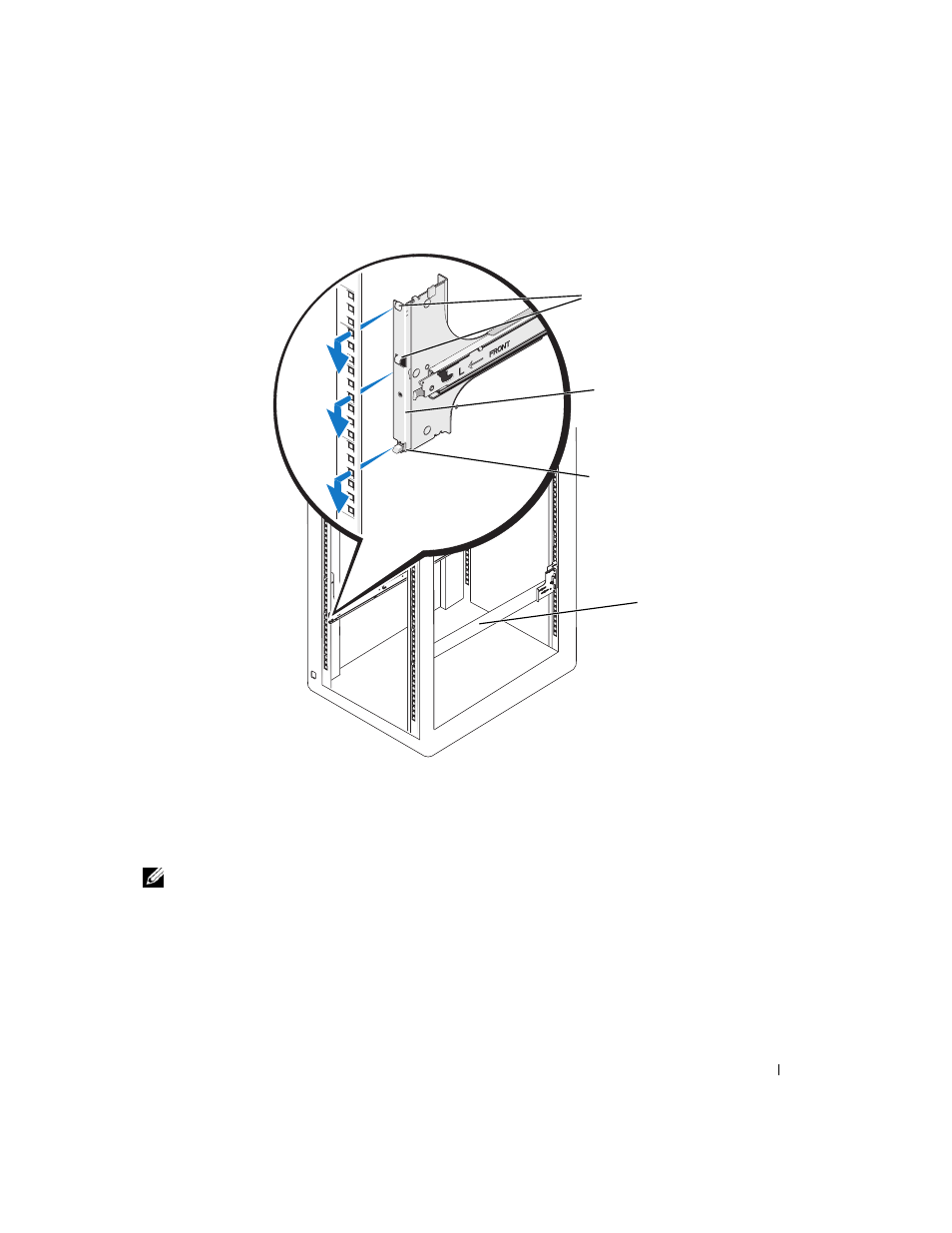

Figure 1-5. Installing the RapidRails
Installing the VersaRails
NOTE:
Ensure that the rotating mounting brackets on the mounting rails are in the VersaRail configuration as
shown in Figure 1-6. See "Configuring the Sliding Rail Assemblies" on page 11.
1 At the front of the rack cabinet, position one of the mounting rails so that the flange fits between the
marks or numbered locations on the vertical rails (see "Marking the Rack" on page 9).
2 Install the 10-32 x 0.5-inch flange-head Phillips screws in the mounting flange’s top hole and the
bottom hole (see Figure 1-6).
3 At the back of the cabinet, pull back on the mounting-bracket flange until the mounting holes align
with their respective holes on the back vertical rail.
1 mounting hooks 2 mounting-bracket flange 3 push button
4 mounting rails
2
1
front of rack
4
3
