14

Rack Installation Guide

4 Install the 10-32 x 0.5-inch flange-head Phillips screws in the back mounting flange’s top and bottom

holes to secure the mounting rail to the back vertical rail.

5 Repeat steps 1 through 4 for the mounting rail on the other side of the rack.

NOTE:

Ensure that the mounting rails are mounted at the same vertical position on both sides of the rack.

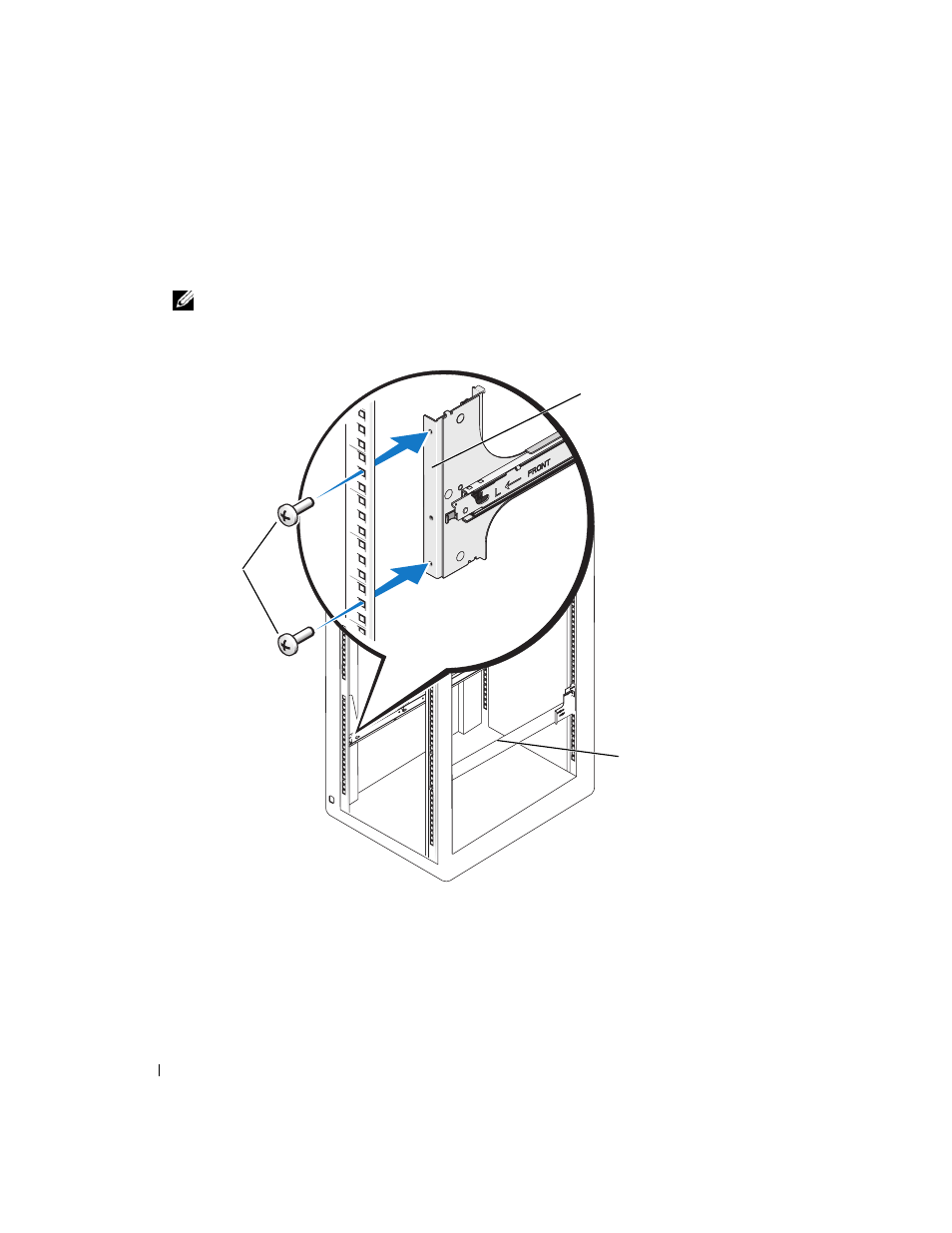

Figure 1-6.

Installing the VersaRails

1

flange-head Phillips screws

2

mounting-bracket flange

3

mounting rails

2

front of rack

3

1
