Rack Installation Guide
1-15

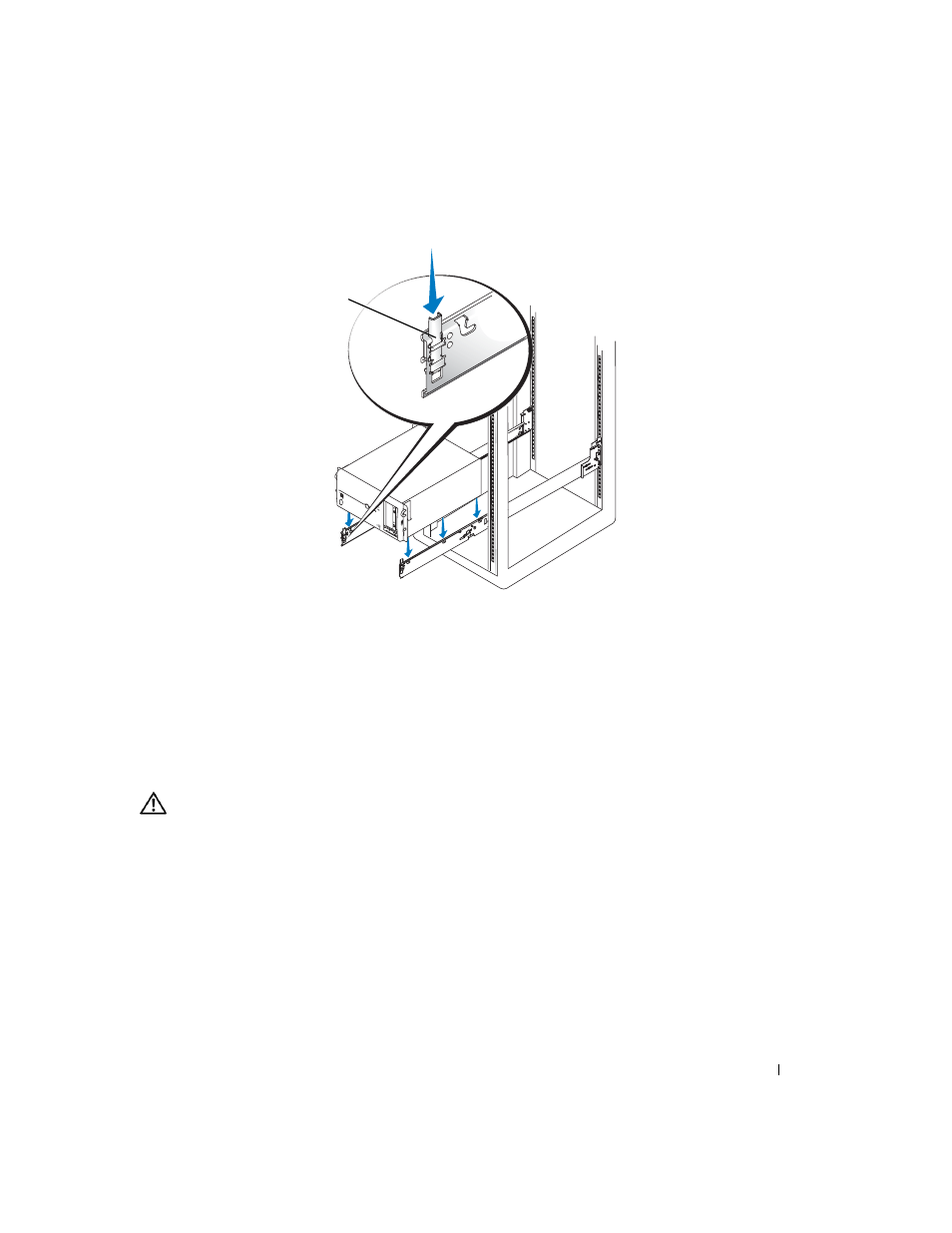

Figure 1-7. Installing the System in the Rack
Installing the Cable-Management Arm
This procedure is performed in two phases. First, install the cable tray into the back of the system
chassis. Next, install the cable-management arm on either side of the cable tray.
Installing the Cable Tray
Attach the cable tray to the system chassis using four of the metal tabs at the bottom of the tray
and two 6-32 x 0.25-inch hex-head Phillips screws (see Figure 1-8).
CAUTION:
The cable tray cannot support the weight of the system. Do not grasp the cable tray when
lifting the system. Lift the system only by the chassis edges.
Securing the Cable-Management Arm
1 Facing the back of the rack cabinet, locate the tab on the end of the slide assembly
(see Figure 1-8).
system-locking mechanism
