Design and specifi cations subject to change without notice

Installation Manual 5850-008

www.baumerprocess.com

we

Product Identifi cation

The label at the product will show the type no. like this:

814x xxxx xxxx xx5 xxxx + xxxx xxxx + xx xx-xxx

CombiTemp no. + FlexTop no. + FlexView/BattTemp no.

The complete confi guration will be referred to as CombiTemp.

A CombiTemp with a type no. with the upmentioned structure is
Ex nA II T4/T5, ATEX II 3G approved in accordance with the current
EU-directives.

Ex- data for the below listed confi gurations

Ø80 housing: FlexTop 2201 / 2211 / 2221 / 2231/FlexView
DIN-B housing: FlexTop 2201 / 2211 / 2221 / 2231

Temperature class

T4:

-20 < T

amb

< 70°C

T5:

-20 < T

amb

< 60°C

The CombiTemp must be installed in accordance with prevailing
guidelines for zone 2 without a barrier.
WARNING: Do not open when energised.

Ex- data for the below listed confi gurations

Ø80 housing: BattTemp

Temperature class

Battery: Energizer Lithium FR6 L91 AA

T4:

-10 < T

amb

< 70 °C

T5:

-10 < T

amb

< 50 °C

Battery: Duracell Alkaline MN1500 LR6 AA

T3:

-10 < T

amb

< 70 °C

T4:

-10 < T

amb

< 60 °C

Warning: Observe battery ambient temperature !!!

The CombiTemp must be installed in accordance with prevailing
guidelines for zone 2.

CAUTION: Replacement of the battery must be done
outside hazardous areas.

The BattTemp is battery supplied and must not be connected to any
external power supply, nor to a 4...20 mA loop circuit.
When the BattTemp is installed in a hazardous area the battery clip
must be mounted. Observe the polarity of the battery.
BattTemp contains no repairable parts and must be replaced as a unit
in case of malfunction. It has no need for preventive maintenance,
except replacement of the battery.

Confi guring by the push buttons is allowed within the hazardous area.

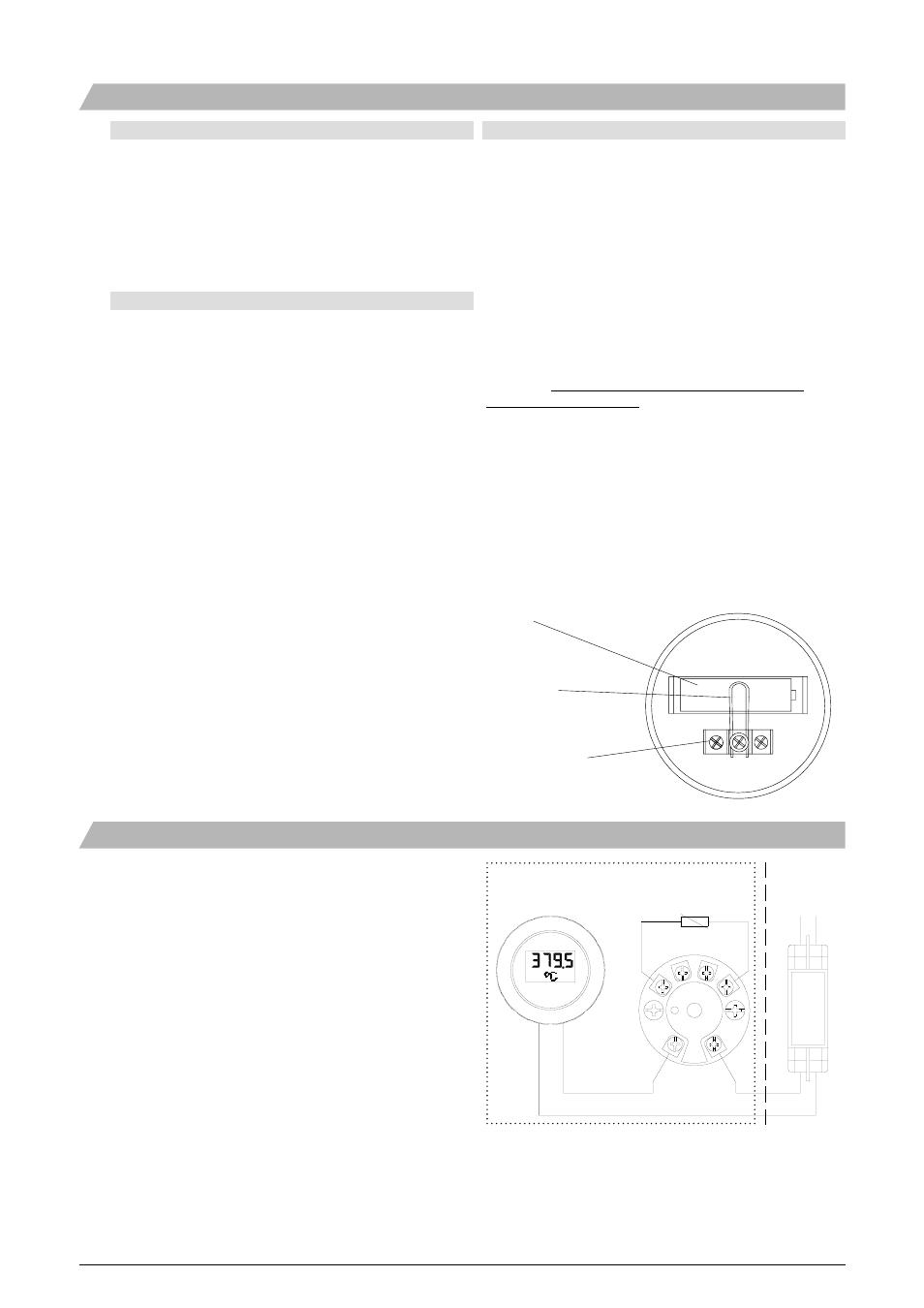

Technical Data, Ex nA II T4/T5, ATEX II 3G Approval

Battery

Battery clip

Terminals
for Pt100 sensor

Electrical Connection

Application

CombiTemp

Gland

Cable diameter

Gland torque

mm

Nm

Ø80 mm housing

M16

3...9

8

DIN-B housing

M20

8...13

6

Warning: If the CombiTemp is to be installed in ambient
temperature exceeding 70°C a proper cable should be installed.

FlexView

FlexTop 2211

Power supply

24 VDC

4...20 mA

- +

+ -

3 4

1 2

2 1

3

RTD

230 Vac

- +

4

5

6

Zone 2

Safe area

CombiTemp
