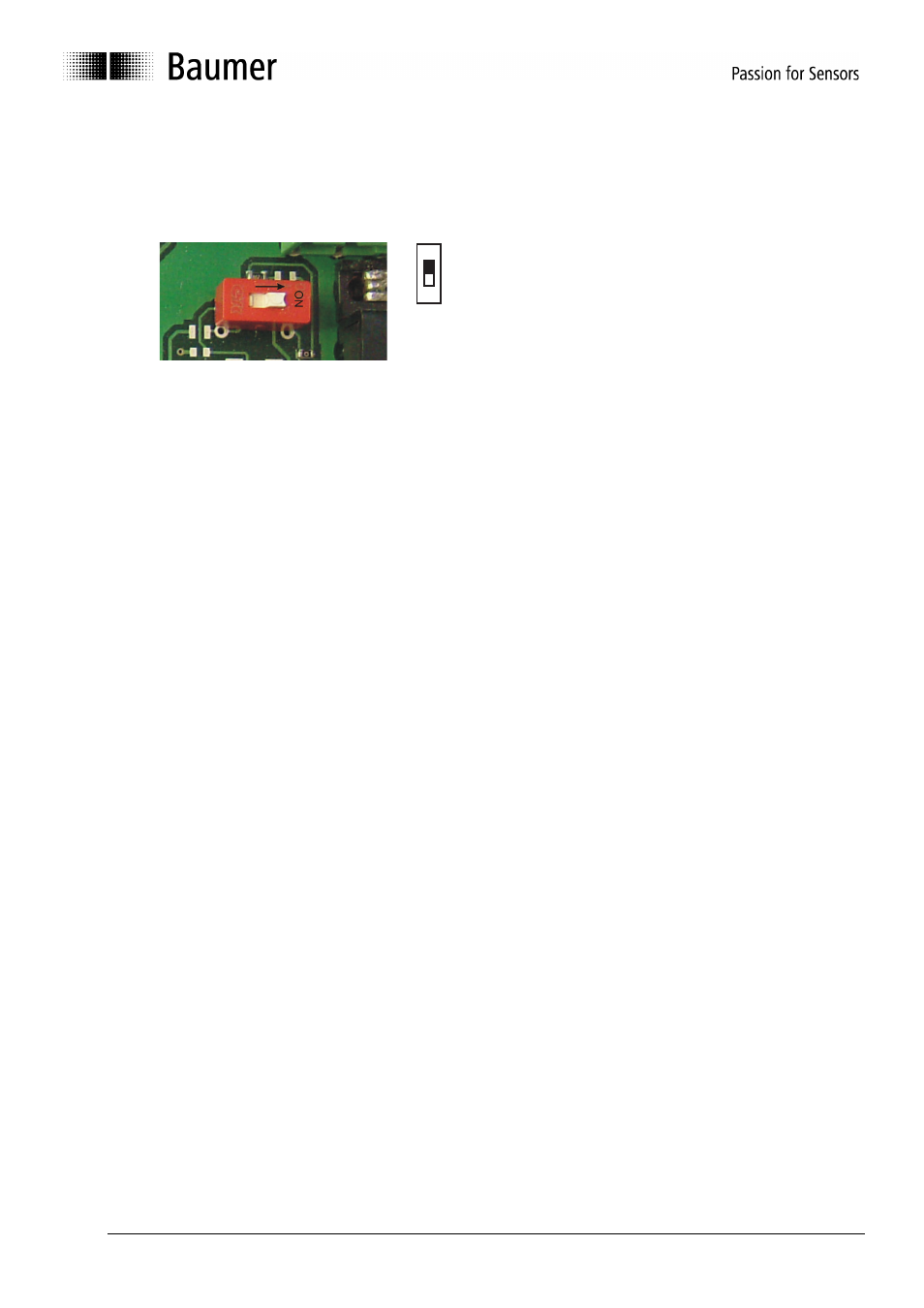

4.3.4 Setting the DeviceNet bus termination
If GK473 DeviceNet is the final device in the bus line the CAN bus must be terminated by resistor that is
activated by setting the one-pole DIP switch to “ON”.
Default :OFF.
ON
1
ON = final user
OFF = user X
4.3.5 EDS
file
For gateway projecting in the DeviceNet project there is an EDS file available for comfortable importation into
the projecting software. (-> Download in the Internet or available as accessory.)
GK473_DN.eds
