Appendix—Technical Specifications (cont.)
120°
100°
110°
90°
A B
C D
F
E
A B A C
A D E F
NXT

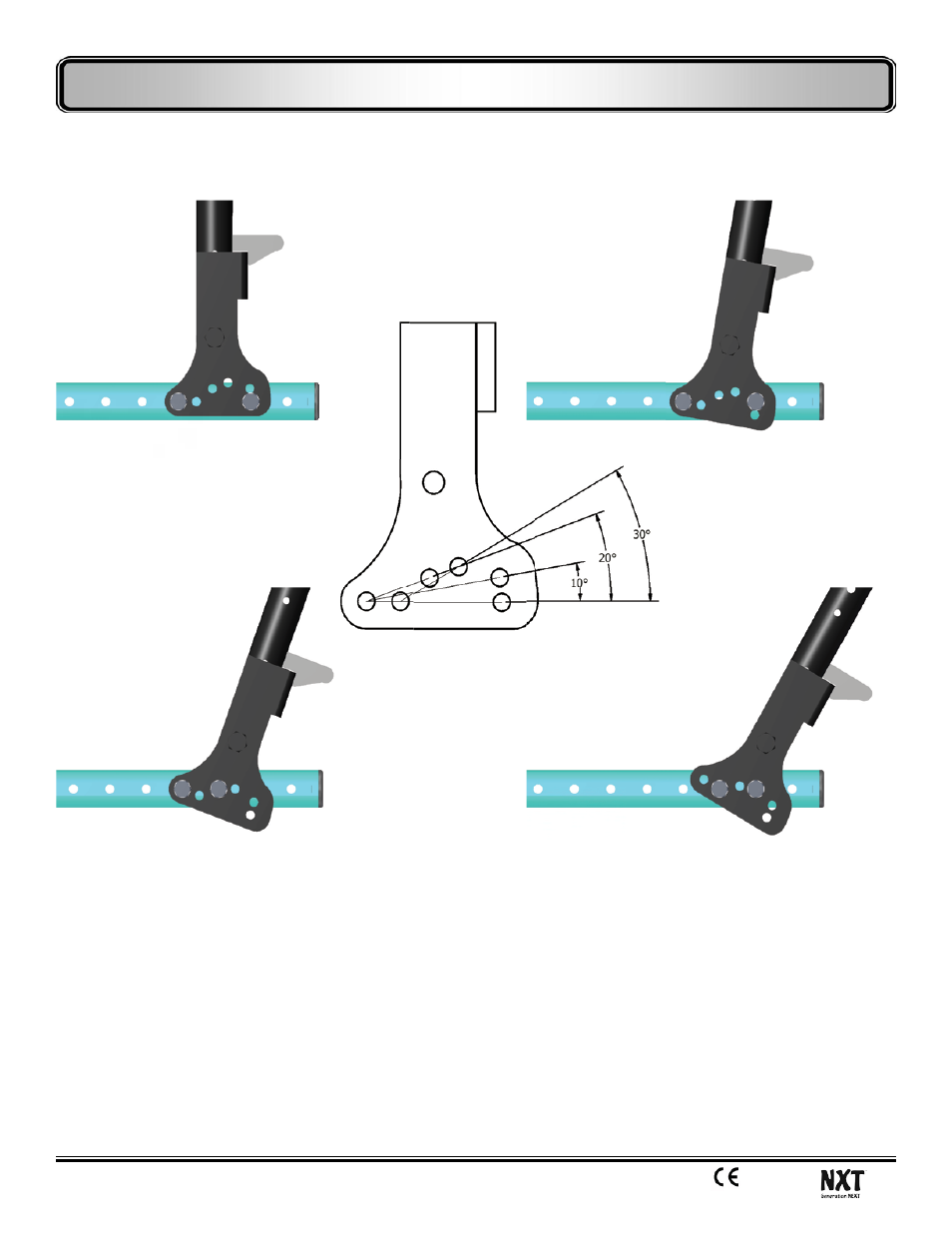

Back Angle Angle Adjustment Matrix
Backpost Mounting Bracket Angle Adjustment Settings
