Humboldt HM-3000.3F Digital MasterLoader User Manual
Page 20
17
Channel Configuration
If you are adding new instrumentation, changing existing instrumentation
or reconfiguring the HM-3000’s channel setup, you need to configure the
channel for use with the devices you have.

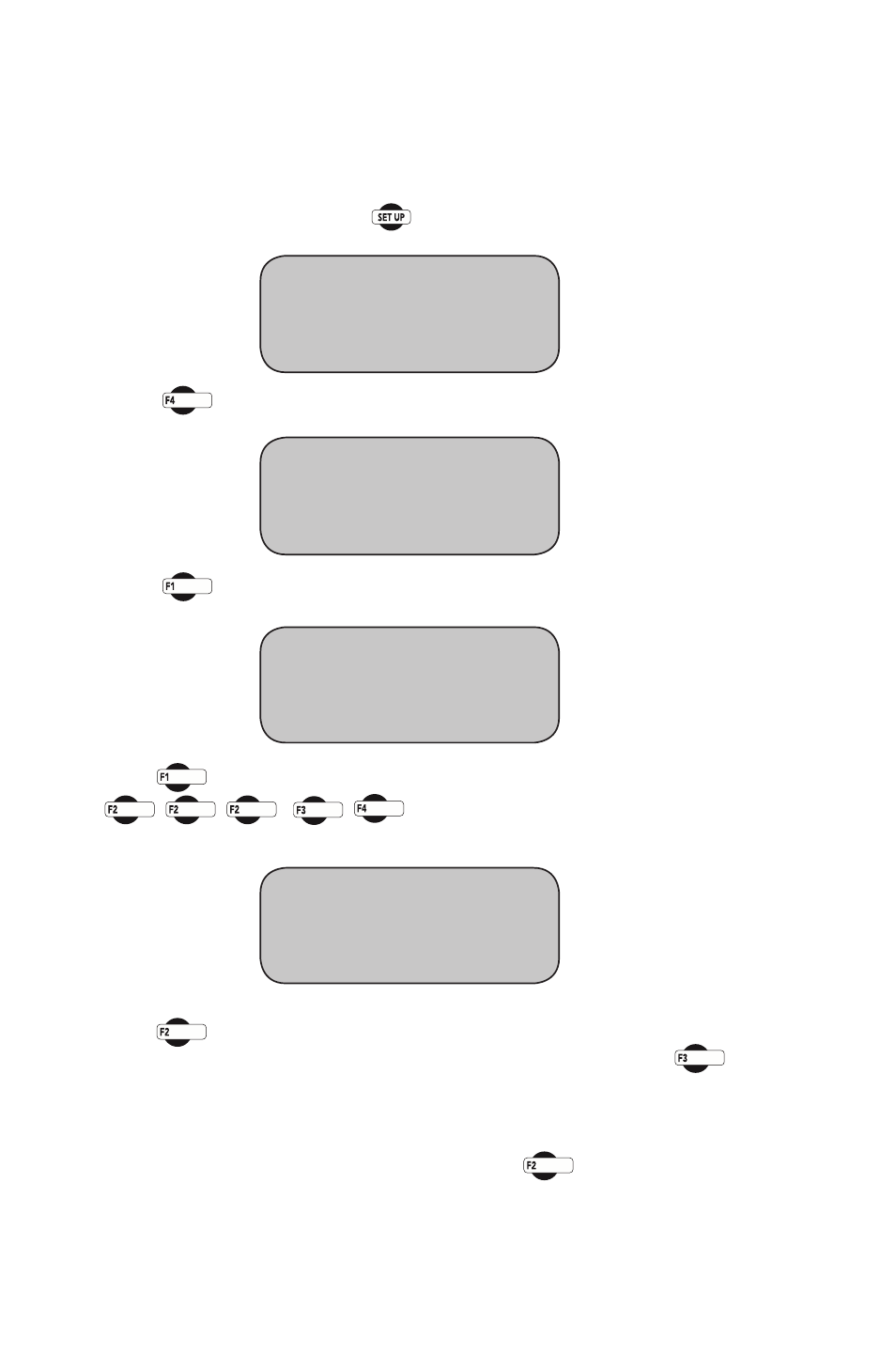

To configure a channel, press
You should see this screen:
Press
you will see this screen:
Press
(ENGINEERING SETUP). You should see this screen:
Press
(CONFIGURATION) You will be asked for a password, enter:
You should see this screen:
Press
(SELECT CHANNEL) to scroll through and choose the channel
you wish to configure. Once you have selected a channel press
(CONFIGURE CHANNEL). You should see this screen:
Naming Channel
From the previous screen, shown above, Press
(NAME) to select the
name you wish to change, press the key until the name you wish to change
is indicated. You should see this screen:
* REVIEW LAST TEST
* RUN TEST
* MORE SETUP
* ENGINEERING SETUP
* SENSOR LIMITS OFF
* RAW_DATA
* MORE SETUP
* CONFIGURATION
* CALIBRATION
* LOGGING INTERVAL
CONFIGURATION screen
* SELECT CHANNEL "CHI"
* CONFIGURE CHANNEL
* CONFIGURE TEST
