Operation – Humboldt HM-3000.3F Digital MasterLoader User Manual
Page 13
Operation
Power Switch
The Power Switch is located in the back panel on the rear of the machine
above the electrical cord inlet. Also, located between the electrical cord
inlet and the Power Switch is the Fuse Compartment. The HM-3000 uses a
10 amp fuse. To begin operation, press the Power Switch.

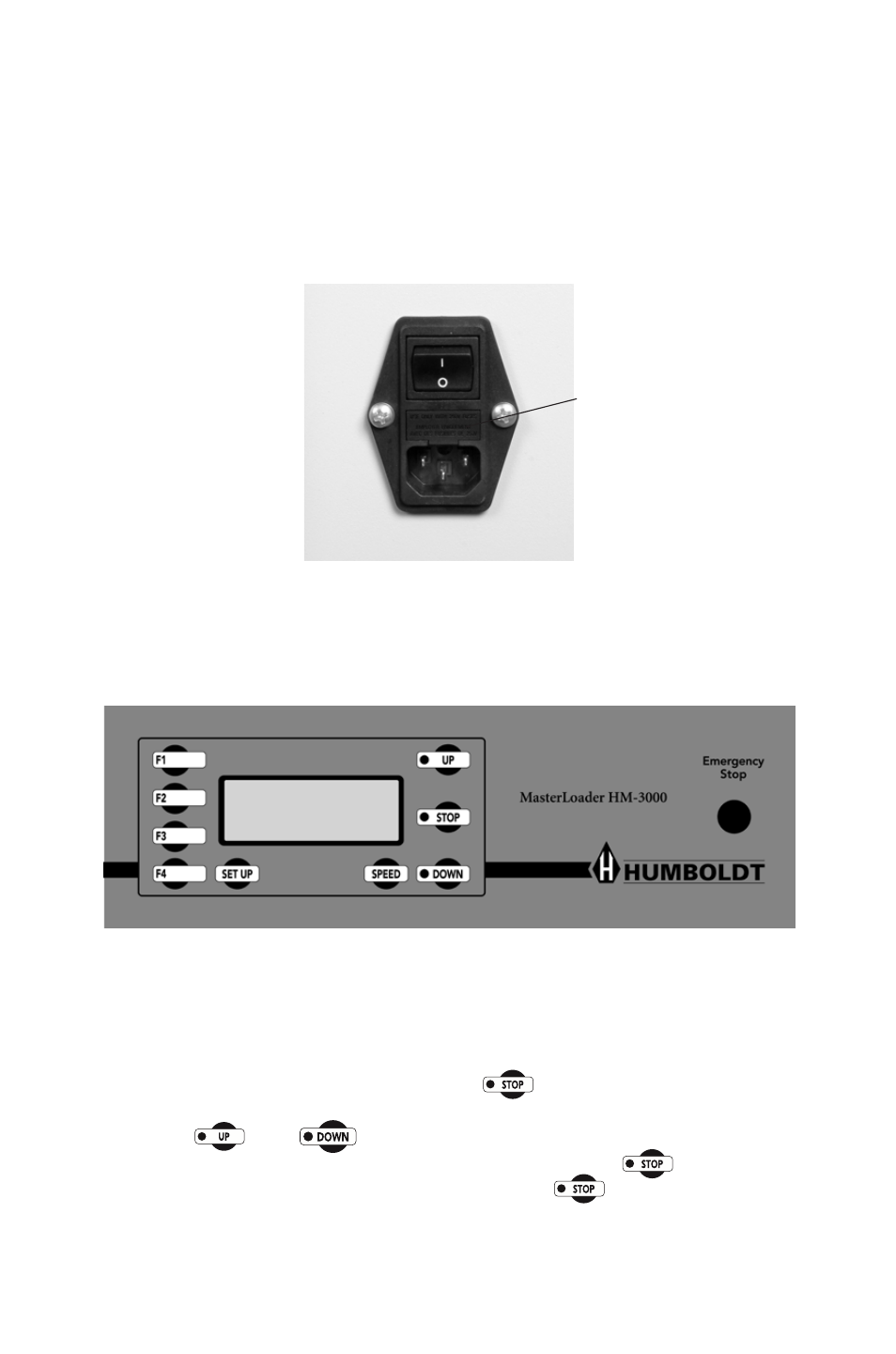

Figure 10. HM-3000 Power Switch, Electrical Cord Inlet and Fuse
Compartment.
Figure 11. HM-3000 Front Control Panel and Emergency Stop Button
Key Functions
Fuse Compartment.
Emergency Stop
The emergency stop button can be used to stop platen movement quickly.
Pressing the button will stop platen travel. Once the emergency button has
been pushed the operator must push the
button and pull out the
emergency stop button to clear the emergency stop. Once this has been
done the
and
buttons can then be used again. If the operator
pulls out the emergency stop button before pressing the
button the
machine will emit a high pitched sound until the
button has been
pressed.
